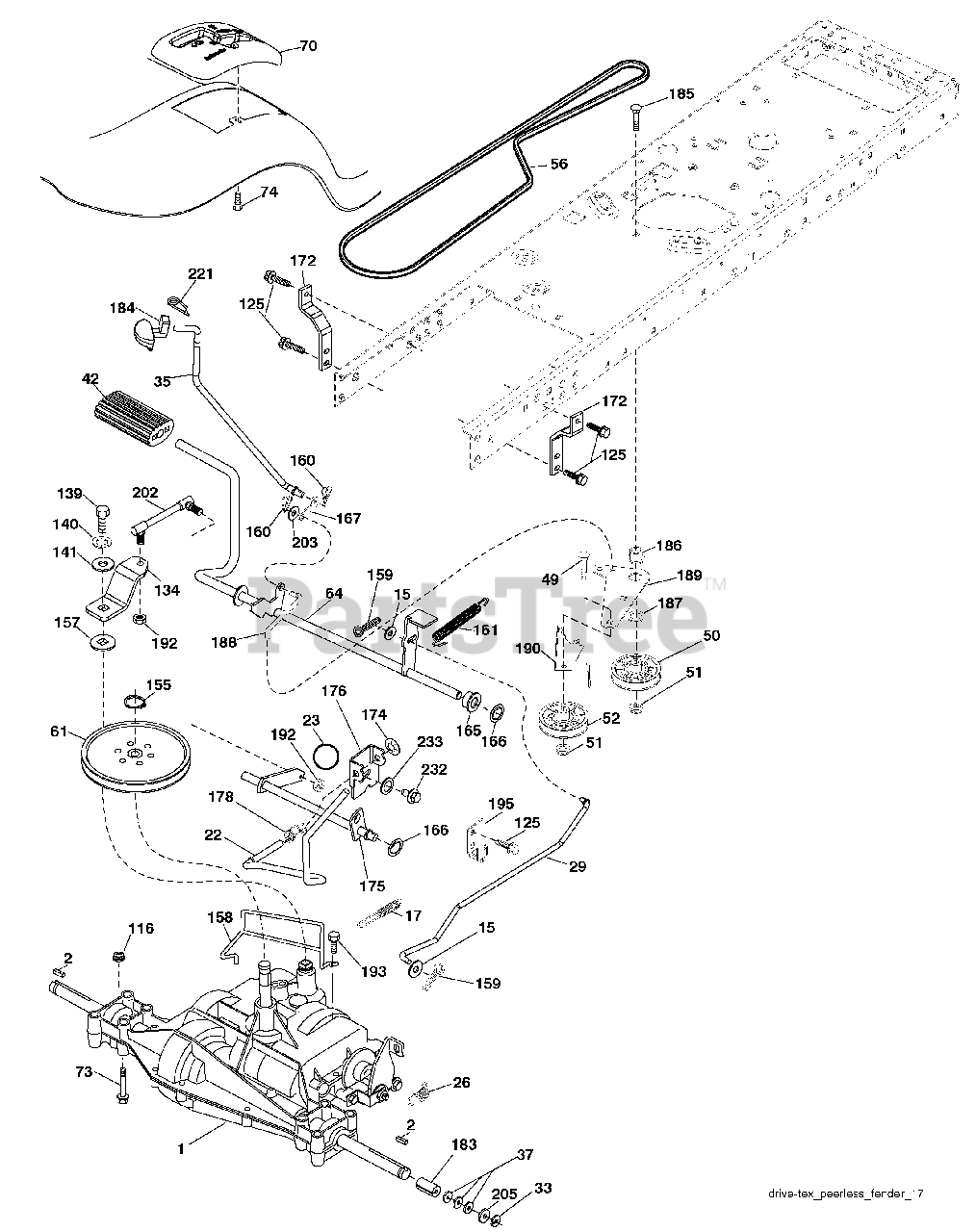

PXT 12530 (960460008-00) - Poulan XT Lawn Tractor (2009-06) Drive Parts Diagram

XT Lawn Tractor

Drive Parts Diagram

  • Title
1

Transaxle, Peerless 206-565

Note: (Order Parts from Transaxle Mfgr.)

$

$

Not available

2

Electrolux/AYP 123583X

Key Square
(Superseded to 532123583)

$4.99

$

In Stock, only 4 left!

0

15

Electrolux/AYP 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 197297

Spring, Brake
(Superseded to 532197297)

$9.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 197660

Rod Shift
(Superseded to 532197660)

$182.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 106933X

Knob
(Superseded to 532106933)

$7.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 197455

Spring Brake RTN
(Superseded to 532197455)

$4.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 197267

Rod, Brake
(Superseded to 532197267)

$30.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 12000001

Ring E
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 197722

Rod, Brake, Park
(Superseded to 532197722)

$39.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 121749X

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 8883R

Cover, Foot Pedal
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 72110614

Bolt
(Superseded to 872110614)

$4.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 194327

Pulley Idler Flat
(Superseded to 532194327)

$20.99

$

In Stock, Qty 16

0

51

Murray 73900600

Lock Nut 3/8-16

$

$

Not available

52

Electrolux/AYP 194326

Idler V-Groove
(Superseded to 532194326)

$22.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 138255

V-Belt, Drive
(Superseded to 532138255)

$39.99

$

In Stock, Qty 5

0

61

Electrolux/AYP 165999

Pulley Transaxle
(Superseded to 584450701)

$60.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 196200

Shaft Asm. Pedal Brake Control
(Superseded to 532196200)

$56.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 193225X428

Console
(Superseded to 532411290)

$40.99

$

In Stock, only 1 left!

0

73

Electrolux/AYP 74490544

Bolt 5/16-18 Gr. 5
(Superseded to 874490544)

$4.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 142432

Screw 1/4 x 1/2
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

116

Electrolux/AYP 73900500

Nut Lock Hex Flange 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

125

Electrolux/AYP 17000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

134

Electrolux/AYP 197857

Arm Shift
(Superseded to 532197857)

$7.99

$

Usually ships in 3-10 days

0

139

Electrolux/AYP 74550412

Bolt 1/4-20 unf Gr. 8 w/Patch
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

140

Electrolux/AYP 10040400

Washer Lock Hvy Helical 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

141

Electrolux/AYP 19091210

Washer 9/32 x 3/4 x 10 Ga.
(Superseded to 819091210)

$4.99

$

In Stock, only 1 left!

0

155

Electrolux/AYP 12000028

Ring Retainer
(Superseded to 812000028)

$7.49

$

In Stock, Qty 7

0

157

Electrolux/AYP 105701X

Washer Plate Shf
(Superseded to 532105701)

$6.49

$

Usually ships in 3-10 days

0

158

Electrolux/AYP 194352

Keeper T/A
(Superseded to 593853501)

$10.99

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 76020412

Pin Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

160

Electrolux/AYP 169484

Retainer Clip
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

161

Electrolux/AYP 105709X

Spring, Return, Clutch
(Superseded to 532105709)

$11.99

$

Usually ships in 3-10 days

0

165

Electrolux/AYP 196212

Busing Shaft Brake Hand Control
(Superseded to 532196212)

$6.99

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 428305

Nut Push .625
(Superseded to 532429164)

$6.49

$

In Stock, only 2 left!

0

167

Electrolux/AYP 405257

Latch Brake Parking
(Superseded to 532405257)

$4.99

$

Usually ships in 3-10 days

0

172

Electrolux/AYP 197657

Strap Torque LH
(Superseded to 532197657)

$6.49

$

Usually ships in 3-10 days

0

174

Electrolux/AYP 197289

Nut Push
(Superseded to 532197289)

$6.49

$

In Stock, only 2 left!

0

175

Electrolux/AYP 197858

Shaft Asm Shift
(Superseded to 532197858)

$39.99

$

Usually ships in 3-10 days

0

176

Electrolux/AYP 196214

Arm Clevis Rod Shift
(Superseded to 532196214)

$7.99

$

Usually ships in 3-10 days

0

178

Electrolux/AYP 197456

Spring Shift
(Superseded to 532197456)

$6.49

$

Usually ships in 3-10 days

0

183

Electrolux/AYP 137057

Spacer, Axle
(Superseded to 532137057)

$7.49

$

In Stock, only 3 left!

0

184

Electrolux/AYP 198403X505

Handle Parking Brake
(Superseded to 532411283)

$

$

Not available

185

Electrolux/AYP 72110622

Bolt
(Superseded to 872110622)

$4.99

$

In Stock, Qty 10

0

186

Electrolux/AYP 194321

Spacer Retainer
(Superseded to 532194321)

$9.49

$

In Stock, Qty 9

0

187

Electrolux/AYP 19133210

Washer
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

188

Electrolux/AYP 194323

Link Clutch Ground Drive
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Electrolux/AYP 194317

Bellcrank Ground Drive
(Superseded to 532194317)

$

$

Not available

190

Electrolux/AYP 194318

Keeper Bellcrank Ground Drive
(Superseded to 532194318)

$8.99

$

In Stock, only 2 left!

0

192

Electrolux/AYP 150360

Nut Lock Center 1/4-28
(Superseded to 532150360)

$

$

Not available

193

Electrolux/AYP 17060512

Screw 5/16-18 x 3/4
(Superseded to 583607701)

$7.49

$

In Stock, only 2 left!

0

195

Electrolux/AYP 197332

Bracket Brake Rod
(Superseded to 532197332)

$5.99

$

Usually ships in 3-10 days

0

202

Electrolux/AYP 197859

Link Shift
(Superseded to 597079401)

$9.49

$

Usually ships in 3-10 days

0

203

Electrolux/AYP 19111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

205

Electrolux/AYP 121748X

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

221

Electrolux/AYP 403187

Retainer Spring Clip Handle
(Superseded to 532403187)

$6.49

$

In Stock, only 2 left!

0

232

Electrolux/AYP 74780716

Bolt 7/16-14 x 1 Gr. 5
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

233

Electrolux/AYP 405296

Washer Serrated
(Superseded to 532405296)

$6.49

$

Usually ships in 3-10 days
