PX 46 Z (967702601-00) - Poulan Pro 46" Zero-Turn Mower (2018-01) ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

46" Zero-Turn Mower

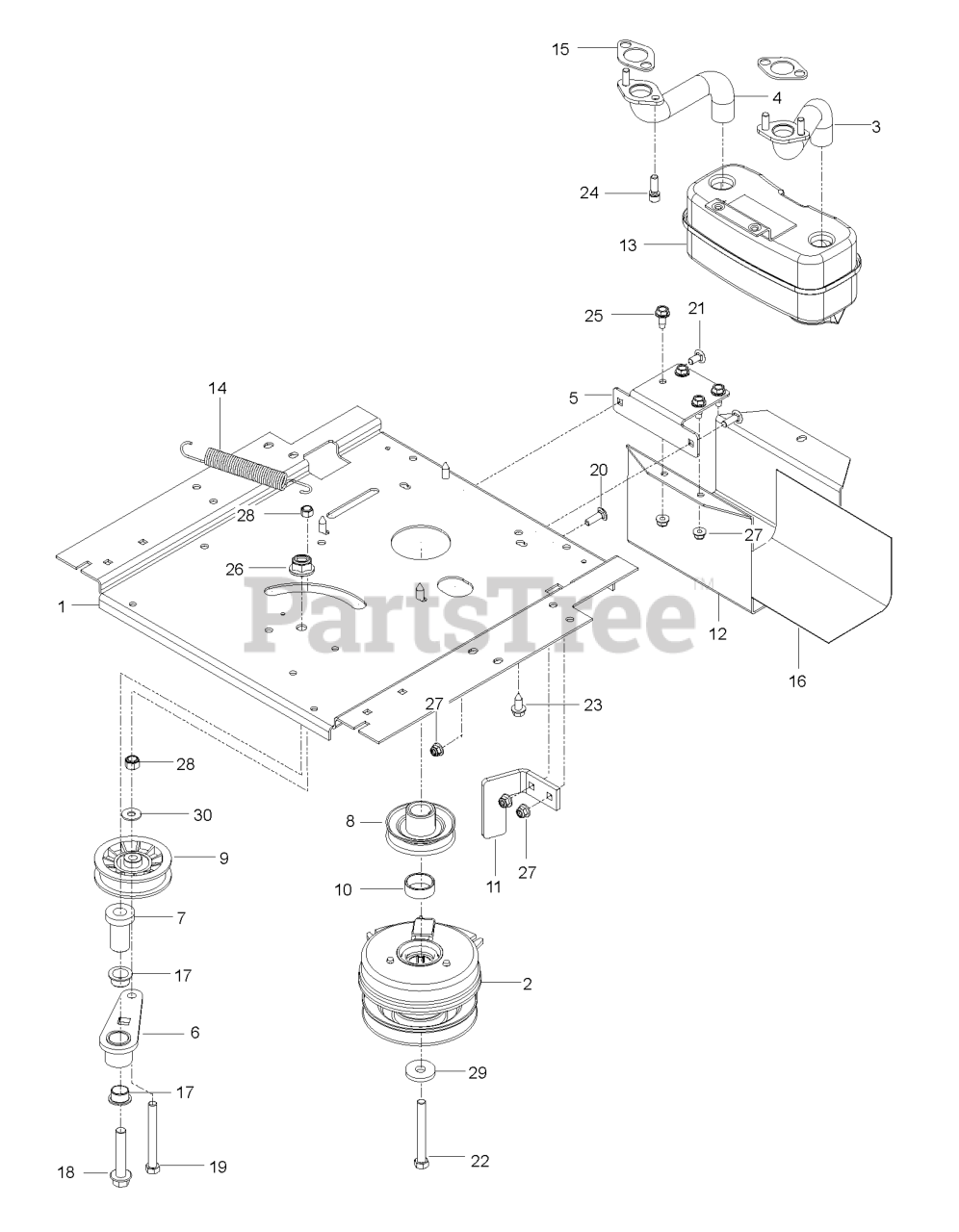

ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

  • Title
1

Poulan 588017102

PLATE.ENGINE.PNT.23"FRAME.EDIP

$

$

Not available

2

Poulan 585521101

CLUTCH.105.FT-LBS

$341.99

$

In Stock, only 1 left!

0

3

Poulan 581881101

EXHAUST.TUBE.LH.BS/TWIN
(Superseded to 532159955)

$44.99

$

In Stock, only 1 left!

0

4

Poulan 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK
(Superseded to 532160589)

$27.99

$

In Stock, only 1 left!

0

5

Poulan 581886702

BRACKET MUFFLER MS431BLK

$34.99

$

In Stock, only 1 left!

0

6

Poulan 532448145

ARM IDLER
(Superseded to 583593901)

$13.99

$

In Stock, Qty 6

0

7

Poulan 582538901

SPINDLE.IDLER
(Superseded to 582538902)

$5.99

$

In Stock, only 4 left!

0

8

Poulan 587537401

PULLEY.ENGINE

$26.99

$

In Stock, only 3 left!

0

9

Poulan 539110311

PULLEY, IDLER

$17.99

$

In Stock, Qty 20+

0

10

Poulan 539112252

T & B SPACER
(Superseded to 596401101)

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 510246002

STOP, CLUTCH, BLACK

$27.99

$

Usually ships in 3-10 days

0

12

Poulan 587451202

GUARD.MUFFLER.WO.TOW.HITCHX431

$51.99

$

Usually ships in 3-10 days

0

13

Poulan 539131604

MUFFLER ASM TWIN

$45.99

$

In Stock, only 1 left!

0

14

Poulan 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 8

0

15

Poulan 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

16

Poulan 539132859

HEAT SHIELD

$36.99

$

Usually ships in 3-10 days

0

17

Poulan 501603701

BEARING.FLANGED.PLASTIC.3/4ID

$6.99

$

In Stock, Qty 7

0

18

Poulan 582539501

BOLT.FLANGE.1/2-13 X 2.75.GRD5
(Superseded to 582539502)

$6.99

$

In Stock, Qty 7

0

19

Poulan 874520656

HCS 3/8-16X3-1/2 TAPBLT GR5 ZD

$

$

Not available

20

Poulan 872140508

Bolt, Carriage 5/16-18 UNC x 1 (AYP part number)
(Superseded to 595901501)

$4.99

$

In Stock, Qty 7

0

21

Poulan 872140506

Bolt, Carriage 5/16-18 x 3/4 Gr. 5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

22

Poulan 581332804

CLUTCH BOLT7/16-20X3.5 GR524HR

$7.99

$

In Stock, only 2 left!

0

23

Poulan 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

24

Poulan 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

25

Poulan 817490512

Screw, Hex Washer Head, Threaded, Rolling 5/16-18 x 3/4 Type TT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

26

Poulan 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

27

Poulan 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

28

Poulan 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

29

Poulan 532126197

Washer 1 - 1/2 OD x 15/32 ID x .250 (AYP part number)

$8.99

$

In Stock, only 3 left!

0

30

Poulan 539990692

WASHER 5/16 FLAT
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

Poulan 000000000

Note: Engine, Briggs & Stratton 44N6770040G1 22 HP. For engine replacement parts, see a B&S dealer.

$

$

Not available

Poulan 525349801

REWIND GUARD (794277)

$

$

Not available

Poulan 579073901

SCREW.B&S.SCREEN.GUARD

$

$

Not available
