PW-3600 (090079438) - Echo 3,600 PSI Pressure Washer, Revision 03 (2020-05) FIGURE C Parts Diagram

3,600 PSI Pressure Washer, Revision 03

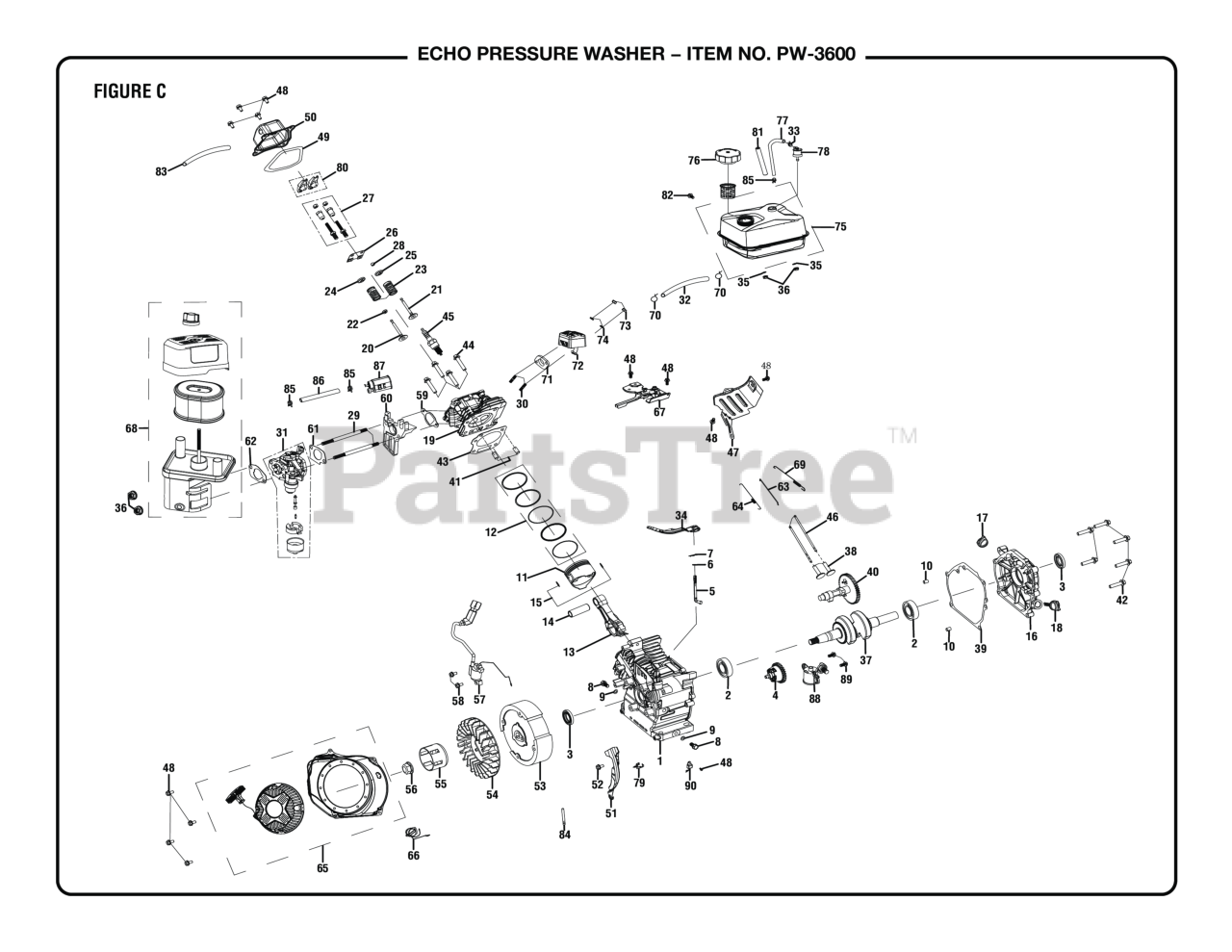

FIGURE C Parts Diagram

  • Title
1

Echo YH458001310

CRANKCASE

$104.99

$

Usually ships in 2-4 days

0

2

Echo YH453000090

BEARING, BALL

$9.49

$

Usually ships in 2-4 days

0

3

Echo YH468001170

SEAL, OIL

$2.49

$

Usually ships in 2-4 days

0

4

Echo YH458000770

ASSY., GOVERNOR

$5.99

$

Usually ships in 2-4 days

0

5

Echo YH470000760

SHAFT, GOVERNOR ARM

$2.49

$

Usually ships in 2-4 days

0

6

$0.99

$

Usually ships in 2-4 days

0

7

Echo YH452000410

PIN, LOCK

$0.99

$

Usually ships in 2-4 days

0

8

Echo YH468001180

BOLT, DRAIN PLUG

$1.99

$

Usually ships in 2-4 days

0

9

Echo YH451000360

WASHER, DRAIN PLUG

$0.99

$

Usually ships in 2-4 days

0

10

Echo YH452000450

DOWEL PIN, CASECOVER

$0.99

$

Usually ships in 2-4 days

0

11

$17.99

$

Usually ships in 2-4 days

0

12

Echo YH458000790

SET, PISTON SCRAPER RING

$11.99

$

Usually ships in 2-4 days

0

13

Echo YH458000800

ASSY., CONNECTING ROD

$14.99

$

Usually ships in 2-4 days

0

14

Echo YH458000810

PIN, PISTON

$3.99

$

Usually ships in 2-4 days

0

15

Echo YH458000820

CLIP, PISTON

$0.99

$

Usually ships in 2-4 days

0

16

Echo YH458000830

COVER, CRANKCASE

$28.99

$

Usually ships in 2-4 days

0

17

Echo YH468001190

PLUG, OIL

$2.49

$

Usually ships in 2-4 days

0

18

Echo YH470000770

DIPSTICK

$2.49

$

Usually ships in 2-4 days

0

19

Echo YH458000840

CYLINDER HEAD

$48.99

$

Usually ships in 2-4 days

0

20

Echo YH458000850

VALVE, INTAKE

$11.99

$

Usually ships in 2-4 days

0

21

Echo YH458000860

VALVE, EXHAUST

$11.99

$

Usually ships in 2-4 days

0

22

Echo YH458000870

RETURNER, INTAKE VALVE

$4.49

$

Usually ships in 2-4 days

0

23

Echo YH458000880

SPRING,VALVE

$2.49

$

Usually ships in 2-4 days

0

24

Echo YH458000890

SEAT, INTAKE VALVE SPRING

$2.99

$

Usually ships in 2-4 days

0

25

Echo YH458000900

SEAT, EXHAUST VALVE SPRING

$2.99

$

Usually ships in 2-4 days

0

26

Echo YH458000910

PLATE,PUSH ROD GUIDE

$3.49

$

Usually ships in 2-4 days

0

27

Echo YH458000920

BOLT, ROCKER ARM

$5.49

$

Usually ships in 2-4 days

0

28

$2.49

$

Usually ships in 2-4 days

0

29

Echo YH452000420

BOLT, STUD

$2.49

$

Usually ships in 2-4 days

0

30

Echo YH452000580

BOLT, STUD

$0.99

$

Usually ships in 2-4 days

0

31

Echo YH459000450

ASSY., CARBURETOR

$46.99

$

Usually ships in 2-4 days

0

32

Echo YH467000430

HOSE, FUEL

$4.99

$

Usually ships in 2-4 days

0

33

Echo YH452000590

CLIP, FUEL HOSE

$0.99

$

Usually ships in 2-4 days

0

34

Echo YH470000780

ARM, GOVERNOR

$2.49

$

Usually ships in 2-4 days

0

35

$0.99

$

Usually ships in 2-4 days

0

$0.99

$

Usually ships in 2-4 days

0

37

Echo YH458000940

ASSY., CRANKSHAFT

$63.99

$

Usually ships in 2-4 days

0

38

Echo YH458000950

LIFTER, VALVE

$4.49

$

Usually ships in 2-4 days

0

39

Echo YH468001380

GASKET, CRANKCASE COVER

$5.99

$

Usually ships in 2-4 days

0

40

Echo YH458000960

ASSY., CAMSHAFT

$26.99

$

Usually ships in 2-4 days

0

41

Echo YH452000460

PIN, DOWEL

$0.99

$

Usually ships in 2-4 days

0

$1.49

$

Usually ships in 2-4 days

0

43

Echo YH468001200

GASKET, CYLINDER HEAD

$5.99

$

Usually ships in 2-4 days

0

$2.49

$

Usually ships in 2-4 days

0

45

Echo YH461000220

PLUG, SPARK

$8.99

$

Usually ships in 2-4 days

0

46

Echo YH458000970

ROD, PUSH

$3.49

$

Usually ships in 2-4 days

0

47

$4.99

$

Usually ships in 2-4 days

0

$0.99

$

Usually ships in 2-4 days

0

49

Echo YH458001320

GASKET, VALVE COVER

$1.99

$

Usually ships in 2-4 days

0

50

Echo YH458000980

COVER, VALVE

$10.99

$

Usually ships in 2-4 days

0

51

Echo YH479001710

SHIELD, WIND

$2.99

$

Usually ships in 2-4 days

0

$0.99

$

Usually ships in 2-4 days

0

53

Echo YH461000230

ASSY., FLYWHEEL

$35.99

$

Usually ships in 2-4 days

0

54

Echo YH463000170

FAN, RECOIL STARTER

$5.99

$

Usually ships in 2-4 days

0

55

Echo YH463000180

PULLEY, STARTER

$7.99

$

Usually ships in 2-4 days

0

$2.49

$

Usually ships in 2-4 days

0

57

Echo YH461000240

MODULE, IGNITION

$25.99

$

Usually ships in 2-4 days

0

$0.99

$

Usually ships in 2-4 days

0

59

Echo YH468001390

GASKET, INTAKE

$0.99

$

Usually ships in 2-4 days

0

60

Echo YH468001210

INSULATOR, CARBURETOR

$2.49

$

Usually ships in 2-4 days

0

61

Echo YH468001430

GASKET, CARBURETOR

$0.99

$

Usually ships in 2-4 days

0

62

$0.99

$

Usually ships in 2-4 days

0

63

Echo YH470000790

ROD, GOVERNOR

$1.49

$

Usually ships in 2-4 days

0

64

Echo YH470000800

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

65

Echo YH463000190

ASSY., RECOIL STARTER

$35.99

$

Usually ships in 2-4 days

0

66

$4.49

$

Usually ships in 2-4 days

0

67

Echo YH479001720

SHROUD, UPPER

$4.49

$

Usually ships in 2-4 days

0

68

Echo YH479001730

AIR CLEANER

$25.99

$

Usually ships in 2-4 days

0

69

Echo YH470000810

SPRING,GOVERNOR

$1.49

$

Usually ships in 2-4 days

0

70

Echo YH452000470

CLIP, FUEL HOSE

$1.49

$

Usually ships in 2-4 days

0

71

Echo YH468001440

GASKET, EXHAUST

$0.99

$

Usually ships in 2-4 days

0

72

$20.99

$

Usually ships in 2-4 days

0

$0.99

$

Usually ships in 2-4 days

0

74

Echo YH451000380

WASHER, SPRING

$1.99

$

Usually ships in 2-4 days

0

75

Echo YH455000120

ASSY., FUEL TANK

$42.99

$

In Stock, only 1 left!

0

76

Echo YH468001230

CAP, FUEL

$9.99

$

In Stock, only 2 left!

0

77

Echo YH467000440

PIPE, CONNECTING

$5.49

$

Usually ships in 2-4 days

0

78

Echo YH470000820

ASSY., CHOKE

$13.99

$

Usually ships in 2-4 days

0

$1.99

$

Usually ships in 2-4 days

0

80

Echo YH458000990

ARM, ROCKER

$2.49

$

Usually ships in 2-4 days

0

81

Echo YH468001450

PROTECTOR, VENTILATION TUBE

$0.99

$

Usually ships in 2-4 days

0

$0.99

$

Usually ships in 2-4 days

0

83

Echo YH467000450

TUBE, BREATHER

$2.49

$

Usually ships in 2-4 days

0

84

Echo YH452000490

CLIP, WIRE HARNESS

$1.99

$

Usually ships in 2-4 days

0

85

Echo YH452000500

CLIP, FUEL HOSE

$1.99

$

Usually ships in 2-4 days

0

86

Echo YH467000460

PIPE, CONNECTING

$2.99

$

Usually ships in 2-4 days

0

87

Echo YH481000040

CANNISTER, CARBON

$21.99

$

Usually ships in 2-4 days

0

88

Echo YH327000100

SWITCH, OIL LEVEL

$9.99

$

Usually ships in 2-4 days

0

$0.99

$

Usually ships in 2-4 days

0

90

Echo YH314000050

AMPLIFIER

$5.49

$

Usually ships in 2-4 days

0

Echo YH458001330

KIT, HIGH ALTITUDE

$21.99

$

Usually ships in 2-4 days

0
