PW-3600 (090079438) - Echo 3,600 PSI Pressure Washer, Revision 01 (2019-12) FIGURE A Parts Diagram

3,600 PSI Pressure Washer, Revision 01

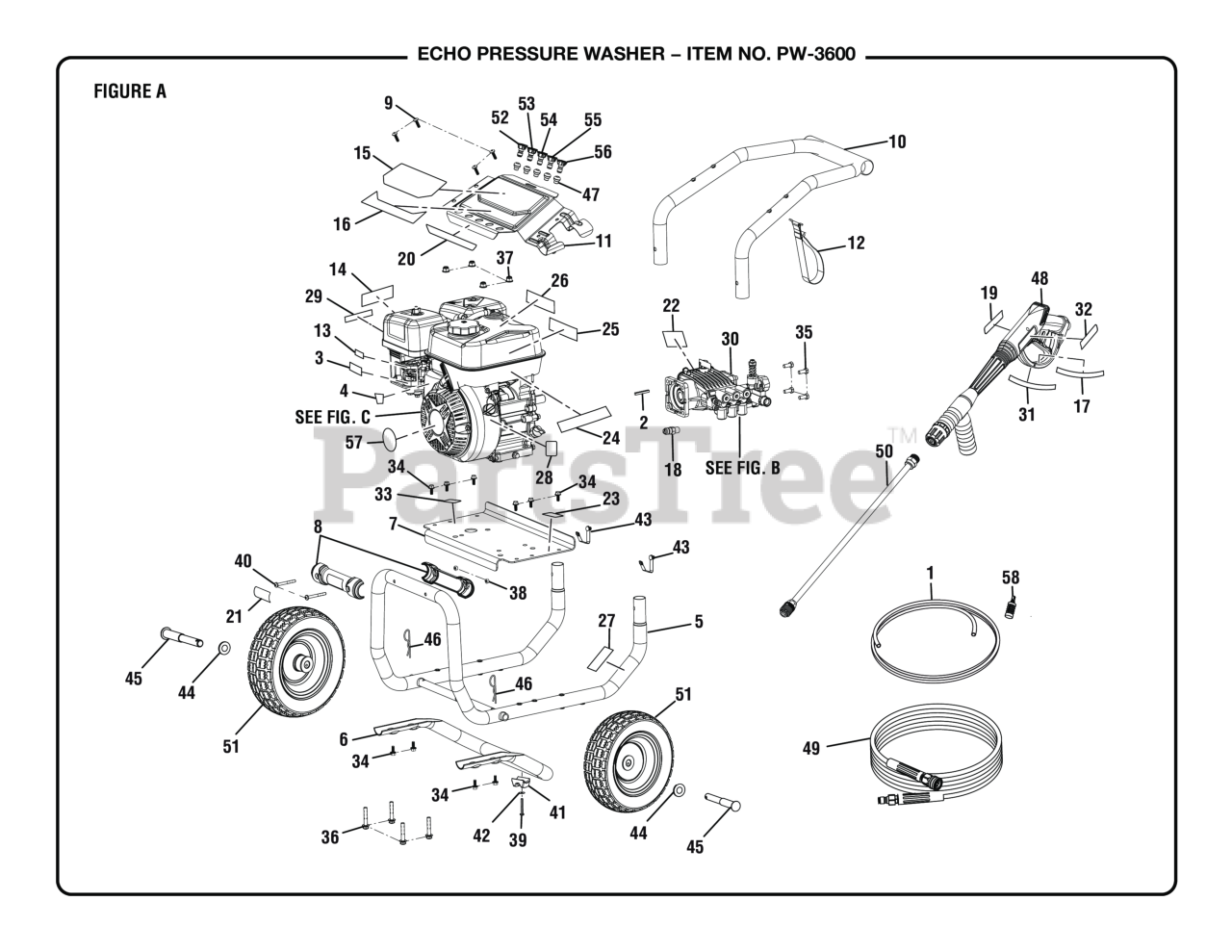

FIGURE A Parts Diagram

  • Title
1

Echo YH467000360

HOSE, SIPHON

$7.99

$

Usually ships in 2-4 days

0

$1.99

$

Usually ships in 2-4 days

0

3

Echo YH653000900

LABEL, FUEL VALVE

$0.99

$

Usually ships in 2-4 days

0

4

Echo YH653000860

LABEL, CHOKE/FUEL CALLOUT

$0.99

$

Usually ships in 2-4 days

0

5

Echo YH479001410

FRAME, MAIN

$44.99

$

Usually ships in 2-4 days

0

6

Echo YH479001390

FRAME, REAR

$21.99

$

Usually ships in 2-4 days

0

7

Echo YH479001380

PLATE, ENGINE

$34.99

$

Usually ships in 2-4 days

0

8

Echo YH468001140

GRIP, FRONT HANDLE

$10.99

$

Usually ships in 2-4 days

0

9

Echo YH417000060

SCREW, PHILLIPS HEAD

$2.49

$

Usually ships in 2-4 days

0

10

Echo YH479001400

FRAME, HANDLE

$30.99

$

Usually ships in 2-4 days

0

11

$20.99

$

Usually ships in 2-4 days

0

12

Echo YH470000720

PLATE, CHAIN GUARD

$2.49

$

Usually ships in 2-4 days

0

13

Echo YH653000850

LABEL, CHOKE

$0.99

$

Usually ships in 2-4 days

0

14

Echo YH653000910

LABEL, HOT SURFACE

$0.99

$

Usually ships in 2-4 days

0

15

Echo YH653001040

LABEL, LOGO

$2.49

$

Usually ships in 2-4 days

0

16

Echo YH653001030

LABEL, PERFORMANCE

$2.49

$

Usually ships in 2-4 days

0

17

Echo YH653001010

LABEL, TRIG HNDL(FR/SP)

$2.49

$

Usually ships in 2-4 days

0

18

Echo YH482000160

VALVE, THERMAL RELEASE

$12.99

$

In Stock, only 1 left!

0

19

Echo YH653000960

LABEL, TRIGGER HANDLE LOGO

$0.99

$

Usually ships in 2-4 days

0

20

Echo YH653000930

LABEL, NOZZLE

$0.99

$

Usually ships in 2-4 days

0

21

Echo YH653000970

LABEL, FRONT GRIP LOGO

$0.99

$

Usually ships in 2-4 days

0

22

Echo YH653001020

LABEL, PUMP LOGO

$0.99

$

Usually ships in 2-4 days

0

23

Echo YH653000840

LABEL, LOW OIL SHUTDOWN

$0.99

$

Usually ships in 2-4 days

0

24

Echo YH653000870

LABEL, COMBUSTION WARNING

$0.99

$

Usually ships in 2-4 days

0

25

Echo YH653000880

LABEL, DANGER

$4.49

$

Usually ships in 2-4 days

0

26

Echo YH653000360

LABEL, E85

$0.99

$

Usually ships in 2-4 days

0

27

Echo YH653000920

LABEL, INQUIRIES

$0.99

$

Usually ships in 2-4 days

0

28

Echo YH653000890

LABEL, ENGINE SWITCH

$0.99

$

Usually ships in 2-4 days

0

29

Echo YH653000830

LABEL, EMC

$0.99

$

Usually ships in 2-4 days

0

30

Echo YH483000090

PUMP, PW-3600

$395.99

$

Usually ships in 2-4 days

0

31

Echo YH653000990

LABEL, TRIGGER HANDLE RATING

$2.49

$

Usually ships in 2-4 days

0

32

Echo YH653001000

LABEL, TRIG HNDL (ENG)

$2.49

$

Usually ships in 2-4 days

0

33

Echo YH653001140

LABEL, DATA WARNINGS

$1.99

$

Usually ships in 2-4 days

0

34

Echo YH437000040

BOLT, FLANGE

$6.99

$

Usually ships in 2-4 days

0

35

Echo YH435000470

BOLT, HEX HEAD

$2.99

$

Usually ships in 2-4 days

0

36

Echo YH437000030

BOLT, FLANGE HEAD

$7.99

$

Usually ships in 2-4 days

0

37

Echo YH450000250

NUT, NYLOC FLANGE

$4.49

$

Usually ships in 2-4 days

0

38

Echo YH460000380

NUT, NYLOC

$0.99

$

Usually ships in 2-4 days

0

39

Echo YH415000780

SCREW, TORX PAN HEAD

$2.49

$

Usually ships in 2-4 days

0

40

$2.49

$

Usually ships in 2-4 days

0

41

Echo YH468001160

RUBBER FOOT

$5.99

$

Usually ships in 2-4 days

0

42

$2.49

$

Usually ships in 2-4 days

0

43

Echo YH452000400

CLIP, HANDLE SPRING

$2.49

$

Usually ships in 2-4 days

0

44

$2.49

$

Usually ships in 2-4 days

0

$11.99

$

Usually ships in 2-4 days

0

46

Echo YH471000080

PIN, HITCH

$1.49

$

Usually ships in 2-4 days

0

47

Echo YH468001130

GROMMETS

$3.49

$

Usually ships in 2-4 days

0

48

Echo YH470000710

CATCHER, CHAIN

$1.49

$

Usually ships in 2-4 days

0

49

Echo YH467000390

HOSE, HIGH PRESSURE (BRAIDED)

$192.99

$

Usually ships in 2-4 days

0

50

Echo YH467000380

WAND, SPRAY

$48.99

$

Usually ships in 2-4 days

0

51

$64.99

$

Usually ships in 2-4 days

0

52

Echo YH483000080

NOZZLE, 0 DEGREE

$9.99

$

Usually ships in 2-4 days

0

53

Echo YH483000060

NOZZLE, 15 DEGREE

$9.99

$

Usually ships in 2-4 days

0

54

Echo YH483000050

NOZZLE, 25 DEGREE

$9.99

$

Usually ships in 2-4 days

0

55

Echo YH483000070

NOZZLE, 40 DEGREE

$9.99

$

Usually ships in 2-4 days

0

56

Echo YH483000040

NOZZLE, SOAP

$9.99

$

Usually ships in 2-4 days

0

57

Echo YH653000980

LABEL, RECOIL

$0.99

$

Usually ships in 2-4 days

0

58

Echo YH465000180

PREFILTER

$0.99

$

Usually ships in 2-4 days

0

Echo 99922205396

Operator's Manual

$

$

Currently unavailable
