PW 27000 (01661-0) - Snapper 2,700 PSI Pressure Washer Main Unit Parts Diagram

2,700 PSI Pressure Washer

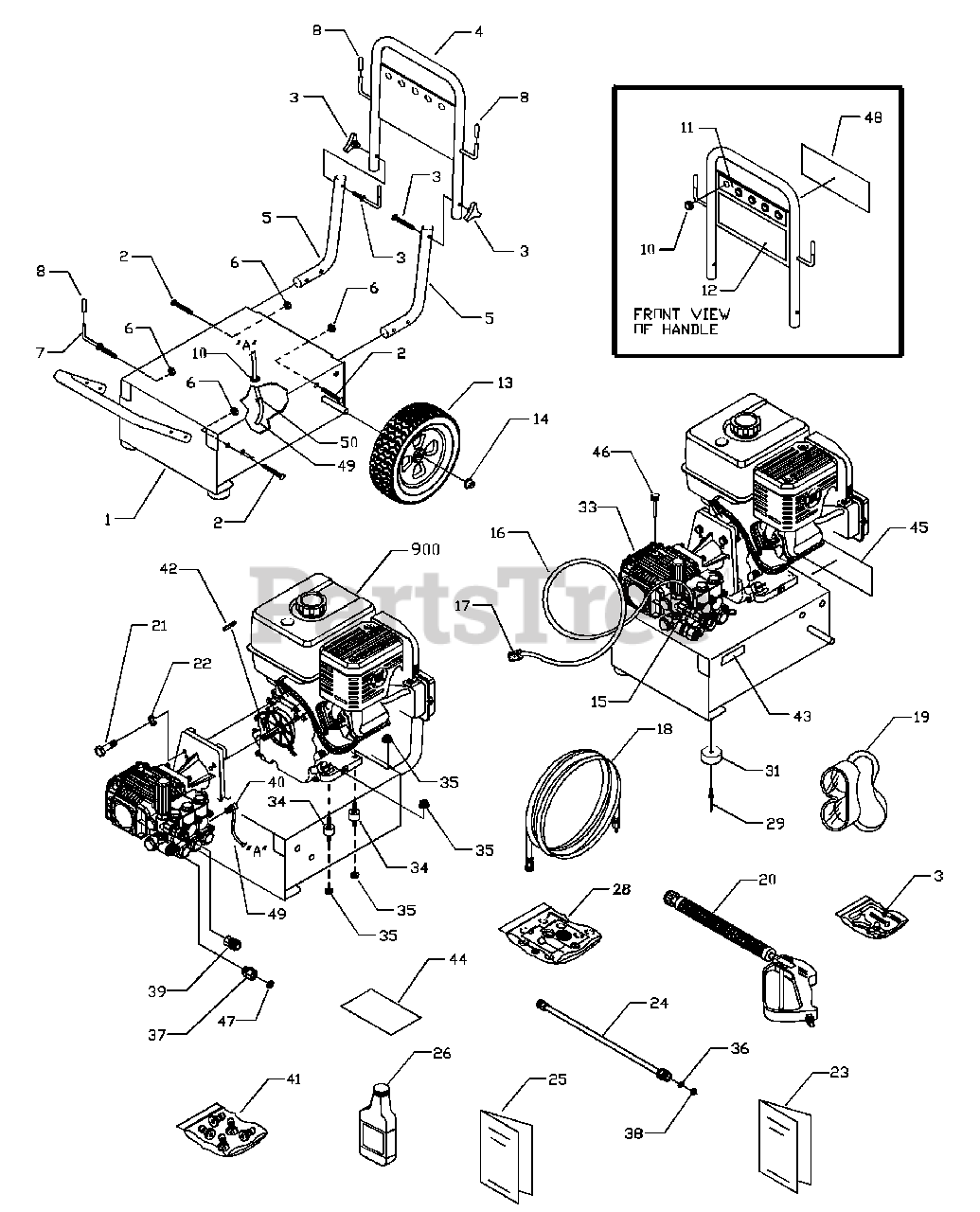

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton L190336GS

BASE

$137.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B2043GS

BOLT, Carriage

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 187978GS

KIT, Handle Hardware

$7.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton C190293GS

HANDLE
(Superseded to B190293GS)

$104.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton CB1981GS

SUPPORT, Handle

$19.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 99583GS

NUT, Hex Flange

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B2150GS

HOOK, Square Neck Gun

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B2516GS

CAP, Black Vinyl

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton CB1982GS

BUMPER

$

$

Not available

10

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187974AGS

DECAL, 5 QD Nozzles

$17.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 190715GS

DECAL, Unit

$29.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 190100GS

ASSY, Wheel

$35.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 190146GS

PUSHNUT

$9.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 48031GGS

CLAMP, Hose

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton A1040DGS

HOSE, Chemical Inject
(Superseded to 705076)

$12.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton A1041GS

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 187625GS

HOSE
(Superseded to 205734GS)

$

$

Not available

19

Briggs & Stratton 87815GS

GOGGLES, Safety

$12.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B1436BGS

GUN, with Molded Grip
(Superseded to 704311)

$115.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 23645GS

CAPSCREW, Socket Head

$4.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22237GS

WASHER, Lock

$2.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 190666GS

MANUAL, Owners

$14.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B3858GS

ASSY, Wand Ext. with QD

$

$

Not available

25

Briggs & Stratton MS6321

MANUAL, Engine

$

$

Currently unavailable

26

Briggs & Stratton BB3061BGS

BOTTLE, Oil
(Superseded to 100005)

$8.99

$

In Stock, Qty 20+

0

28

Briggs & Stratton 190862GS

KIT, O-Ring Maintenance
(Superseded to 191922GS)

$18.99

$

In Stock, Qty 20+

0

29

Briggs & Stratton 188194GS

BLIND RIVET

$

$

Not available

31

Briggs & Stratton 191413GS

VIBE MOUNT, with Washer

$6.49

$

In Stock, Qty 9

0

33

Briggs & Stratton B2126AGS

ASSY, PUMP

Note: (See "Pump" illustration and parts list)

$911.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 21217GS

VIB MOUNT, Double Ended

$7.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 67989GS

NUT, Flange

$3.49

$

In Stock, Qty 9

0

36

Briggs & Stratton B4224GS

SCREEN, Gun Inlet

$

$

Not available

37

Briggs & Stratton 186839GS

INLET, Garden Hose

$26.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 97837GS

O-RING, High Pressure Hose

$3.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 95458GS

QUICK CONNECT
(Superseded to 703824)

$

$

Not available

40

Briggs & Stratton B1554GS

VALVE, Thermal Relief
(Superseded to 195016GS)

$25.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 186301GS

KIT, Nozzles QD

$71.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 63281GS

KEY
(Superseded to 703890)

$4.99

$

In Stock, Qty 7

0

43

Briggs & Stratton 187952GS

DECAL, Cool Down System

$8.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 190277EGS

CARD, Owners Registration

$

$

Currently unavailable

45

Briggs & Stratton 190715GS

DECAL, PW, Snapper

$29.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 11287628PGS

DIPSTICK, Pump

$28.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton B2384GS

FILTER, Inlet

$4.49

$

In Stock, Qty 15

0

48

Briggs & Stratton B4160GS

DECAL, Warning/Start

$15.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton B3107GS

HOSE, Thermal Relief

$12.99

$

In Stock, only 1 left!

0

50

Briggs & Stratton 48031BGS

CLAMP, Hose Band

$3.49

$

Usually ships in 2-12 days

0

900

NSP

ENGINE

$

$

Not available
