PT 70-00 - Paramount Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

Trimmer, Electric

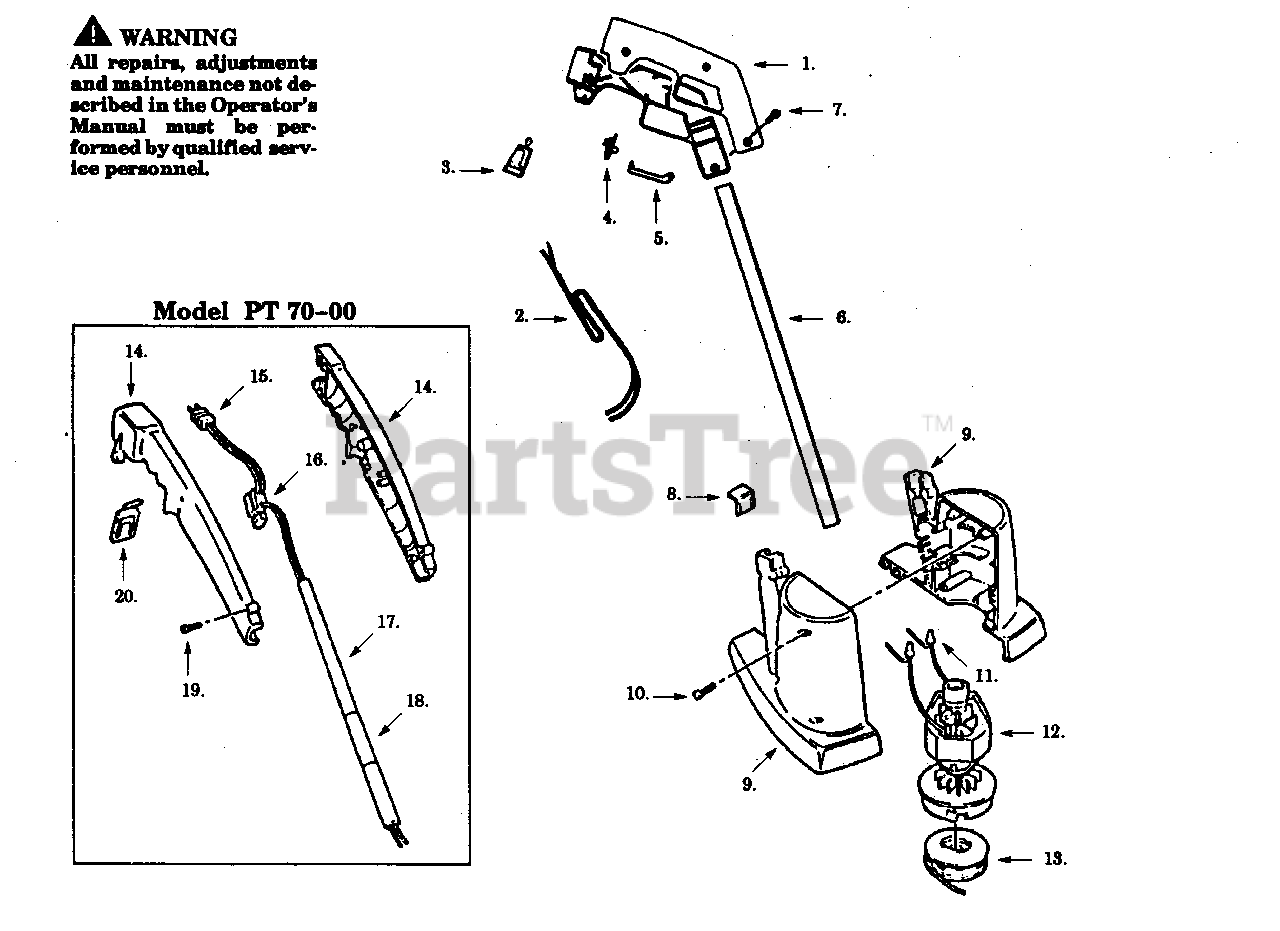

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 530351822

Handle Set

$

$

Not available

2

Poulan 534014581

Harness Ass'y.

$

$

Not available

3

Poulan 530347653

Cord Retainer

$

$

Not available

4

Poulan 530347897

On/Off Switch

$

$

Not available

5

Poulan 530351826

Trigger

$1.99

$

Usually ships in 3-10 days

0

6

Poulan 534014577

Tube Assy. w/Decal

$

$

Not available

7

Poulan 534184700

Screw

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 534789700

Line Cutter

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 534291022

Housing Set

$

$

Not available

10

Poulan 534193800

Screw

$

$

Not available

11

Poulan 534561000

Terminal Cap

$

$

Not available

12

Poulan 534763001

Motor & Head Ass'y.

$

$

Not available

13

Poulan 534264805

Spool & Line

$18.99

$

Usually ships in 3-10 days

0

14

Poulan 534192415

Handle Set

$12.99

$

Usually ships in 3-10 days

0

15

Poulan 534802500

Harness Ass'y.

$7.49

$

Usually ships in 3-10 days

0

16

Poulan 534193003

Switch

$

$

Not available

17

Poulan 534801600

Handle Tube

$

$

Not available

18

Poulan 534802700

Warning Label

$

$

Not available

19

Poulan 534184700

Screw

$2.49

$

Usually ships in 3-10 days

0

20

Poulan 534781115

Cord Retainer

$

$

Not available

Poulan 534068464

Operator Manual

Note: Not Shown.

$

$

Not available

Poulan 534061526

Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available
