PT 3000 - Poulan String Trimmer Power Unit Parts Diagram

String Trimmer

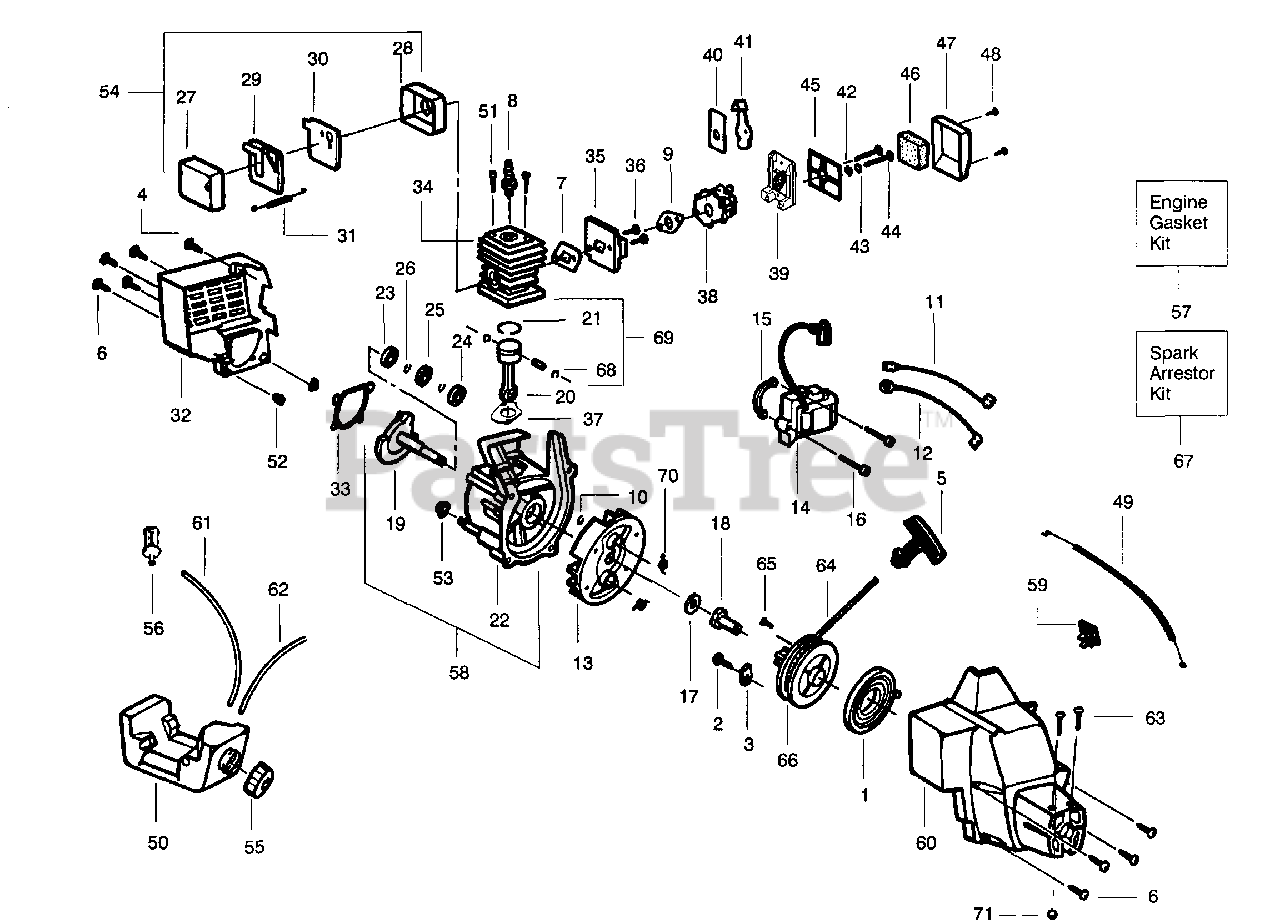

Power Unit Parts Diagram

  • Title

1

Poulan 530042085

Starter Spring
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

2

Poulan 530015775

Screw - Pulley

$6.49

$

In Stock, only 2 left!

0

3

Poulan 530027523

Retainer - Pulley

$7.49

$

In Stock, only 2 left!

0

4

Poulan 530015934

Screw - Shrd/Fan Hsg.

$4.99

$

In Stock, only 1 left!

0

5

Poulan 530027569

Starter Handle

$6.49

$

Usually ships in 3-10 days

0

6

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

7

Poulan 530019243

Gasket - Cylind./Carb.

$6.49

$

In Stock, only 2 left!

0

8

Poulan 952030201

Spark Plug (RCJ 8Y)
(Superseded to 952030150)

$3.99

$

In Stock, Qty 20+

0

9

Poulan 530035421

Gasket - Carb.

$

$

Not available

10

Poulan 530015945

Retainer Ring - C'case

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 530014663

Lead Wire Ass'y.

$9.99

$

Usually ships in 3-10 days

0

12

Poulan 530014662

Ground Wire Ass'y.

$7.49

$

Usually ships in 3-10 days

0

13

Poulan 530069886

Flywheel Ass'y.
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

14

Poulan 530052266

Ignition Module

$40.99

$

Usually ships in 3-10 days

0

15

Poulan 530036145

Spacer - Ignit. Module

$3.99

$

In Stock, only 3 left!

0

16

Poulan 530015954

Screw - Ignit. Module

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 530015828

Washer - Flat

$4.99

$

Usually ships in 3-10 days

0

18

Poulan 530027953

Drive Coupling

$

$

Not available

19

Poulan 530014532

Crankshaft Ass'y.

$

$

Not available

20

Poulan 530069615

Connecting Rod Ass'y.

$24.99

$

Usually ships in 3-10 days

0

21

Poulan 530053565

Piston Ring
(Superseded to 545154009)

$4.99

$

In Stock, only 4 left!

0

22

Poulan 530014861

Crankcase Ass'y.

Note: (Incl 23-26)

$

$

Not available

23

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

24

Poulan 530032124

Outer Bearing

$7.49

$

Usually ships in 3-10 days

0

25

Poulan 530019179

C'case Seal

$

$

Not available

26

Poulan 530015941

Retain. Ring - C'shaft

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 530036578

Muffler Body

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 530036577

Muffler Cover

$2.99

$

Usually ships in 3-10 days

0

29

Poulan 530053500

Muffler Baffle - Exit

$0.99

$

Usually ships in 3-10 days

0

30

Poulan 530053499

Muffler Baffle - First

$1.99

$

Usually ships in 3-10 days

0

31

Poulan 530016197

Muffler Spring

$4.99

$

In Stock, Qty 5

0

32

Poulan 530053320

Rear Shroud

$8.99

$

Usually ships in 3-10 days

0

33

Poulan 530019181

Gasket - C'case

$6.49

$

In Stock, only 2 left!

0

34

Poulan 530053445

Cylinder

$15.99

$

Usually ships in 3-10 days

0

35

Poulan 530069994

Carb. Adapter Kit

$6.49

$

Usually ships in 3-10 days

0

36

Poulan 530016014

Screw - Carb Adaptor

$6.49

$

In Stock, only 3 left!

0

37

Poulan 530019223

Gasket - Cylinder

$4.99

$

In Stock, only 3 left!

0

38

Poulan 530069990

Carburetor Ass'y. Kit

Note: (Includes Limiter Cap)

$40.99

$

Usually ships in 3-10 days

0

39

Poulan 530052431

Air Box

$

$

Not available

40

Poulan 530038747

Choke Plate

$3.99

$

In Stock, only 3 left!

0

41

Poulan 530038686

Choke Shutter

$3.99

$

In Stock, Qty 7

0

42

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

43

Poulan 530015852

Choke Spacer

$3.49

$

In Stock, only 1 left!

0

44

Poulan 530015887

Screw

$4.99

$

In Stock, only 2 left!

0

45

Poulan 530036569

Filter Plate

$

$

Not available

46

Poulan 530036575

Air Filter Foam

$5.99

$

In Stock, only 2 left!

0

47

Poulan 530036568

Air Filter Cover

$

$

Not available

48

Poulan 530015775

Screw - Air Box

$6.49

$

In Stock, only 2 left!

0

49

Poulan 530053591

Throttle Cable Ass'y.

$4.99

$

Usually ships in 3-10 days

0

50

Poulan 530049933

Fuel Tank Ass'y
(Superseded to 530049299)

$

$

Not available

51

Poulan 530015953

Screw - Cylinder

$6.49

$

In Stock, Qty 7

0

52

Poulan 530036793

Isolator - Shroud

$

$

Not available

53

Poulan 530036792

Isolator - Crankcase

$7.49

$

Usually ships in 3-10 days

0

54

Poulan 530069989

Muffler Kit

$6.49

$

Usually ships in 3-10 days

0

55

Poulan 530014347

Fuel Cap Ass'y.

$9.49

$

In Stock, Qty 15

0

56

Poulan 530014362

Fuel Pickup Ass'y.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

57

Poulan 530071253

Engine Gasket Kit

Note: (Incl. 7, 9, 33, 37)

$

$

Not available

58

Poulan 530014729

C'case & C'shaft Assy.

Note: (Incl. 10, 19, 22 - 26)

$

$

Not available

59

Poulan 530038114

On/Off Switch
(Superseded to 530071356)

$8.99

$

In Stock, only 1 left!

0

60

Poulan 530053603

Fan Housing Ass'y

$17.99

$

Usually ships in 3-10 days

0

61

Poulan 530069247

Fuel Line - Carb./Purge

$7.99

$

In Stock, Qty 20+

0

62

Poulan 530069216

Fuel Line - Tank/Purge

$11.99

$

In Stock, Qty 20+

0

63

Poulan 530015767

Screw

$3.99

$

In Stock, only 2 left!

0

64

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 17

0

65

Poulan 530016080

Screw - Rope Retain.

$6.49

$

Usually ships in 3-10 days

0

66

Poulan 530069400

Starter Pulley Kit
(Superseded to 530071786)

Note: (Incl. 65)

$11.99

$

In Stock, Qty 7

0

67

Poulan 530069380

Spark Arrestor Kit

$6.49

$

Usually ships in 3-10 days

0

68

Poulan 530015162

Piston Pin Retainer

$6.49

$

In Stock, only 1 left!

0

69

Poulan 530069992

Piston Kit

Note: (Incl. 21, 68 & Pin)

$

$

Not available

70

Poulan 530023817

Starter Dog Spring

$6.49

$

In Stock, only 2 left!

0

71

Poulan 530015768

Locknut

$6.49

$

In Stock, only 2 left!

0
