PT 26 D (965160601) - Husqvarna Swedish Riding Mower (2008-03) FUEL SYSTEM Parts Diagram

Swedish Riding Mower

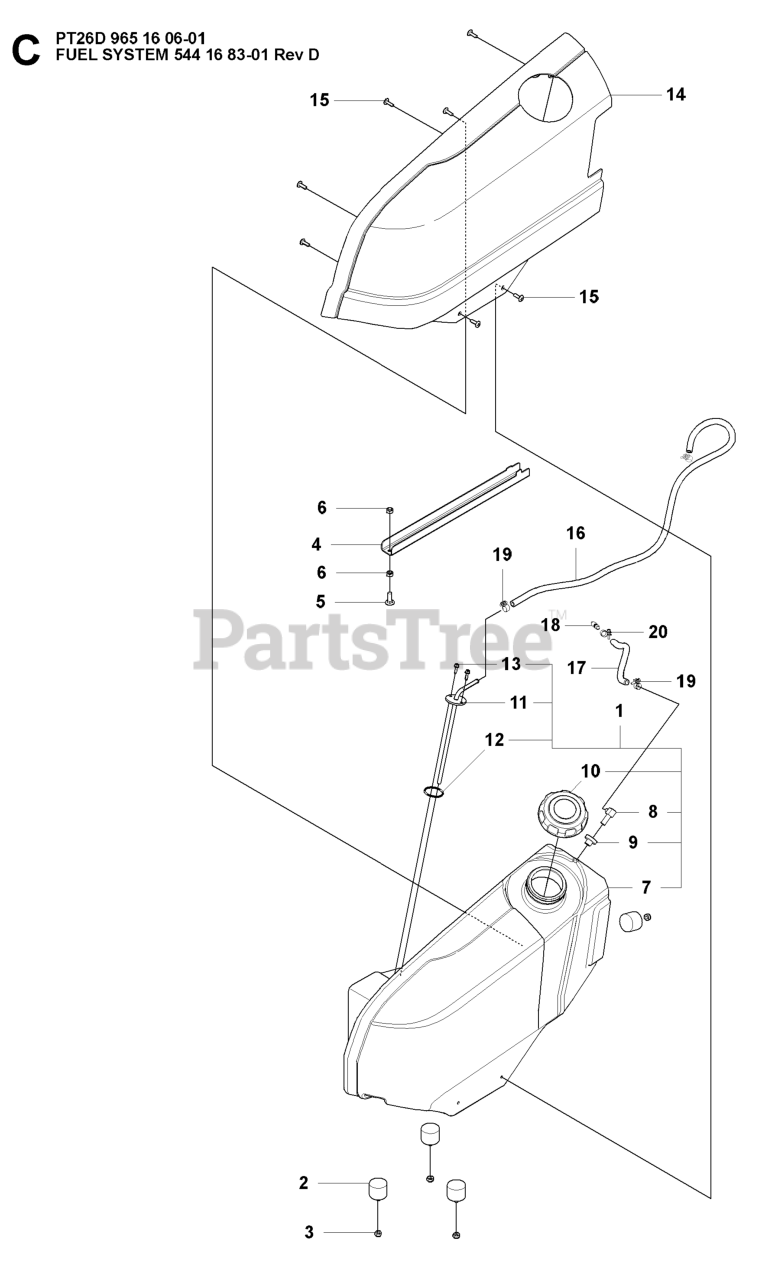

FUEL SYSTEM Parts Diagram

  • Title

9

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 11

0

18

Husqvarna 544369201

NEEDS DESCRIPTION

$

$

Currently unavailable

17

Husqvarna 544282505

NEEDS DESCRIPTION

$

$

Currently unavailable

1

Husqvarna 544191401

FUEL TANK ASSY

$

$

Not available

14

Husqvarna 544210601

TANK COVER FUEL TANK

$

$

Not available

2

Husqvarna 544252101

ANTIVIBRATION ELEMENT

$

$

Not available

19

Husqvarna 544282601

RP HOSE CLAMP FUEL HOSE
(Superseded to 544282605)

$7.99

$

Usually ships in 3-10 days

0

20

Husqvarna 544282602

HOSE CLAMP FUEL HOSE

$

$

Not available

10

Husqvarna 539106330

TANK CAP - DIESEL

$48.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539105244

ELBOW

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 544316301

NEEDS DESCRIPTION

$

$

Currently unavailable

5

Husqvarna 535423801

BOLT

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 544282504

NEEDS DESCRIPTION

$

$

Currently unavailable

7

Husqvarna 544191501

FUEL TANK

$

$

Not available

13

Husqvarna 535415619

SCREW

$

$

Not available

15

Husqvarna 535425801

NEEDS DESCRIPTION

$1.17

$

Usually ships in 3-10 days

0

6

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

11

Husqvarna 544243301

CONNECTION FUEL TANK

$

$

Not available

12

Husqvarna 740481202

O-RING

$

$

Not available

3

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0
