PT 145-00 - Paramount Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

Trimmer, Electric

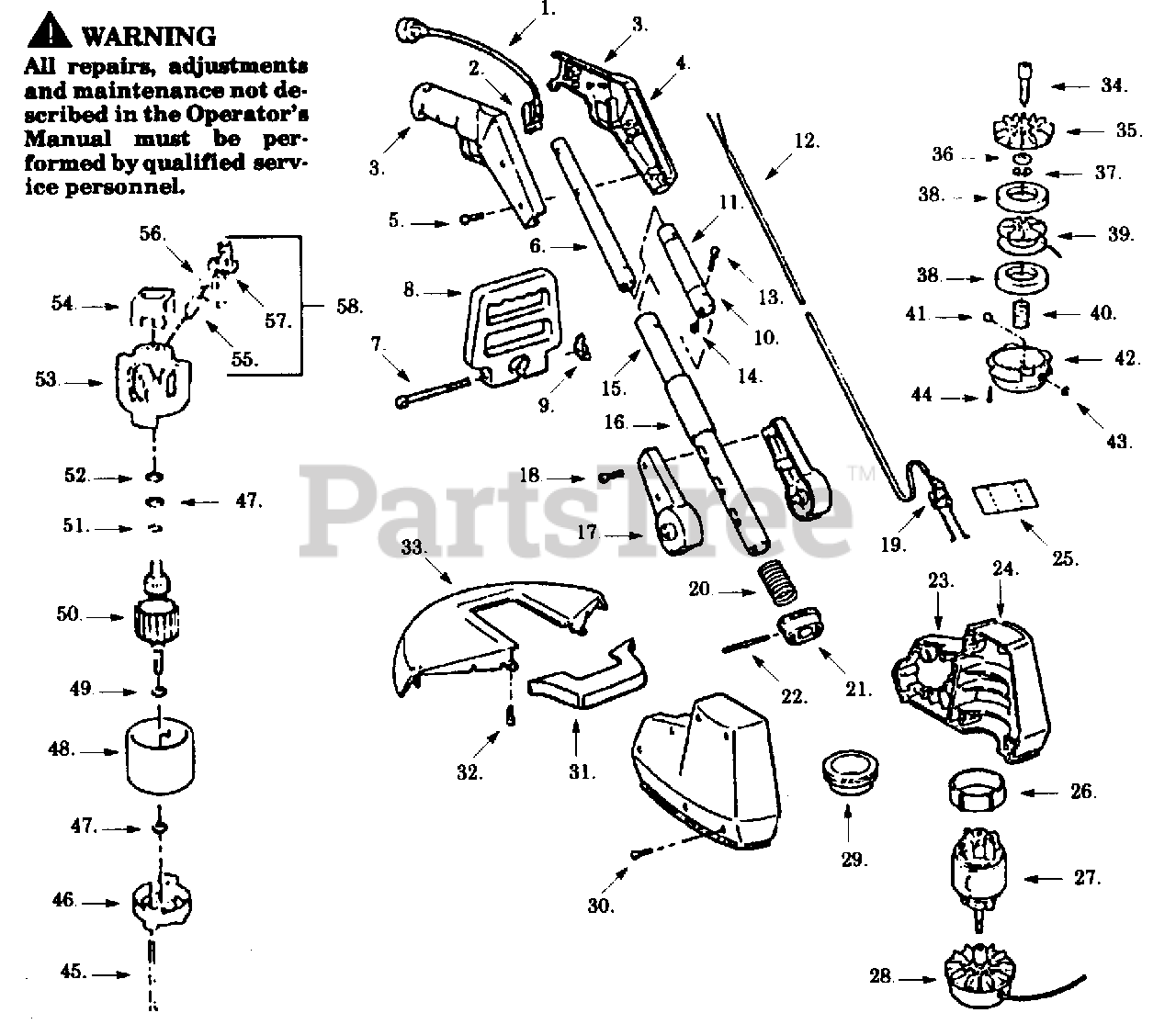

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534234500

Power Cord

$

$

Not available

2

Poulan 534193001

Trigger Switch

$

$

Not available

3

Poulan 534356772

Handle Set

$

$

Not available

4

Poulan 534766100

Handle Label (Not a serviceable part)

$

$

Not available

5

Poulan 534193700

Screw

$

$

Not available

6

Poulan 534696201

Upper Tube

$

$

Not available

7

Poulan 534218100

Bolt

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 534282605

Assist Handle Ass'y.

$15.99

$

Usually ships in 3-10 days

0

9

Poulan 534437000

Wing Nut

$

$

Not available

10

Poulan 534696301

Outer Tube

$

$

Not available

11

Poulan 534786200

Warning Label (Not a serviceable part)

$

$

Not available

12

Poulan 534486805

Harness Ass'y.

$

$

Not available

13

Poulan 534174502

Screw

$1.49

$

Usually ships in 3-10 days

0

14

Poulan 534235901

Stop Nut
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 534766400

Lower Tube

$

$

Not available

16

Poulan 534766800

Sponge Grip

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 534677705

Pivot Set

$4.99

$

Usually ships in 3-10 days

0

18

Poulan 534184700

Screw

$2.49

$

Usually ships in 3-10 days

0

19

Poulan 534336600

P.C. Bridge Ass'y.

$

$

Not available

20

Poulan 534679200

Spring

$

$

Not available

21

Poulan 534677904

Sleeve

$2.49

$

Usually ships in 3-10 days

0

22

Poulan 534679100

Sleeve Pin

$2.49

$

Usually ships in 3-10 days

0

23

Poulan 534677024

Housing Set

$

$

Not available

24

Poulan 534766000

Hsg. Top Label

$

$

Not available

25

Poulan 534337100

Shield Insulator

$

$

Not available

26

Poulan 534286505

Adapter Ring

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 534768300

Motor Ass'y.

$

$

Not available

28

Poulan 534631845

Cutting Head Ass'y.

$

$

Not available

29

Poulan 534487255

Air Baffle

$

$

Not available

30

Poulan 534222400

Screw

$2.49

$

Usually ships in 3-10 days

0

31

Poulan 534677212

Front Guard

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 534184704

Screw

$1.49

$

Usually ships in 3-10 days

0

33

Poulan 534683715

Guard & Blade Ass'y.

$

$

Not available

34

Poulan 534589900

Drive Adapter

$30.99

$

Usually ships in 3-10 days

0

35

Poulan 534487115

Rear Plate

$

$

Not available

36

Poulan 534220146

Washer

$

$

Not available

37

Poulan 534246703

Retaining Ring

$

$

Not available

38

Poulan 534158600

Foam Pad

$

$

Not available

39

Poulan 534486805

Spool & Line

$

$

Not available

40

Poulan 534157401

Spring

$

$

Not available

41

Poulan 534157600

Eyelet

$3.49

$

Usually ships in 3-10 days

0

42

Poulan 534486465

Hub Ass'y.

$

$

Not available

43

Poulan 534157600

Wire Retaining Ring

$3.49

$

Usually ships in 3-10 days

0

44

Poulan 534270301

Cotter Pin

$2.49

$

Usually ships in 3-10 days

0

45

Poulan 534228703

Screw

$

$

Not available

46

Poulan 534207101

Endbell Ass'y. (Drive)

$

$

Not available

47

Poulan 534228800

Washer

$2.49

$

Usually ships in 3-10 days

0

48

Poulan 534227004

Field Ass'y.

$27.99

$

Usually ships in 3-10 days

0

49

Poulan 534747002

Retaining Ring

$2.49

$

Usually ships in 3-10 days

0

50

Poulan 534767700

Armature Ass'y.

$

$

Not available

51

Poulan 534246700

Retaining Ring

$1.49

$

Usually ships in 3-10 days

0

52

Poulan 534238903

Washer

$

$

Not available

53

Poulan 534227501

Endbell Ass'y. (Brush)

$

$

Not available

54

Poulan 534226000

Insulator

$

$

Not available

55

Poulan 534227800

Carbon Brush

$

$

Not available

56

Poulan 534228000

Brush Spring

$

$

Not available

57

Poulan 534227700

Brush Holder

$

$

Not available

58

Poulan 534450400

Brush Kit (Incl. 55,56,57)

$

$

Not available

59

Poulan 534885790

Operator Manual

Note: Not Shown.

$

$

Not available
