PT 122C-00 - Paramount Trimmer, Electric TRIMMER/BRUSHCUTTER ASSEMBLY Parts Diagram

Trimmer, Electric

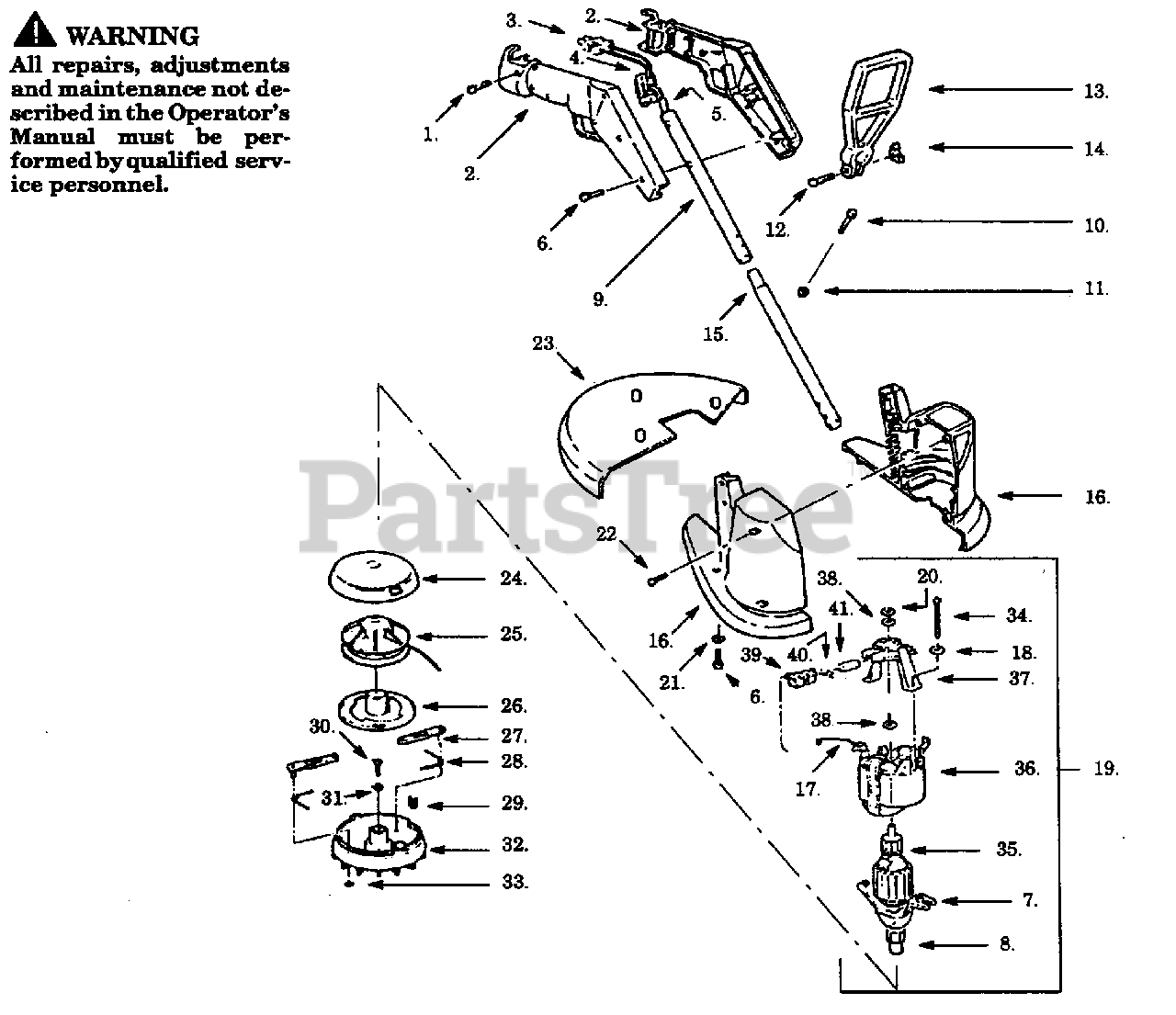

TRIMMER/BRUSHCUTTER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534826802

Screw

$

$

Not available

2

Poulan 534826522

Handle Set

$

$

Not available

3

Poulan 534936001

Plug

$

$

Not available

4

Poulan 534193003

Trigger Switch

$

$

Not available

5

Poulan 534828001

Harness Assembly

$

$

Not available

6

Poulan 534826801

Screw

$

$

Not available

7

Poulan 534872701

Endbell

$

$

Not available

8

Poulan 534918602

Shaft Adaptor

$

$

Not available

9

Poulan 534828100

Upper Handle Tube

$7.49

$

Usually ships in 3-10 days

0

10

Poulan 534829600

Screw

$

$

Not available

11

Poulan 534828300

Nut

$

$

Not available

12

Poulan 534828400

Bolt

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 534159205

Assist Handle

$

$

Not available

14

Poulan 534828500

Nut

$

$

Not available

15

Poulan 534828200

Tube

$

$

Not available

16

Poulan 534826602

Housing Set

$8.99

$

Usually ships in 3-10 days

0

17

Poulan 534810031

Lead Wire

$

$

Not available

18

Poulan 534520020

Washer

$2.49

$

Usually ships in 3-10 days

0

19

Poulan 534968403

Motor Assembly

$91.99

$

Usually ships in 3-10 days

0

20

Poulan 534246701

Retaining Ring

$1.49

$

Usually ships in 3-10 days

0

21

Poulan 534828700

Washer

$2.49

$

Usually ships in 3-10 days

0

22

Poulan 534826800

Screw

$3.99

$

In Stock, only 2 left!

0

23

Poulan 534368004

Guard

$9.99

$

Usually ships in 3-10 days

0

24

Poulan 534919200

Cover

$

$

Not available

25

Poulan 952710536

Spool w/Line

$

$

Not available

26

Poulan 534100640

Cam

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 534918800

Arm

$

$

Not available

28

Poulan 534908501

Spring

$2.49

$

Usually ships in 3-10 days

0

29

Poulan 534918500

Line Saver

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 534978600

Screw

$2.49

$

Usually ships in 3-10 days

0

31

Poulan 534908700

Washer

$

$

Not available

32

Poulan 534972601

Housing Ass'y. (Inc. 27,28,29,32,33)

$

$

Not available

33

Poulan 534400700

Nut

$2.49

$

Usually ships in 3-10 days

0

34

Poulan 534500261

Screw

$

$

Not available

35

Poulan 534367600

Armature/End Bell

$

$

Not available

36

Poulan 534367803

Field Ass'y

$

$

Not available

37

Poulan 534872601

Endbell

$4.99

$

Usually ships in 3-10 days

0

38

Poulan 534494616

Washer

$2.49

$

Usually ships in 3-10 days

0

39

Poulan 534260007

Brush Holder Ass'y

$

$

Not available

40

Poulan 534570009

Spring

$

$

Not available

41

Poulan 534200018

Brush

$

$

Not available
