PT 1200-00 - Paramount Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

Trimmer, Electric

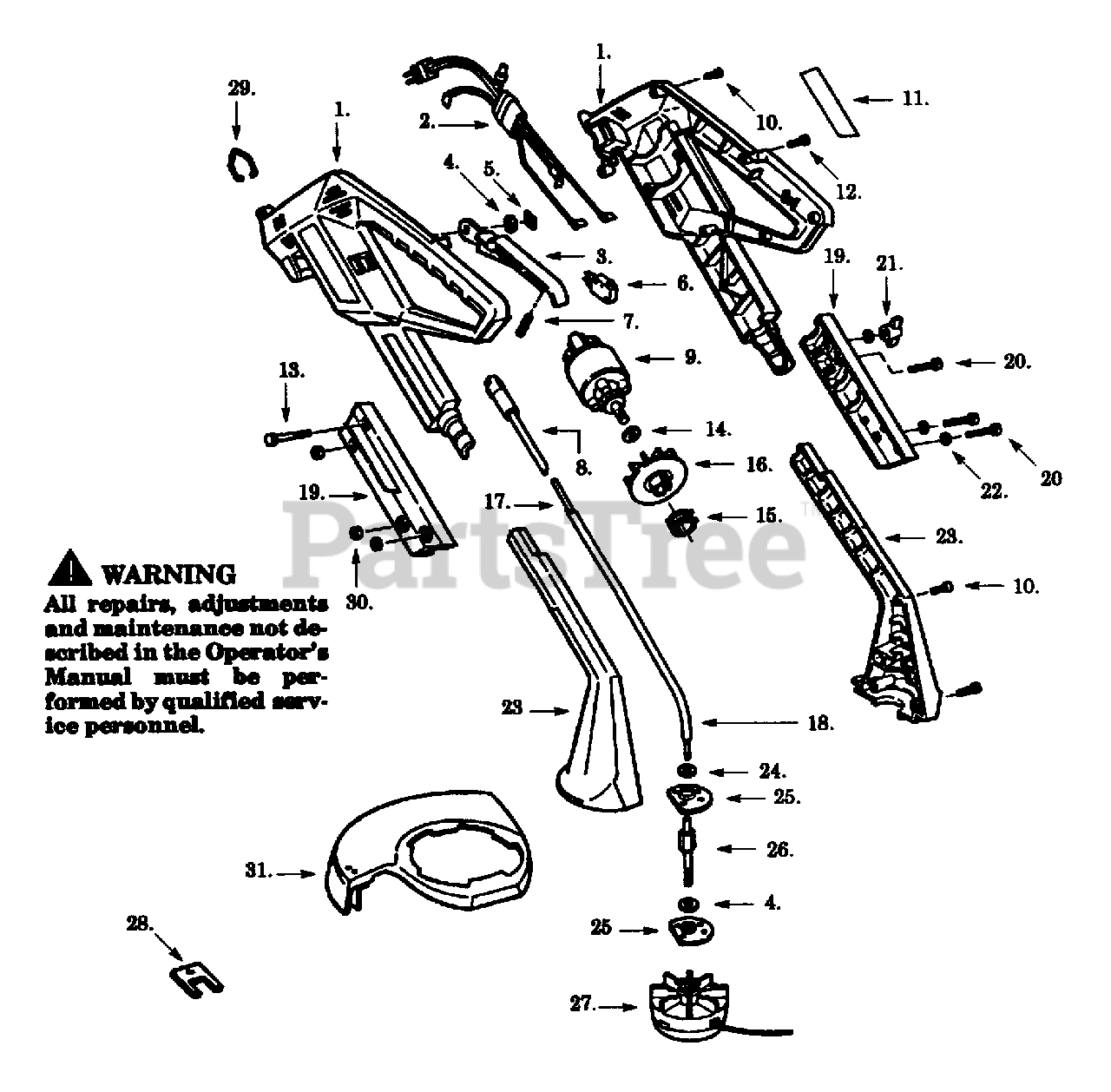

TRIMMER ASSEMBLY Parts Diagram

  • Title
1

Poulan 534787902

Model PT1000-00,PT1200-00,PT1000-01A

$27.99

$

Usually ships in 3-10 days

0

1

Poulan 534982300

Model PT1000-01,PT1200-01

$

$

Not available

2

Poulan 534789301

Harness Ass'y.

$

$

Not available

3

$2.49

$

Usually ships in 3-10 days

0

4

Poulan 534228802

Washer, (As required)

$

$

Not available

5

Poulan 534790800

Push Nut

$1.49

$

Usually ships in 3-10 days

0

6

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 534790700

Trigger Spring

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 534788905

Upper Sleeve Model PT1000-01,PT1200-01, PT1000-01A

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 534768301

Motor Ass'y.

$91.99

$

Usually ships in 3-10 days

0

10

$

$

Not available

11

Poulan 534798700

Warning Label (Not a serviceable part)

$

$

Not available

12

$

$

Not available

13

$2.49

$

Usually ships in 3-10 days

0

14

$2.49

$

Usually ships in 3-10 days

0

15

Poulan 534560103

Fan Clamp Model PT1000-00,PT1200-00 Only

$2.49

$

Usually ships in 3-10 days

0

$

$

Not available

17

Poulan 534788505

Model PT1000-00,PT1200-00

$14.99

$

Usually ships in 3-10 days

0

17

Poulan 534901003

Model PT1000-01,PT1200-01,PT1000-01A

$21.99

$

Usually ships in 3-10 days

0

18

Poulan 534788902

Model PT1000-00,PT1200-00

$

$

Not available

18

Poulan 534788903

Model PT1000-01,PT1200-01,PT1000-01A

$

$

Not available

19

Poulan 534788102

Housing Set

$

$

Not available

20

$2.49

$

Usually ships in 3-10 days

0

$

$

Not available

22

$

$

Not available

23

Poulan 534788005

Spindle Housing Set

$18.99

$

Usually ships in 3-10 days

0

24

Poulan 534636002

Felt Washer

$2.49

$

Usually ships in 3-10 days

0

25

Poulan 534790600

Bearing Holder

$

$

Not available

26

Poulan 534789901

Shaft Adapter

$10.99

$

Usually ships in 3-10 days

0

27

Poulan 534167005

Model PT1000-00,PT1200-00

$

$

Not available

27

Poulan 534167011

Model PT1000-01,PT1200-01,PT1000-01A

$91.99

$

Usually ships in 3-10 days

0

28

Poulan 534166800

Spanner Wrench

$

$

Not available

29

$2.49

$

Usually ships in 3-10 days

0

$3.49

$

In Stock, Qty 6

0

31

Poulan 534337100

Model PT1000-00,PT1200-00

$

$

Not available

31

Poulan 534790200

Model PT1000-01,PT1200-01

$12.99

$

Usually ships in 3-10 days

0

31

Poulan 534954300

Model PT1000-01A

$2.49

$

Usually ships in 3-10 days

0
