PT 1000-01 - Paramount Trimmer, Electric BRUSH ASSEMBLY Parts Diagram

Trimmer, Electric

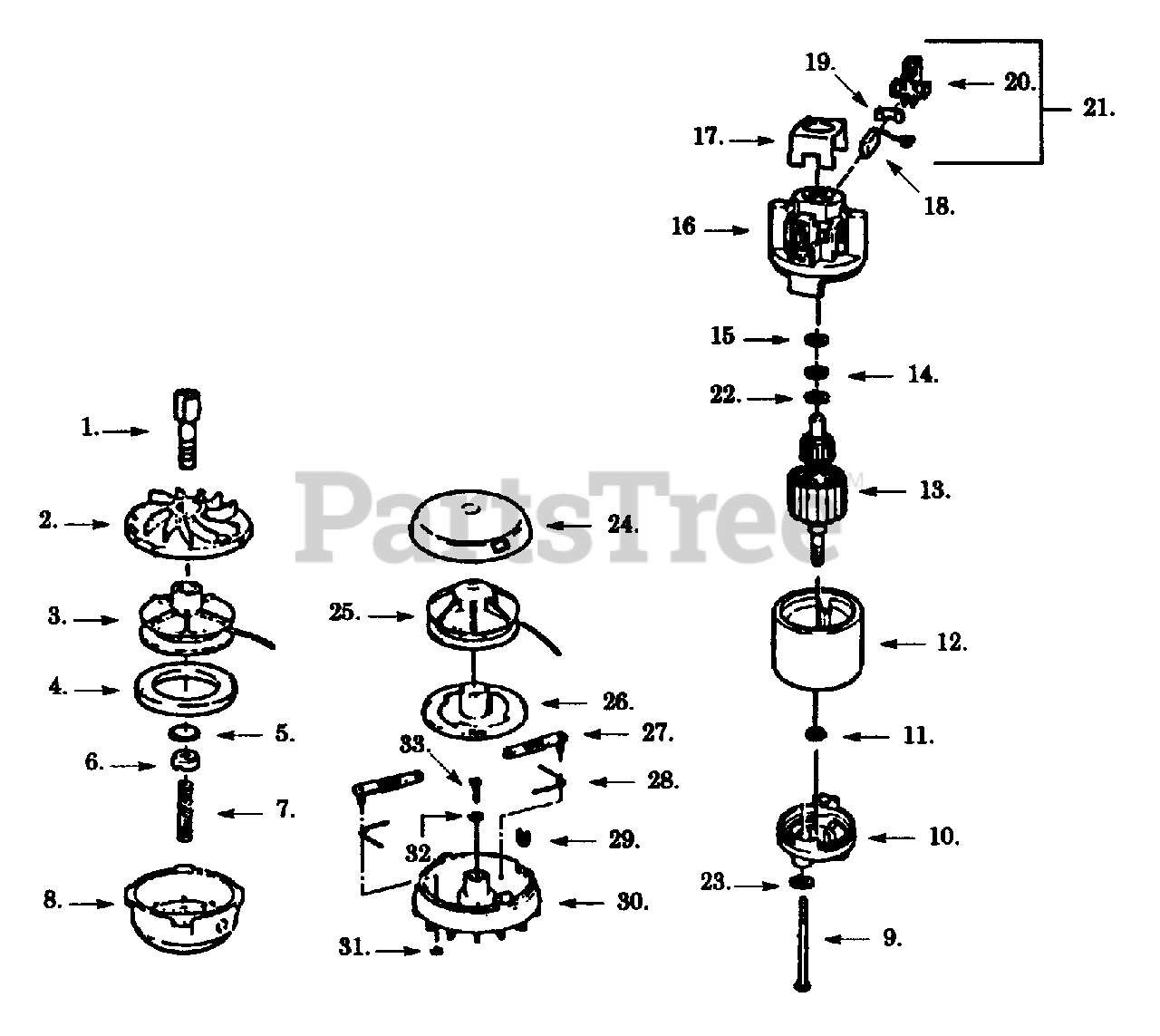

BRUSH ASSEMBLY Parts Diagram

  • Title

1

Poulan 534787800

Shaft Adapter-Model PT1000-00,PT1200-00

$

$

Not available

2

Poulan 534167215

Rear Plate

$

$

Not available

3

Poulan 534167805

PT1000-00

$

$

Not available

3

Poulan 534167815

PT1200-00

$

$

Not available

4

Poulan 534167700

Foam Pad

$

$

Not available

5

Poulan 534316200

O-Ring

$1.49

$

In Stock, only 1 left!

0

6

Poulan 534166700

Adapter Nut

$3.99

$

In Stock, only 1 left!

0

7

Poulan 534819200

Spring

$

$

Not available

8

Poulan 534167935

Hub Ass'y.

$

$

Not available

9

Poulan 534228703

Screw

$

$

Not available

10

Poulan 534207101

Endbell Ass'y. (Drive)

$

$

Not available

11

Poulan 534228800

Washer

$2.49

$

Usually ships in 3-10 days

0

12

Poulan 534227004

Field Ass'y.

$27.99

$

Usually ships in 3-10 days

0

13

Poulan 534767701

Armature Ass'y.

$42.99

$

Usually ships in 3-10 days

0

14

Poulan 534228802

Washer, (As required)

$

$

Not available

15

Poulan 534238903

Washer

$

$

Not available

16

Poulan 534227501

Endbell Ass'y. (Brush)

$

$

Not available

17

Poulan 534226000

Insulator

$

$

Not available

18

Poulan 534227800

Brush

$

$

Not available

19

Poulan 534228000

Brush Spring

$

$

Not available

20

Poulan 534227700

Brush Holder

$

$

Not available

21

Poulan 534450400

Brush Kit (Incl.18-20)

$

$

Not available

22

Poulan 534246700

E Clip

$1.49

$

Usually ships in 3-10 days

0

23

Poulan 534747002

E Clip

$2.49

$

Usually ships in 3-10 days

0

24

Poulan 534919200

Cover

$

$

Not available

25

Poulan 534919001

Spool w/Line

$7.49

$

Usually ships in 3-10 days

0

26

Poulan 534100640

Cam

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 534918800

Arm

$

$

Not available

28

Poulan 534908501

Spring

$2.49

$

Usually ships in 3-10 days

0

29

Poulan 534918500

Line Saver

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 534972601

Hub

$

$

Not available

31

Poulan 534400700

Nut

$2.49

$

Usually ships in 3-10 days

0

32

Poulan 534908700

Washer

$

$

Not available

33

Poulan 534978600

Screw

$2.49

$

Usually ships in 3-10 days

0
