PSZ 2500 - RedMax Pole Saw (SN: 00000479 - 50099999) (2003-12) 032 - DRIVE UNIT/CUTTING UNIT Parts Diagram

Pole Saw

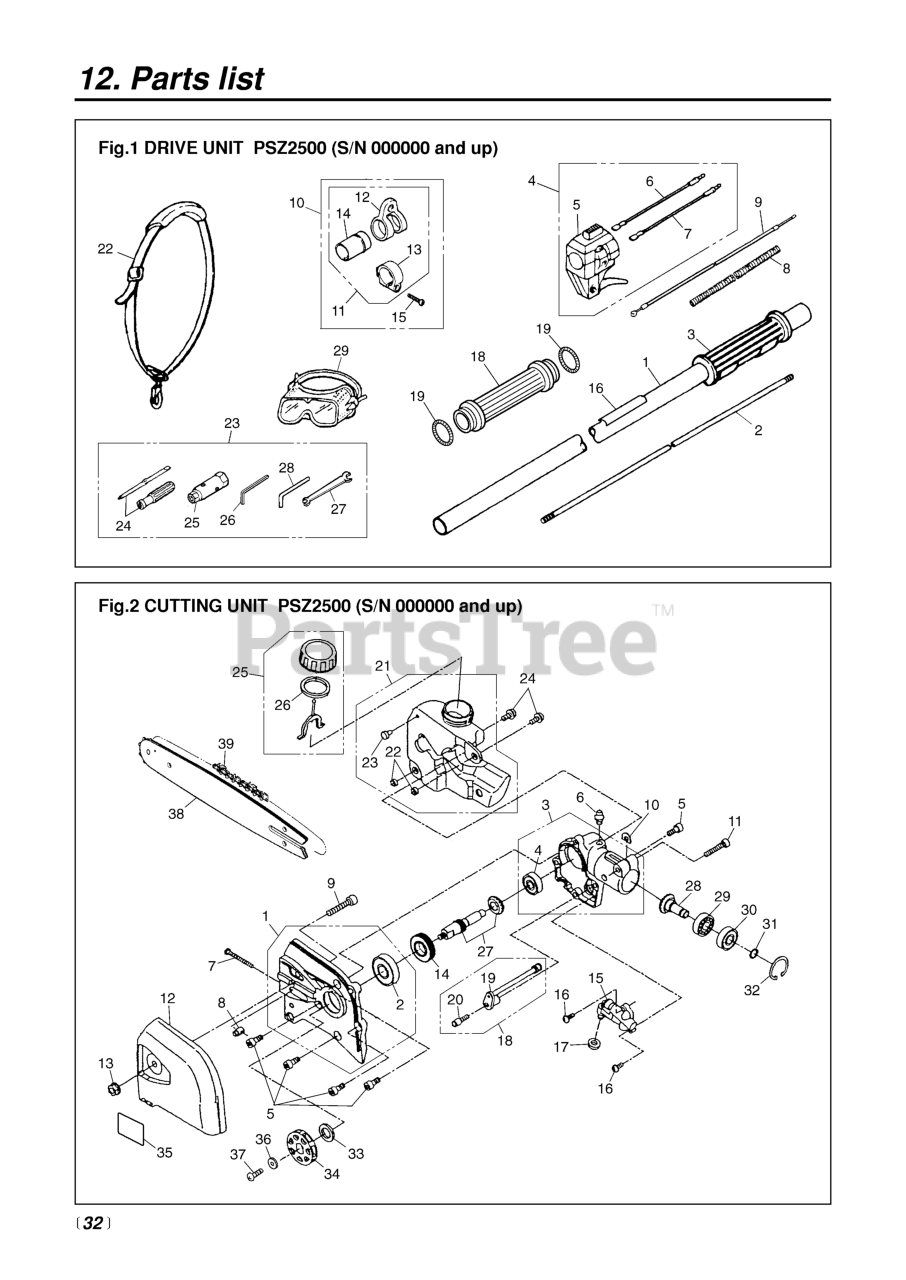

032 - DRIVE UNIT/CUTTING UNIT Parts Diagram

  • Title

1-1

RedMax T300212101

PIPE COMP (REPLACES -12100)
(Superseded to 521803001)

$

$

Not available

1-2

RedMax 352012213

SHAFT (RPLS -12212)
(Superseded to 514344201)

$53.99

$

Usually ships in 3-10 days

0

1-3

RedMax 644211332

GRIP
(Superseded to 515633801)

$26.99

$

Usually ships in 3-10 days

0

1-4

RedMax T300212202

T3002-12203
(Superseded to 521529701)

$

$

Not available

1-5

RedMax 611014412

LEVER (USE 848-8R2-0313)
(Superseded to 521529601)

$

$

Not available

1-6

RedMax T300212220

CORD (A), BLACK
(Superseded to 521803401)

$8.49

$

In Stock, only 1 left!

0

1-7

RedMax T300212230

CORD (B), RED
(Superseded to 521803501)

$5.99

$

Usually ships in 3-10 days

0

1-8

RedMax T300212240

TUBE (RPLS 4900-72141)
(Superseded to 512497101)

$4.99

$

Usually ships in 3-10 days

0

1-9

RedMax T300283100

CABLE (RPLS 5580-83100)
(Superseded to 512498601)

$18.99

$

Usually ships in 3-10 days

0

1-10

RedMax 642017300

HANGER ASSEMBLY
(Superseded to 521466301)

$

$

Not available

1-11

RedMax 642017400

HANGER COMPLETE
(Superseded to 521466401)

$14.99

$

Usually ships in 3-10 days

0

1-12

RedMax 936617110

HANGER
(Superseded to 515903601)

$

$

Not available

1-13

RedMax 936617120

CLAMP
(Superseded to 515903701)

$

$

Not available

1-14

RedMax 642017410

SLEEVE
(Superseded to 515626001)

$2.49

$

Usually ships in 3-10 days

0

1-15

RedMax 026390525

SCREW, M5 x 25
(Superseded to 516113401)

$

$

Not available

1-16

RedMax 848A5290R3

PLATE, NAME

$6.31

$

Usually ships in 3-10 days

0

1-18

RedMax 644211332

GRIP
(Superseded to 515633801)

$26.99

$

Usually ships in 3-10 days

0

1-19

RedMax 613011341

SPRING
(Superseded to 515540501)

$4.99

$

Usually ships in 3-10 days

0

1-22

RedMax T330017100

STRAP ASSY.
(Superseded to 521651101)

$15.99

$

In Stock, only 2 left!

0

1-23

RedMax T300291000

TOOL SET

$15.97

$

Usually ships in 3-10 days

0

1-24

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

1-25

RedMax T300291310

SOCKET
(Superseded to 521804801)

$

$

Not available

1-26

RedMax 0900700425

WRENCH (TOOL)

$0.75

$

Usually ships in 3-10 days

0

1-27

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0

1-28

RedMax 354091110

BAR
(Superseded to 521176101)

$3.49

$

Usually ships in 3-10 days

0

1-29

RedMax T300291190

GOGGLE
(Superseded to 510989401)

$

$

Not available

2-1

RedMax 848A526211

848-A52-9810
(Superseded to 521536901)

$136.99

$

Usually ships in 3-10 days

0

2-2

RedMax 0600406001

BEARING
(Superseded to 506610101)

$11.99

$

Usually ships in 3-10 days

0

2-3

RedMax T307313200

GEARCASE COMP (RIGHT)
(Superseded to 521808901)

$

$

Not available

2-4

RedMax 0600200627

BEARING

$5.20

$

Usually ships in 3-10 days

0

2-5

RedMax 0125230512

BOLT, M5 x 12
(Superseded to 516070401)

$

$

Not available

2-6

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

2-7

RedMax T307313310

SCREW
(Superseded to 521809101)

$4.99

$

Usually ships in 3-10 days

0

2-8

RedMax T307313320

NUT
(Superseded to 521809201)

$5.99

$

In Stock, only 2 left!

0

2-9

RedMax 0125230630

BOLT, M6 x 30
(Superseded to 522655401)

$3.49

$

Usually ships in 3-10 days

0

2-10

RedMax T307313250

SHIM
(Superseded to 521809001)

$

$

Not available

2-11

RedMax 324511350

BOLT

$0.70

$

Usually ships in 3-10 days

0

2-12

RedMax T307313510

COVER, CHAIN
(Superseded to 521809701)

$51.99

$

Usually ships in 3-10 days

0

2-13

RedMax T307313520

NUT
(Superseded to 521809801)

$3.49

$

In Stock, only 4 left!

0

2-14

RedMax T307313560

GEAR, WORM
(Superseded to 521810201)

$5.99

$

Usually ships in 3-10 days

0

2-15

RedMax T307313550

PUMP ASSY, OIL
(Superseded to 521810101)

$

$

Not available

2-16

RedMax 026330410

SCREW, M4 x 10

$0.17

$

Usually ships in 3-10 days

0

2-17

RedMax T307313580

GASKET
(Superseded to 521810301)

$

$

Not available

2-18

RedMax T307313700

PIPE ASSY, OIL
(Superseded to 521810501)

$31.99

$

Usually ships in 3-10 days

0

2-19

RedMax T307313710

PIPE, OIL
(Superseded to 521810601)

$

$

Not available

2-20

RedMax T307313720

FILTER
(Superseded to 521810701)

$

$

Not available

2-21

RedMax 848A525511

TANK ASSY, OIL
(Superseded to 521536701)

$36.99

$

Usually ships in 3-10 days

0

2-22

RedMax T307313820

COLLAR
(Superseded to 521810901)

$

$

Not available

2-23

RedMax T307313830

VALVE
(Superseded to 521811001)

$

$

Not available

2-24

RedMax T307313860

SCREW, M5 X 12
(Superseded to 521811101)

$

$

Not available

2-25

RedMax T307313900

CAP ASSY, OIL
(Superseded to 521811201)

$7.99

$

Usually ships in 3-10 days

0

2-26

RedMax T307313920

GASKET, OIL CAP
(Superseded to 521811301)

$

$

Not available

2-27

RedMax T307313370

SHAFT, GEAR
(Superseded to 521809501)

$

$

Not available

2-28

RedMax T307313380

GEAR, BEVEL
(Superseded to 521809601)

$

$

Not available

2-29

RedMax 0600000609

BEARING (RPLS T3403-13530)
(Superseded to 505169201)

$9.99

$

In Stock, Qty 5

0

2-30

RedMax 0600200609

BEARING

$5.20

$

Usually ships in 3-10 days

0

2-31

RedMax 321013330

RING, SNAP (RPLS T3300-13330)
(Superseded to 520910501)

$3.49

$

Usually ships in 3-10 days

0

2-32

RedMax 0406502412

RING, SNAP, M24 x 1.2
(Superseded to 505169401)

$3.99

$

Usually ships in 3-10 days

0

2-33

RedMax T307313530

COLLAR
(Superseded to 521809901)

$

$

Not available

2-34

RedMax T307313540

SPROCKET
(Superseded to 521810001)

$31.99

$

Usually ships in 3-10 days

0

2-35

RedMax T307313590

LABEL (PSZ2500)
(Superseded to 521810401)

$

$

Not available

2-36

RedMax T307313350

WASHER
(Superseded to 521809301)

$

$

Not available

2-37

RedMax T307313360

SCREW
(Superseded to 521809401)

$2.49

$

Usually ships in 3-10 days

0

2-38

RedMax 109666

PS0011

$

$

Not available

2-39

RedMax 90SG44X

12
(Superseded to 574102601)

$

$

Not available
