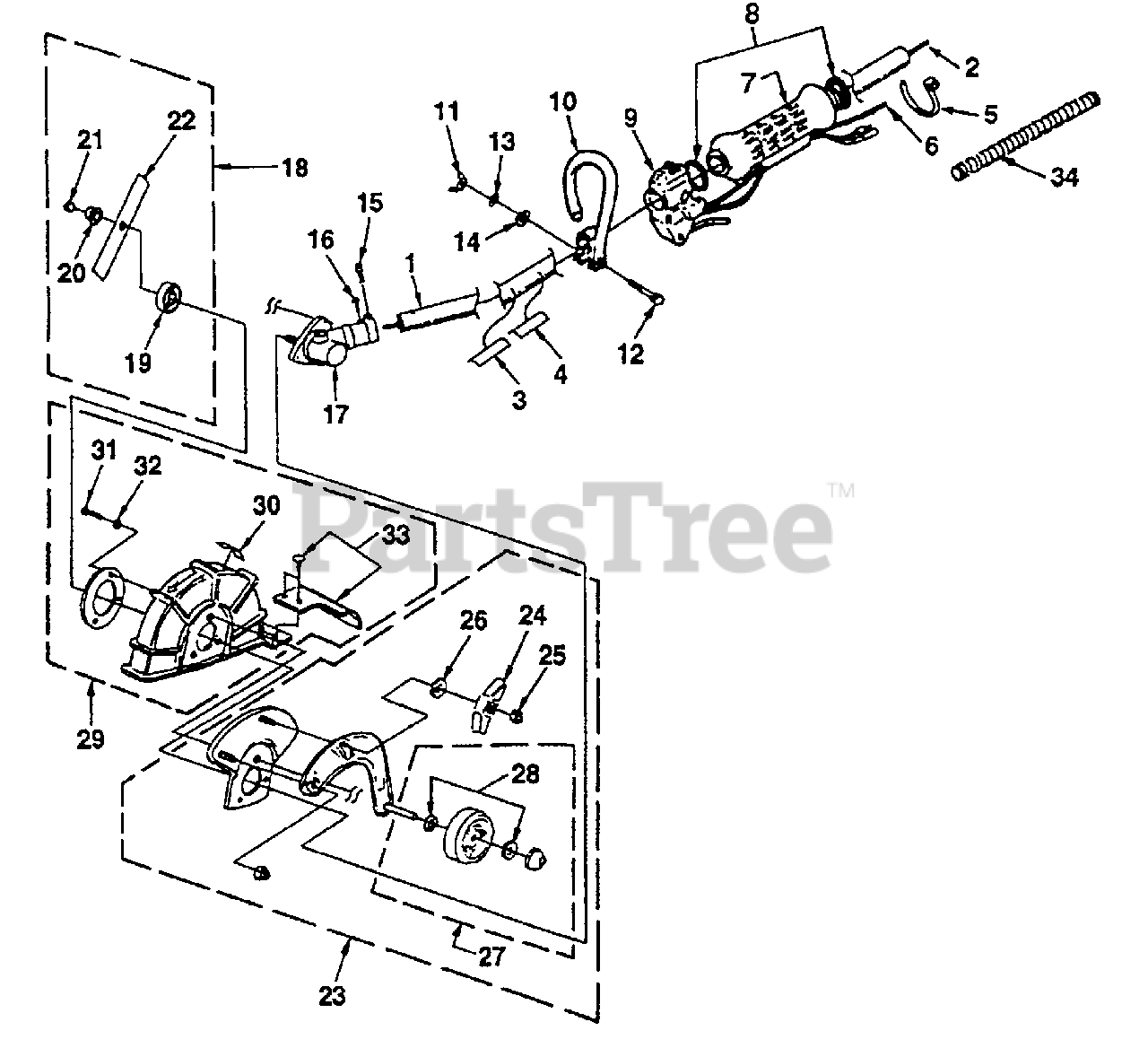

PSE 3000 (UT-20610-R) - Homelite String Trimmer Handles, Boom And Head Parts Diagram

String Trimmer

Handles, Boom And Head Parts Diagram

  • Title
1

Homelite A06278

DRIVESHAFT HOUSING

Note: Includes Item Nos. 2-4.

$

$

Currently unavailable

2

Homelite 98818

SHAFT-Flexible

$

$

Not available

3

Homelite 02985

DECAL-Warning
(Superseded to 983751001)

$

$

Not available

4

Homelite 04458

DECAL-Start Inst.
(Superseded to UP04130)

$

$

Not available

5

Homelite 46840

TIE-Cable

$

$

Not available

6

Homelite A03004

THROTTLE CABLE

$

$

Not available

7

Homelite A06261

HANDLE GRIP KIT

Note: Includes Item #8.

$32.99

$

Usually ships in 3-7 days

0

8

Homelite 00737

SPRING-Tension

$

$

Not available

9

Homelite A00738

THROTTLE & SWITCH
(Superseded to UP06617)

$

$

Not available

10

Homelite A04709

HANDLE-Front

Note: Includes Item Nos. 11-14.

$

$

Not available

11

Homelite 93992

NUT-Wing

$

$

Not available

12

Homelite 80295

SCREW-Cap Hex Hd. (1/4-20 X 2")

$4.99

$

Usually ships in 3-7 days

0

13

Homelite 83009

WASHER-Lock

$8.49

$

Usually ships in 3-7 days

0

14

Homelite 84003

WASHER-Flat

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 82586

SCREW-Cap Socket Hd. (1/4-20 X 7/8")

$4.99

$

Usually ships in 3-7 days

0

16

Homelite 88049

SCREW-Sems Hex Hd. (10-24 X 1/2")

$

$

Not available

17

Homelite A04151

GEAR HEAD
(Superseded to UP06866A)

$111.99

$

Usually ships in 3-7 days

0

18

Homelite A06281

BLADE KIT
(Superseded to UP06879)

Note: Includes Item Nos. 19-22.

$24.99

$

Usually ships in 3-7 days

0

19

Homelite 04168A

WASHER-Flanged
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

20

Homelite 04259

WASHER-Flanged (Lower)

$

$

Not available

21

Homelite 04277

NUT-Lock
(Superseded to 678018001)

$

$

Not available

22

Homelite D04359

BLADE, 2" X 9" (Qty.-2)

$

$

Currently unavailable

23

Homelite A06280

SUPPORT ARM ASSEMBLY
(Superseded to UP06881)

Note: Includes Item Nos. 24-28.

$64.99

$

Usually ships in 3-7 days

0

24

Homelite 06364

KNOB-Adjusting
(Superseded to UP04132)

$

$

Not available

25

Homelite 81162

NUT-Hex

$

$

Not available

26

Homelite 84010

WASHER-Flat
(Superseded to PS84010)

$

$

Not available

27

Homelite A06279

WHEEL KIT
(Superseded to UP06882)

$

$

Not available

28

Homelite 84010

WASHER-Flat
(Superseded to PS84010)

$

$

Not available

29

Homelite A06277

GUARD KIT
(Superseded to UP06738)

Note: Includes Item Nos. 30-33.

$

$

Not available

30

Homelite 03871

DECAL-Warning
(Superseded to UP04532)

$

$

Not available

31

Homelite 82593

SCREW-Hex Hd (10-24 X 5/8")

$4.99

$

Usually ships in 3-7 days

0

32

Homelite 83046

WASHER-Lock (#10)

$

$

Not available

33

Homelite A06296

FLAP KIT
(Superseded to UP06883)

$

$

Not available

34

Homelite 00684

SLEEVING (Cut length to 10")

$

$

Not available
