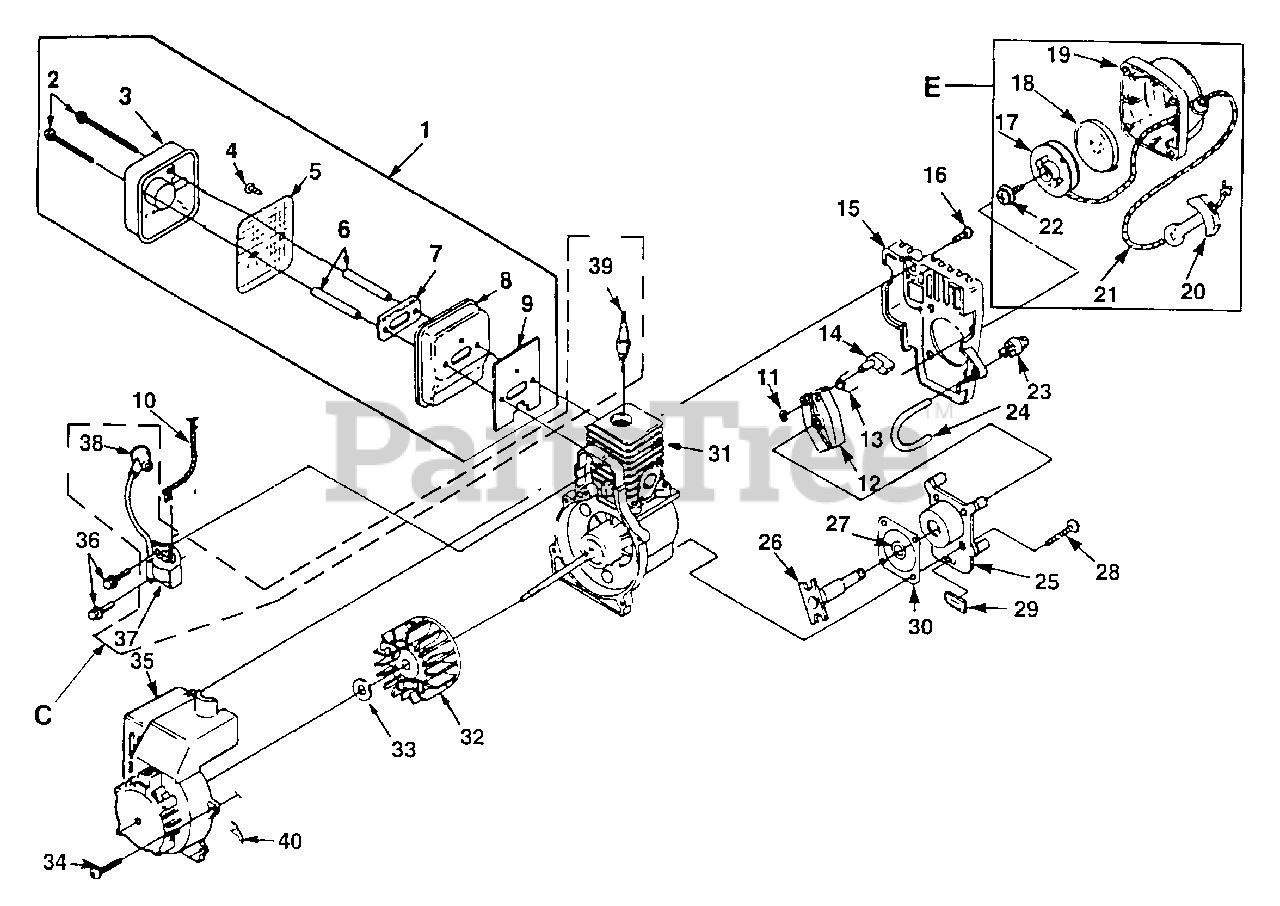

PSE 3000 (UT-20610-C) - Homelite String Trimmer Starter, Ignition & Muffler Parts Diagram

String Trimmer

Starter, Ignition & Muffler Parts Diagram

  • Title
1

Homelite A04837

MUFFLER-Complete

$

$

Not available

2

Homelite 88060

SCREW-Sems Hex Hd (10-24 X 2 1/5")
(Superseded to 660673001)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite A04786

COVER-Muffler

$

$

Not available

4

$

$

Not available

5

Homelite 04790

SCREEN-Spark

$4.99

$

Usually ships in 3-7 days

0

6

Homelite 04785

SPACER-Muffler

$

$

Not available

7

Homelite 98783

PLATE-Reinforcing

$

$

Not available

8

Homelite 04710

MUFFLER BODY

$28.99

$

Usually ships in 3-7 days

0

9

Homelite 98786C

GASKET-Muffler

$

$

Not available

10

Homelite A00681

LEAD-Electrical

$

$

Not available

11

Homelite 0401804

RETAINING RING
(Superseded to UP04879)

$

$

Not available

12

Homelite 0401801

CUP-Starter
(Superseded to UP04879)

$

$

Not available

13

Homelite 0401803

SPRING-Starter
(Superseded to UP04879)

$

$

Not available

14

Homelite 0401802

PAWL-Starter
(Superseded to UP04879)

$

$

Not available

15

Homelite 04023

COWLING-Engine
(Superseded to UP05884)

$

$

Not available

16

Homelite 82541

SCREW-Thread E Forming (#10 X 1/2")

$1.99

$

In Stock, only 3 left!

0

E

Homelite A04069

STARTER-Complete

$

$

Not available

17

Homelite 0406905

PULLEY-Starter
(Superseded to UP04880)

$96.99

$

Usually ships in 3-7 days

0

18

Homelite 0406906

SPRING-Recoil
(Superseded to UP04871)

$

$

Not available

19

Homelite 0406901

HOUSING-Starter

$

$

Not available

20

Homelite 0406902

GRIP-Starter

$

$

Not available

21

Homelite 0406903

ROPE-Starter

$

$

Not available

22

Homelite 0406904

SCREW-Set

$

$

Not available

23

Homelite 01183

BULB-Air Purge
(Superseded to 300780002)

$

$

Not available

24

Homelite 0143932

RUBBER TUBING (8")
(Superseded to UP03825)

$

$

Not available

25

Homelite A040172

CRANKCASE COVER
(Superseded to UP04878)

Note: Included w/A-06262-B

$

$

Not available

26

Homelite 04016B

SHAFT-Starter

$

$

Not available

27

$

$

Not available

28

Homelite 82538

SCREW-Thread Form (10-24 X 3/4")

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 98792

BUMPER-Rubber

$

$

Not available

30

Homelite 98767A

GASKET-Crankcase

$

$

Not available

31

SHORT BLOCK

$

$

Not available

32

Homelite A04158

ROTOR & STARTER PAWL
(Superseded to UP03856)

$

$

Not available

33

Homelite 95479A

WASHER-Flat

$

$

Not available

34

Homelite 82538

SCREW-Thread Form (10-24 X 3/4")

$1.99

$

Usually ships in 3-7 days

0

35

Homelite A06982

HOUSING-Engine w/Decals

$

$

Not available

36

Homelite 82540

SCREW-Thread Form (8-32 X 1")

$2.49

$

Usually ships in 3-7 days

0

C

Homelite A04446

IGNITION KIT
(Superseded to 984873001)

$

$

Not available

37

$

$

Not available

38

Homelite A33055

TERMINAL & COVER

$

$

Not available

39

Homelite 96169S

SPARK PLUG (DJ-7Y)
(Superseded to UP03883)

$3.49

$

In Stock, only 3 left!

0

40

Homelite 02851

TAB-Male

$

$

Not available
