PSE 3000 (UT-20610-C) - Homelite String Trimmer Fuel Tank, Intake & Clutch Parts Diagram

String Trimmer

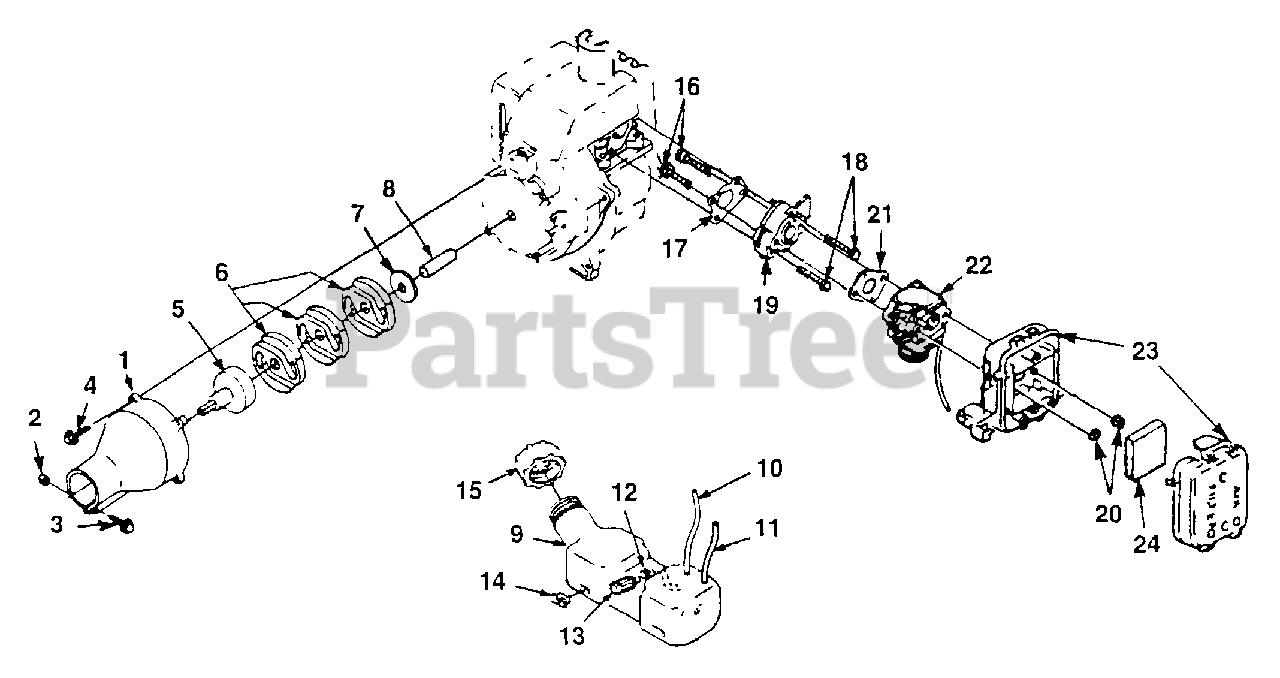

Fuel Tank, Intake & Clutch Parts Diagram

  • Title

1

Homelite A02396A

TUBE ADAPTOR KIT

$

$

Currently unavailable

2

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

3

Homelite 88054

SCREW-Sems Hex Hd (10-24 X 1 1/4")
(Superseded to UP04267)

$

$

Not available

4

Homelite 88052

SCREW-Sems Hex Hd (10-24 X 7/8")

$4.99

$

Usually ships in 3-7 days

0

5

Homelite A04655

DRUM & CONNECTOR

$

$

Currently unavailable

6

Homelite 00242

CLUTCH

$

$

Not available

7

Homelite 03372

WASHER-Clutch

$

$

Not available

8

Homelite 035661

SPACER
(Superseded to PS035661)

$5.49

$

Usually ships in 3-7 days

0

9

Homelite A04658

FUEL TANK
(Superseded to UP06596)

$

$

Currently unavailable

10

Homelite 0143917

TUBING-Rubber (4 1/4")
(Superseded to 0143918)

$

$

Not available

11

Homelite 9477230

TUBING-Rubber (7 1/2")
(Superseded to UP05860)

$51.99

$

Usually ships in 3-7 days

0

12

Homelite 98268A

CLAMP-Wire

$

$

Currently unavailable

13

Homelite 49422

FILTER-Fuel
(Superseded to PS03380)

$

$

Not available

14

Homelite 98792

BUMPER-Rubber

$

$

Not available

15

Homelite A00982A

CAP-Fuel Tank

$

$

Currently unavailable

16

Homelite 04474

SCREW-Hex Hd (10-24 X 2 1/4")

$

$

Not available

17

Homelite 00775A

GASKET-Heat Dam
(Superseded to 900950001)

$1.49

$

In Stock, only 2 left!

0

18

Homelite 825491

SCREW-Taptite, Torx (10-24 X 1")
(Superseded to UP05542)

$

$

Not available

19

Homelite 00864B

HEAT DAM
(Superseded to 00864C)

$26.99

$

Usually ships in 3-7 days

0

20

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

21

Homelite 98766A

GASKET-Carburetor
(Superseded to 900994004)

$

$

Not available

22

Homelite A02607

CARBURETOR (Walbro)

$

$

Currently unavailable

23

Homelite A04707

AIR FILTER KIT
(Superseded to A04707A)

$

$

Not available

24

Homelite D98760B

FILTER-Air
(Superseded to 98760)

$

$

Not available
