PSE 3000 (UT-20610-A) - Homelite Edger Engine Internals Parts Diagram

Edger

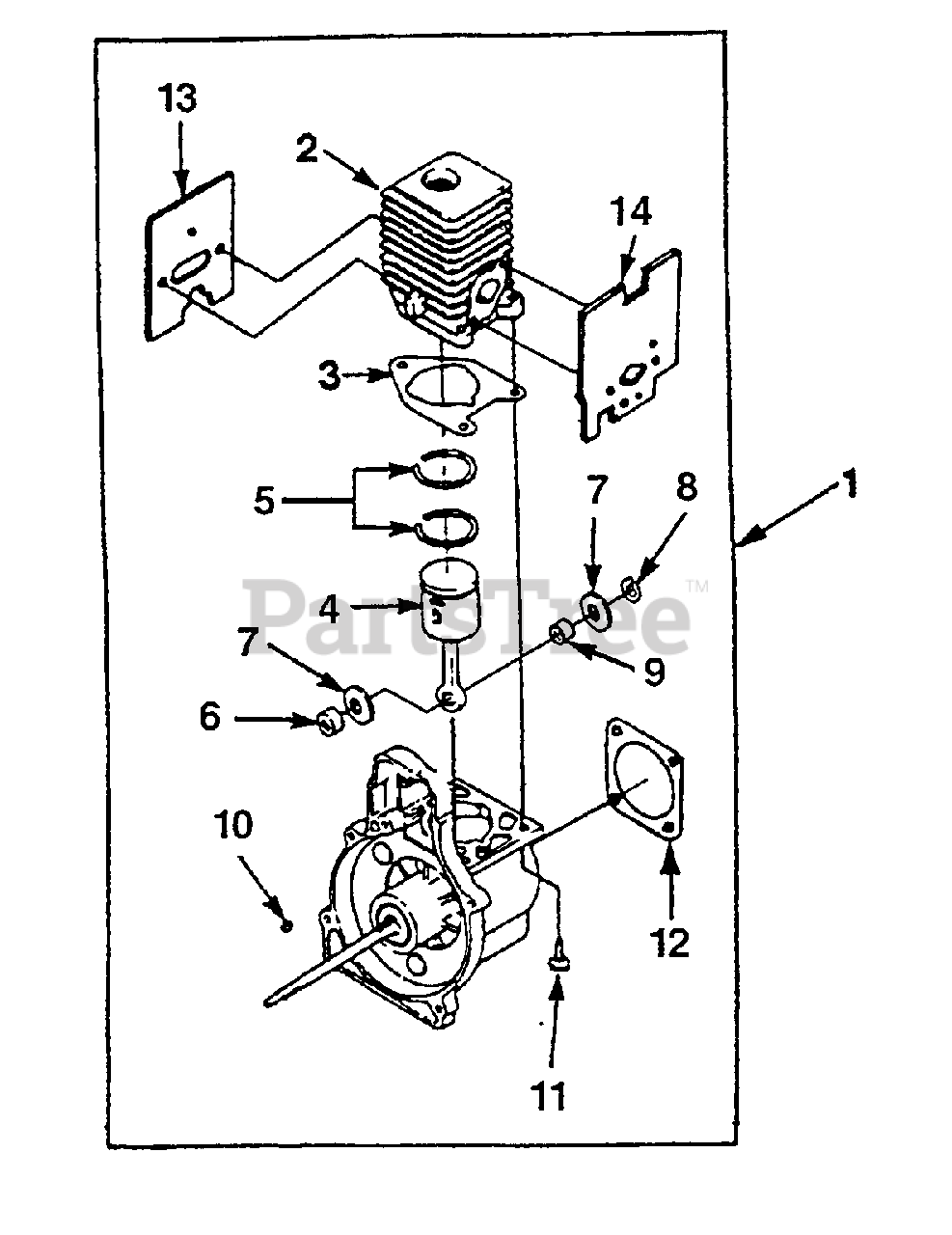

Engine Internals Parts Diagram

  • Title

1

Homelite A06262

SHORT BLOCK
(Superseded to UP00879)

$

$

Not available

2

Homelite A04740

CYLINDER & GASKET
(Superseded to UP07146)

$

$

Not available

3

Homelite 04388

GASKET-Cylinder
(Superseded to UP03857)

$

$

Not available

4

Homelite A06291

PISTON ROD
(Superseded to UP03037)

$91.99

$

In Stock, only 1 left!

0

5

Homelite 03179

RING-Piston
(Superseded to 690161005)

$

$

Not available

6

Homelite 04860

SPACER-Bearing

$

$

Not available

7

Homelite 00118

WASHER-Thrust

$

$

Not available

8

Homelite 03796

RING-Retaining

$

$

Not available

9

Homelite 02461

BEARING-Needle

$

$

Not available

10

Homelite 69250

KEY-Woodruff

$

$

Not available

11

Homelite 82568

SCREW-Torx Pan Hd. (10-24 X 3/4")
(Superseded to UP06518)

$

$

Not available

12

Homelite 98767A

GASKET-Crankcase

$

$

Not available

13

Homelite 98786C

GASKET-Muffler

$

$

Not available

14

Homelite 00775A

GASKET-Heat Dam
(Superseded to 900950001)

$1.49

$

In Stock, only 2 left!

0
