PSB 270 (961910044-00) - Husqvarna 27" Snow Blower (2010-06) DRIVE Parts Diagram

27" Snow Blower

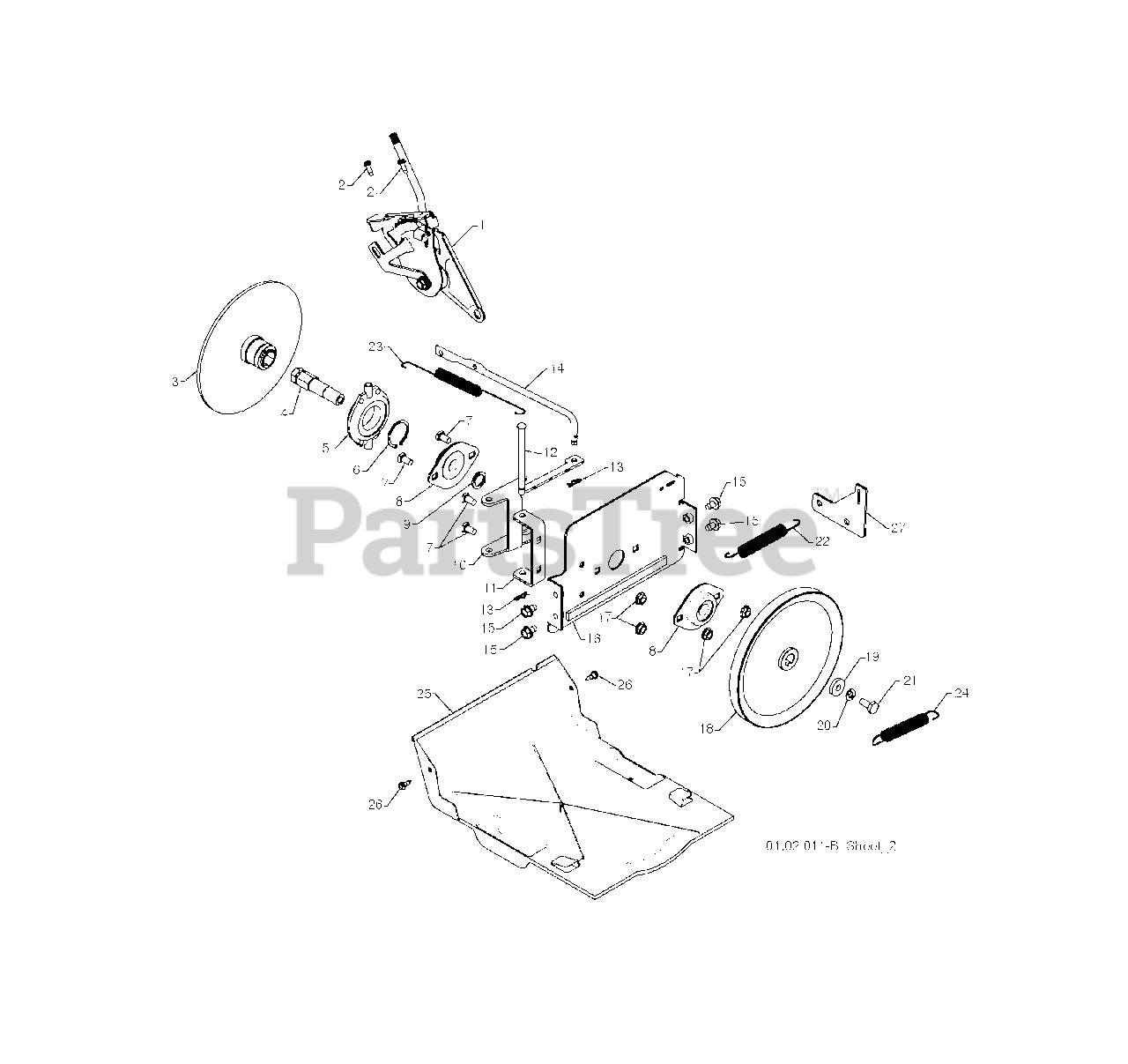

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP 532198875

HEAD ASSY SPEED
(Superseded to 532198474)

$

$

Not available

2

Electrolux/AYP 817501010

SCREW #10-24 X 5/8

$

$

Not available

3

Electrolux/AYP 532197763

DRIVE PLATE WELDMENT

$66.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532197764

SHAFT.HEX.SHORT

$14.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532175344

TRUNNION BEARING ASSY

$27.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 812000012

RETAINING RING
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 872270505

BOLT
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 532188909

BEARING FLANGE

$28.99

$

In Stock, only 4 left!

0

9

Electrolux/AYP 532182504

SPACER, BEARING

$6.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532435787

LEVER.SHIFTER.PLATE.BLACK
(Superseded to 532184077)

$12.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532435784

BRACKET.SHIFTER.SUPPORT.BLACK

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532178695

PIN, PIVOT LEVER

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532403300

ROD.CLUTCH.YELLOW.ZINC(VT)

$12.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 532435783

PLATE.DRIVE.MOUNT.BLACK
(Superseded to 532184075)

$14.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532191080

PULLEY.TRACTION.7.75

$66.99

$

In Stock, only 1 left!

0

19

Electrolux/AYP 819111507

WASHER, FLAT

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 874950512

SCREW

$4.99

$

In Stock, only 3 left!

0

22

Electrolux/AYP 532414557

SPRING.TRACTION.IDLER

$6.49

$

In Stock, only 3 left!

0

23

Electrolux/AYP 532179095

SPRING.RETURN

$6.49

$

In Stock, only 1 left!

0

24

Electrolux/AYP 532178828

SPRING, BRAKE

$6.49

$

In Stock, Qty 6

0

25

Electrolux/AYP 532410877

PAN.BOTTOM.PLASTIC

$31.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 532184471

SCREW, HEX HEAD, TAPPING

$4.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 532435772

BRACKET.TRACTION.SPRIN
(Superseded to 532416682)

$3.99

$

Usually ships in 3-10 days

0
