PSB 240 (961910035-02) - Husqvarna 24" Snow Blower (2010-06) DRIVE Parts Diagram

24" Snow Blower

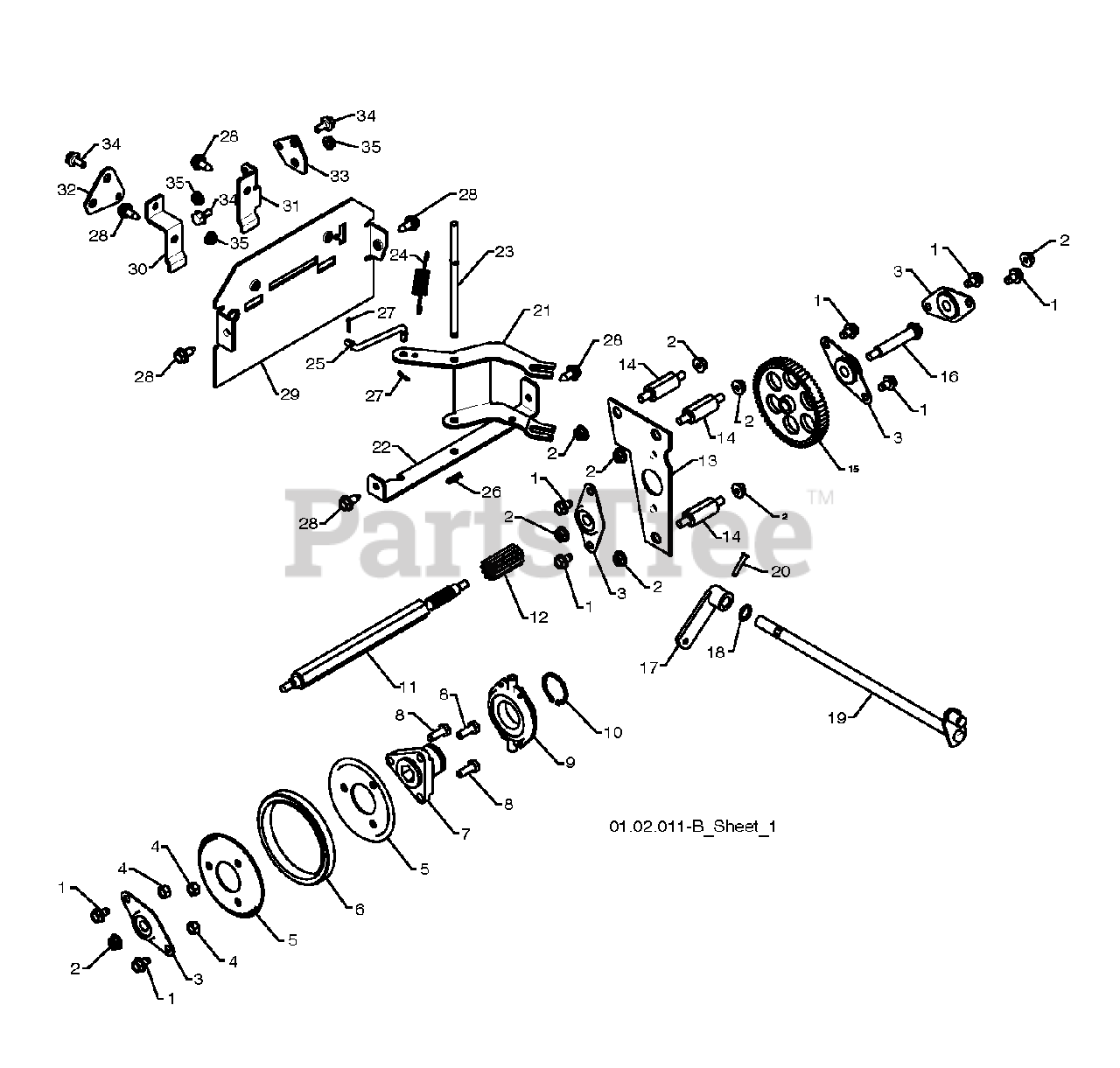

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532751153

NUT, LOCK 5/16-18

$4.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 532180017

BEARING, FLANGE

$26.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

5

Electrolux/AYP 532435789

PLATE.RUBBER.WHEEL.BLACK

$

$

Not available

6

Electrolux/AYP 532179831

RING, RUBBER WHEEL
(Superseded to 585021001)

$26.99

$

In Stock, only 4 left!

0

7

Electrolux/AYP 532178613

HUB, RUBBER WHEEL

$30.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 874760514

BOLT

$6.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532175344

TRUNNION BEARING ASSY

$27.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 812000012

RETAINING RING
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532180066

SHAFT.HEX.LONG

$

$

Not available

12

Electrolux/AYP 532180065

GEAR, PINION

$

$

Not available

13

Electrolux/AYP 532435790

PLATE.AUXILIARY.
(Superseded to 532192616)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532179270

SPACER, PLATE

$11.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532180082

GEAR, INTERMEDIATE
(Superseded to 532441417)

$265.99

$

In Stock, only 1 left!

0

16

Electrolux/AYP 532180134

SHAFT, AUXILIARY

$

$

Not available

17

Electrolux/AYP 532405485

ARM, AUGER CONTROL

$9.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 11

0

19

Electrolux/AYP 532427542

CONTROL.SHAFT.ASM
(Superseded to 532429668)

$47.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 532198580

CLEVIS PIN

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532435792

RP SHIFTER LEVER
(Superseded to 532184080)

$

$

Not available

22

Electrolux/AYP 532435793

BRACKET.SHIFT.PIVOT.BLACK

$7.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532178807

PIN, PIVOT

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 532180135

SPRING, BIAS

$6.49

$

In Stock, Qty 10

0

25

Electrolux/AYP 532187101

LINK, SPEED CONTROL

$

$

Not available

26

Electrolux/AYP 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 11

0

29

Electrolux/AYP 532416750

PLATE.REAR.SNOW.PNT

$7.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 532435797

RP BRACKET.SHIFTER.PLATE
(Superseded to 532415433)

$4.99

$

In Stock, only 1 left!

0

31

Electrolux/AYP 532435796

BRACKET.CLUTCH.PLATE
(Superseded to 532416864)

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 532435800

RP PLATE.SHIFTER.
(Superseded to 532415450)

$7.99

$

In Stock, only 3 left!

0

33

Electrolux/AYP 532435799

LATE.CLUTCH.
(Superseded to 532415435)

$2.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532402881

BOLT.SHOULDER.3/X.25

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0
