PSB 240 (961910035-02) - Husqvarna 24" Snow Blower (2010-06) AUGER HOUSING IMPELLER Parts Diagram

24" Snow Blower

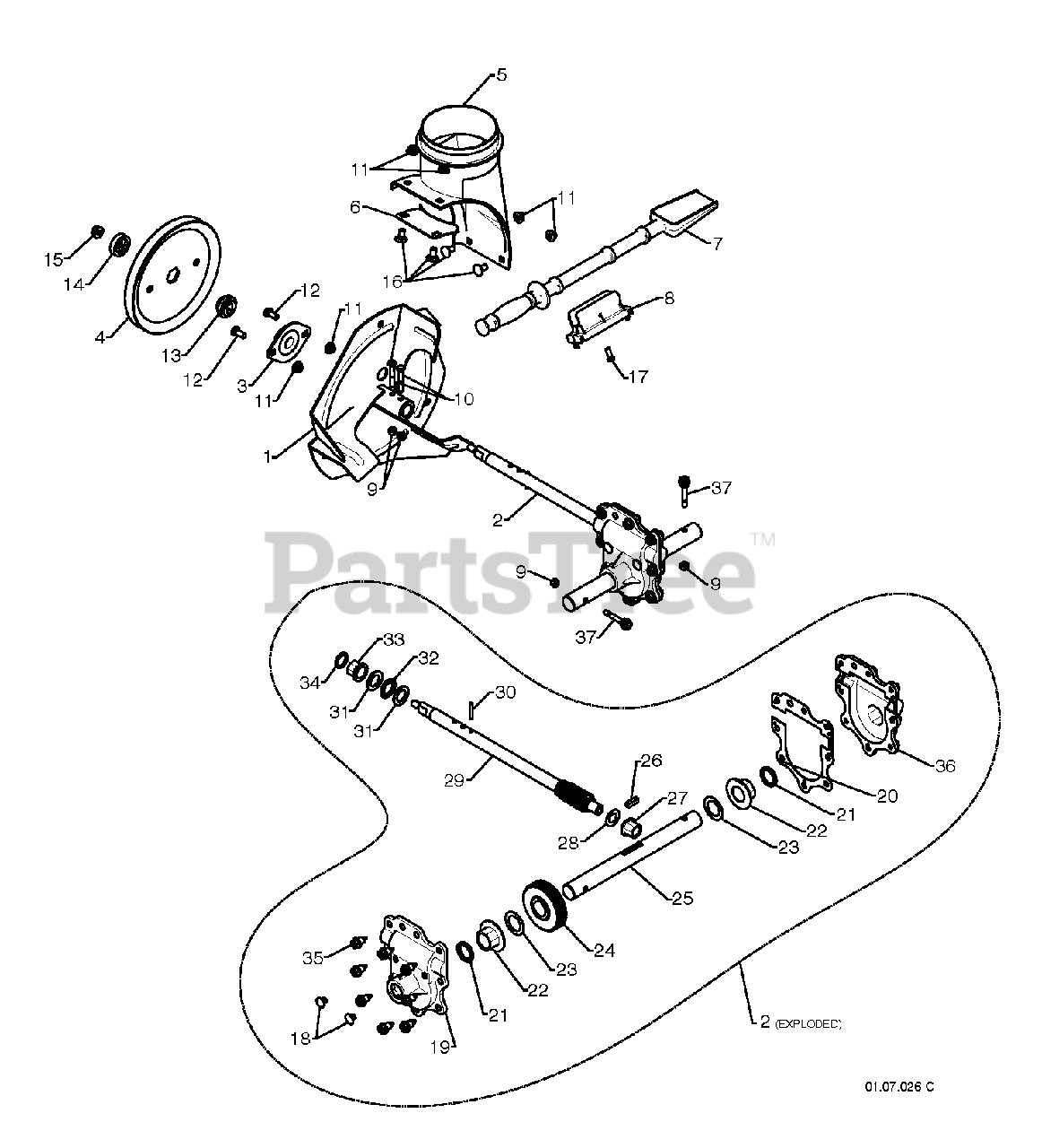

AUGER HOUSING IMPELLER Parts Diagram

  • Title

1

Electrolux/AYP 532435775

IMPELLER.WELDMENT.PNT

$78.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532427148

GEARBOX.ASM.AUGER.D-SHAFT
(Superseded to 532429659)

$279.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532188909

BEARING FLANGE

$28.99

$

In Stock, only 4 left!

0

4

Electrolux/AYP 532427146

PULLEY.FLANGE.IMPELLER

$34.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 532175322

BASE DISCHARGE CHUTE
(Superseded to 532442438)

$11.99

$

In Stock, only 3 left!

0

6

Electrolux/AYP 532436236

BRACKET.CORNER.DISCHARGE

$4.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532192199

CLEAN OUT TOOL

$34.99

$

In Stock, only 2 left!

0

8

Electrolux/AYP 532405400

CLIP.CLEANOUT.TOOL

$6.49

$

In Stock, only 1 left!

0

9

Electrolux/AYP 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 874780426

SCREW.HEX.HD1/4-20X

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532427942

NUTNYLOK.FLRANGE.5/16-18

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532427145

HUB.IMP.PULLEY.D-SHAFT

$5.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532427154

SLEEVE.IMP.PULLEY.D-SHAFT

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 532180355

BOLT.CARRIAGE.5/16-18X

$7.49

$

In Stock, Qty 13

0

17

Electrolux/AYP 532194189

SCREW.HWH.13-16-5.8.BZP

$7.49

$

In Stock, Qty 20+

0

18

Electrolux/AYP 532407760

CASE PLUG
(Superseded to 532086447)

$

$

Not available

19

Electrolux/AYP 532427302

GEAR.BOX.COVER.RIGHT.SIDE

$42.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532427345

GASKET.GEAR.BOX

$6.49

$

In Stock, only 1 left!

0

21

Electrolux/AYP 532407770

OIL SEAL
(Superseded to 532174698)

$

$

Not available

22

Electrolux/AYP 532407762

FLANGE BUSHING-1"
(Superseded to 532174701)

$

$

Not available

23

Electrolux/AYP 532174697

WASHER TRUST 1"
(Superseded to 532007396)

$

$

Not available

24

Electrolux/AYP 532407763

WORM GEAR
(Superseded to 532174659)

$279.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532407764

AUGER SHAFT
(Superseded to 532174657)

$68.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 532189282

KEY, SQUARE 1/4 X .875

$7.49

$

In Stock, only 1 left!

0

27

Electrolux/AYP 532407758

FLANGE BUSHING-5/8
(Superseded to 532174686)

$

$

Not available

28

Electrolux/AYP 532174683

WASHER, THRUST 5/8

$7.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532427147

SHAFT.IMPELLER.D-SHAFT

$121.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 532184205

PIN, ROLL 3/16 X 1-1/8
(Superseded to 7836M)

$

$

Not available

31

Electrolux/AYP 532174681

WASHER, THRUST 3/4

$14.99

$

In Stock, only 3 left!

0

32

Electrolux/AYP 532174684

BEARING TRUST 3/4

$9.99

$

In Stock, only 2 left!

0

33

Electrolux/AYP 532407769

BUSHING, FLANGE 3/4
(Superseded to 407769)

$2.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532407768

O-RING

$6.49

$

In Stock, only 2 left!

0

35

Electrolux/AYP 532407767

HEX SCREW-5/16 X 3/4
(Superseded to 532150078)

$4.99

$

In Stock, Qty 20+

0

36

Electrolux/AYP 532427317

GEAR.BOX.COVER.LEFT.SIDE

$42.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532192090

BOLT, SHOULDER SHEAR
(Superseded to 588077502)

$5.99

$

In Stock, Qty 20+

0
