PSB 210 (6210700x117NA) - Partner 21" Snow Thrower (2007) Auger Components Parts Diagram

21" Snow Thrower

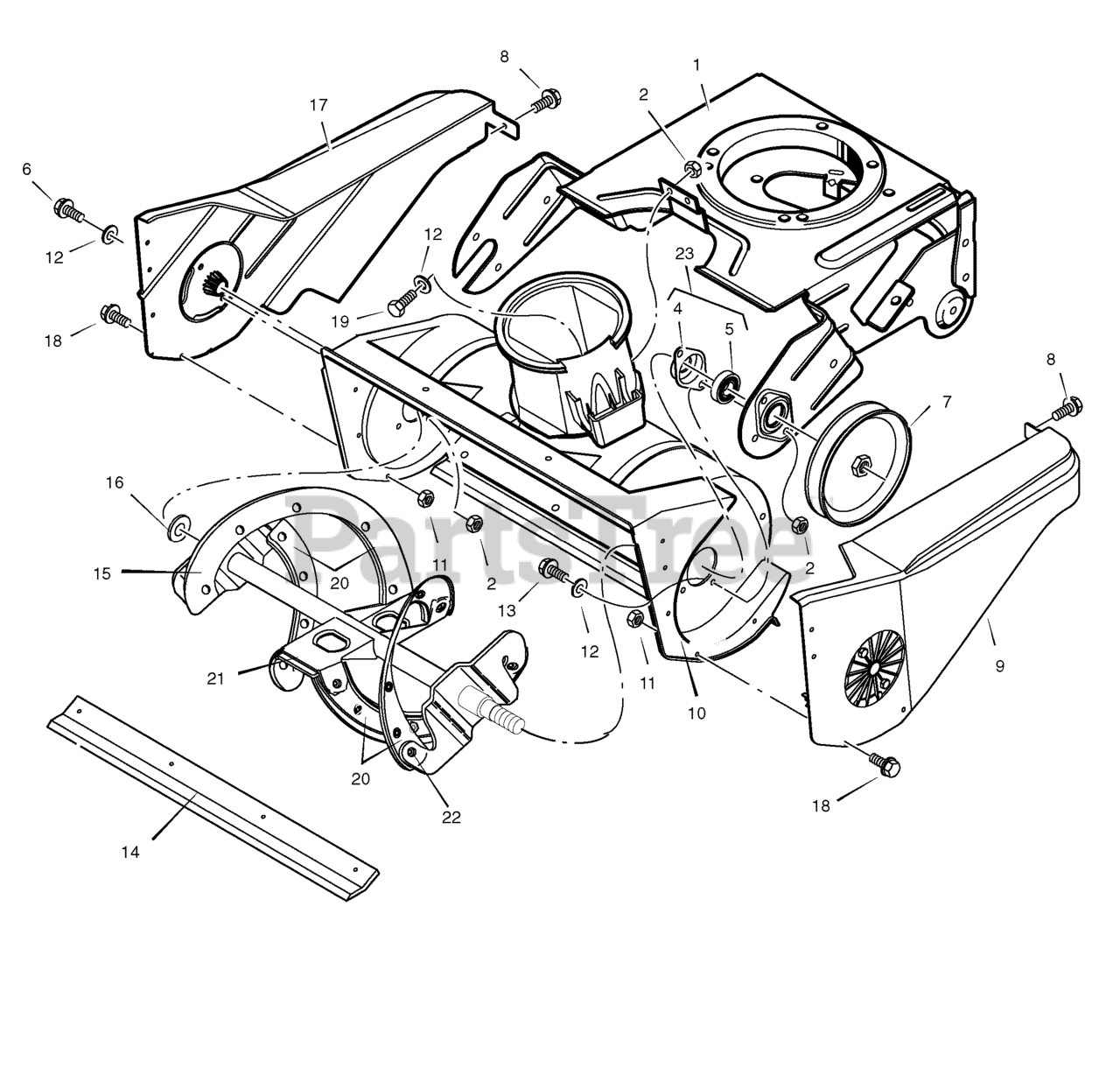

Auger Components Parts Diagram

  • Title

1

Murray 1502011E201MA

Frame, Motor Box

$512.99

$

Usually ships in 2-12 days

0

2

Murray 15X143MA

Nut, 1/4-20

$4.99

$

In Stock, Qty 13

0

4

Murray 580251MA

Retainer, Bearing

$16.99

$

Usually ships in 2-12 days

0

5

Murray 43846MA

Bearing, Ball
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

6

Murray 302628MA

Screw, 1/4-20x.75

$4.49

$

In Stock, Qty 7

0

7

Murray 338965MA

Pulley, Auger

$36.99

$

In Stock, only 1 left!

0

8

Murray 26X263MA

Screw, 1/4-20

$4.99

$

In Stock, only 1 left!

0

9

Murray 762277MA

Cover, Belt 21" Left Hand

$69.99

$

Usually ships in 2-12 days

0

10

Murray 1501927MA

Assembly, Auger Housing

$137.99

$

Usually ships in 2-12 days

0

11

Murray 312300MA

Nut, 10-24
(Superseded to 015X81MA)

$4.99

$

Usually ships in 2-12 days

0

12

Murray 71067MA

Washer, Flat

$4.49

$

In Stock, only 1 left!

0

13

Murray 579052MA

Screw, 1/4-20x.63

$9.99

$

In Stock, only 1 left!

0

14

Murray 55323MA

Blade, Scraper

$35.99

$

In Stock, only 1 left!

0

15

Murray 1741502MA

Auger Assembly, Complete

$165.99

$

Usually ships in 2-12 days

0

16

Murray 580969MA

Washer, Flat

$4.49

$

Usually ships in 2-12 days

0

17

Murray 762278MA

Cover, Belt 21" Right Hand

$

$

Not available

18

Murray 12342MA

Screw, 10-24x.50

$3.99

$

Usually ships in 2-12 days

0

19

Murray 302628MA

Screw, 1/4-20x.75

$4.49

$

In Stock, Qty 7

0

20

Murray 302565MA

Blade, Auger

$28.99

$

In Stock, only 2 left!

0

21

Murray 335992MA

Blade, Center

$8.99

$

In Stock, Qty 8

0

22

Murray 49838MA

Rivet

$4.49

$

In Stock, Qty 20+

0

23

Murray 583459MA

Plate and Bearing Assembly

$27.99

$

Usually ships in 2-12 days

0
