PS i2100 RT - PowerStroke Digital Inverter Generator Figure B Parts Diagram

Digital Inverter Generator

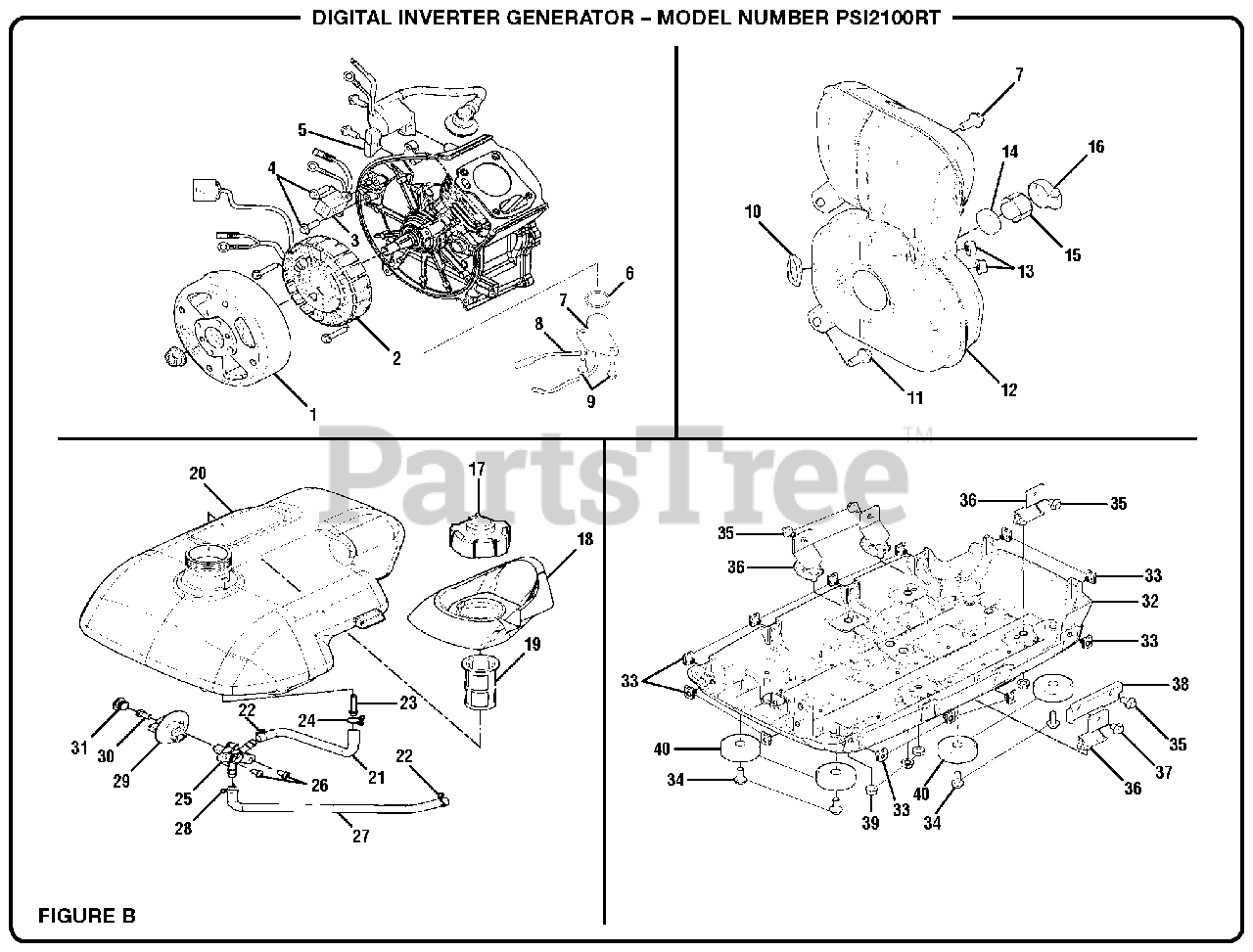

Figure B Parts Diagram

  • Title

1

Homelite LH2000I-311100

Rotor Assembly

$

$

Not available

2

Homelite LH2000I-311200A

Stator Assembly

$

$

Not available

3

Homelite LH2000I-312000

Pickup Coil

$15.99

$

Usually ships in 3-7 days

0

4

Homelite GBT57891986M516

Bolt (M5 x 16 mm, Flange Hd.)

$

$

Not available

5

Homelite LH2000I-313000

Ignition Coil Assembly

$53.99

$

Usually ships in 3-7 days

0

6

Homelite LH142F-012009

O-Ring (28 x 2.5)

$

$

Not available

7

Homelite LH142F-012200A

Oil Level Sensor Assembly

$17.99

$

Usually ships in 3-7 days

0

8

LH1000i-365000

Ground Wire

$

$

Not available

9

GB-T5789-1986M6x12

Bolt (M6 x 12 mm, Flange Hd.)

$

$

Not available

10

Homelite LH1000I-320001

Exhaust Pipe Gasket

$6.99

$

Usually ships in 3-7 days

0

11

GB/T5789-1986M6x12

Bolt (M6 x 12 mm, Flange Hd.)

$

$

Not available

12

Homelite LH2000I-321000

Muffler Assembly

$

$

Not available

13

GB/T6177.1-2000-M6

Hex Nut (M6)

$

$

Not available

14

Homelite LH2000I-321018

Spark Arrestor

$

$

Not available

15

Homelite LH2000I-321019

Spark Arrestor Bracket

$

$

Not available

16

Homelite JB/T8870-1999-32

Adjustable Clamp

$

$

Not available

17

Homelite LH1000I-374300

Fuel Tank Cap

$14.99

$

Usually ships in 3-7 days

0

18

Homelite LH2000I-371001

Overspill Guard

$

$

Not available

19

Homelite LH1000I-374100

Fuel Filling Strainer

$5.49

$

Usually ships in 3-7 days

0

20

Homelite 310711162

Fuel Tank

$

$

Not available

21

Homelite LH2000I-370001A

Fuel Hose

$2.49

$

Usually ships in 3-7 days

0

22

Homelite QC/T621-1999-8.5

Clip Q671B (8.5 mm)

$

$

Not available

23

Homelite LH1000I-374200

Inline Fuel Filter

$3.49

$

Usually ships in 3-7 days

0

24

Homelite QC/T621-1999-10

Clip (10 mm)

$

$

Not available

25

Homelite LH1000I-373000

Fuel Switch Assembly

$8.99

$

Usually ships in 3-7 days

0

26

GB-T845-F-H-st4.2x13

Screw (ST4.2 x 13 mm)

$

$

Not available

27

Homelite LH2000I-370002A

Fuel Hose

$

$

Not available

28

Homelite QC-T621-1999-8

Clip (8 mm)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite LH200I-370003

Main Switch Knob

$2.49

$

Usually ships in 3-7 days

0

30

GB9074.5-88-M4x12

Screw w/Washer (ST4.2 x 12 mm, Pan Hd.)

$

$

Not available

31

Homelite LH1000I-370008

Knob Cover

$2.99

$

Usually ships in 3-7 days

0

32

Homelite LH2000I-393000

Base Plate

$

$

Currently unavailable

33

Homelite LH1000I-381004

U-Clip w/ Nut (M5)

$

$

Not available

34

GB-T5789-1986M6x16

Bolt (M6 x 16 mm, Flange Hd.)

$

$

Not available

35

GB-T5789-1986M6x12

Bolt (M6 x 12 mm, Flange Hd.)

$

$

Not available

36

Homelite LH2000I-391000

Isolator

$

$

Not available

37

GB/T5789-1986M6x8

Bolt (M6 x 8 mm, Flange Hd.)

$

$

Not available

38

Homelite LH2000I-392000

Bracket (Engine)

$

$

Not available

39

GB/T6177.1-2000-M6

Flange Nut (M6)

$

$

Not available

40

Homelite LH2000I-394000

Rubber Foot

$8.99

$

Usually ships in 3-7 days

0
