PS 9C5001 - PowerStroke 5000 Watt Generator General Assembly (Part 1) Parts Diagram

5000 Watt Generator

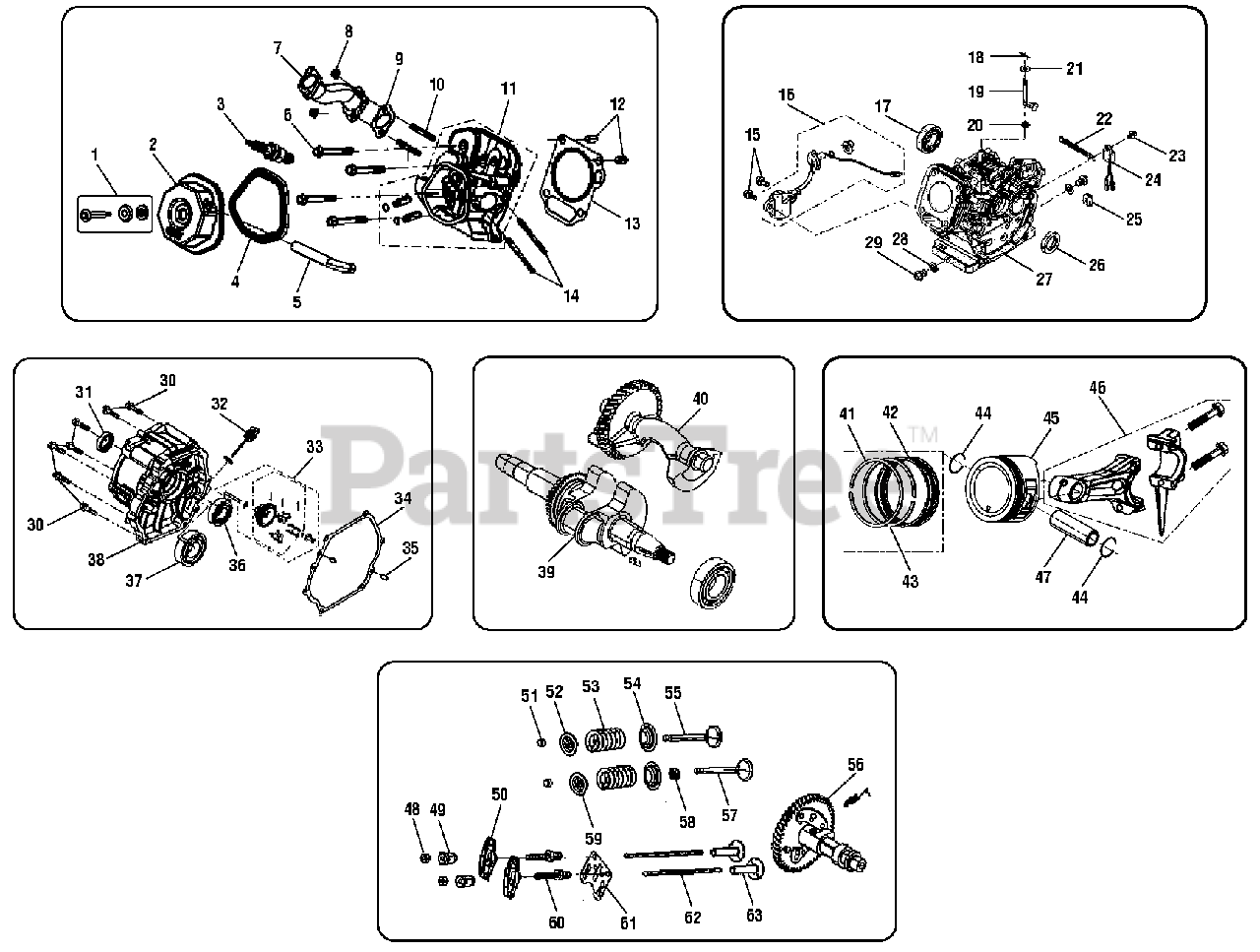

General Assembly (Part 1) Parts Diagram

  • Title

CYLINDER HEAD ASSEMBLY

$

$

Not available

1

Homelite 12030-Z310110

Bolt

$7.49

$

Usually ships in 3-7 days

0

2

Homelite 12410-Z580110

Cylinder Head Cover

$14.99

$

Usually ships in 3-7 days

0

3

Homelite 30010-Z010210

Spark Plug
(Superseded to 30010-Z010210-0000)

$8.49

$

In Stock, only 3 left!

0

4

Homelite 12004-Z580110

Cylinder Head Cover Gasket

$

$

Not available

5

Homelite 17004-Z080320

Breather Tube

$3.99

$

Usually ships in 3-7 days

0

6

Homelite 12003-Z080110

Bolt

$5.49

$

Usually ships in 3-7 days

0

7

Homelite 18150-Z100210

Exhaust Pipe

$23.99

$

Usually ships in 3-7 days

0

8

Homelite 90303-0800-31

Nut

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 18001-Z190110

Exhaust Outlet Gasket

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 90203-Z010110

Threaded Stud
(Superseded to 90203-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 12140-Z190220

Cylinder Head Assembly

$223.99

$

Usually ships in 3-7 days

0

12

Homelite 90502-1220-00

Pin

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 12131-Z100110

Cylinder Head Gasket

$12.99

$

In Stock, only 1 left!

0

14

Homelite 90204-Z100410

Threaded Stud

$5.49

$

Usually ships in 3-7 days

0

CRANKCASE ASSEMBLY

$

$

Not available

15

Homelite 90001-0616-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 37060-Z080110

Engine Oil Sensor

$17.99

$

Usually ships in 3-7 days

0

17

Homelite 90548-0202-00

Ball Bearing

$11.99

$

Usually ships in 3-7 days

0

18

Homelite 90501-Z010110

Pin
(Superseded to 90501-Z010110-0000)

$2.49

$

In Stock, only 2 left!

0

19

Homelite 16061-Z100110

Governor Arm

$5.99

$

Usually ships in 3-7 days

0

20

Homelite 90682-Z100210

Oil Seal

$

$

Not available

21

Homelite 90412-Z080210

Washer

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 90684-Z030120

Clip

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 90001-0612-01

Bolt

$2.99

$

Usually ships in 3-7 days

0

24

Homelite 37050-Z010210

Oil Protector
(Superseded to 37050-Z010210-0000)

$8.49

$

Usually ships in 3-7 days

0

25

Homelite 28101-Z080110

Rubber Plug

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 90682-Z310110

Oil Seal

$8.49

$

Usually ships in 3-7 days

0

27

Homelite 11310-Z100310

Crankcase Assembly

$346.99

$

Usually ships in 3-7 days

0

28

Homelite 90412-Z080110

Washer

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 11007-Z080110

Drain Plug

$2.49

$

Usually ships in 3-7 days

0

CRANKCASE COVER ASSEMBLY

$

$

Not available

30

Homelite 90001-0840-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 90682-Z310110

Oil Seal

$8.49

$

Usually ships in 3-7 days

0

32

Homelite 15010-Z080320

Oil Dipstick Assembly

$7.49

$

Usually ships in 3-7 days

0

33

Homelite 16400-Z100110

Governor Gear Assembly

$15.99

$

Usually ships in 3-7 days

0

34

Homelite 11001-Z100210

Crankcase Gasket

$17.99

$

Usually ships in 3-7 days

0

35

Homelite 90502-0812-00

Pin

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 90548-0202-00

Ball Bearing

$11.99

$

Usually ships in 3-7 days

0

37

Homelite 90547-0207-00

Ball Bearing

$31.99

$

Usually ships in 3-7 days

0

38

Homelite 11411-Z100610

Crankcase Cover

$

$

Not available

CRANKSHAFT ASSEMBLY

$

$

Not available

39

Homelite 13300-Z100110

Crankshaft Assembly

$

$

Not available

40

Homelite 13401-Z100110

Balancing Shaft

$74.99

$

Usually ships in 3-7 days

0

PISTON ASSEMBLY

$

$

Not available

41

Homelite 13201-Z100210

The First Ring

$21.99

$

Usually ships in 3-7 days

0

42

Homelite 13210-Z100210

Oil Ring Kit

$20.99

$

Usually ships in 3-7 days

0

43

Homelite 13202-Z100210

The Second Ring

$18.99

$

Usually ships in 3-7 days

0

44

Homelite 13122-Z100110

Piston Pin Clip

$2.99

$

Usually ships in 3-7 days

0

45

Homelite 13111-Z100210

Piston

$73.99

$

Usually ships in 3-7 days

0

46

Homelite 13010-Z100110

Connecting Rod

$55.99

$

Usually ships in 3-7 days

0

47

Homelite 13121-Z100110

Piston Pin

$6.99

$

Usually ships in 3-7 days

0

CAMSHAFT ASSEMBLY

$

$

Not available

48

Homelite 14312-Z010110

Valve Lock Nut
(Superseded to 14312-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 14314-Z010110

Valve Adjusting Nut
(Superseded to 14314-Z010110-0000)

$3.99

$

Usually ships in 3-7 days

0

50

Homelite 14311-Z080110

Valve Rocker

$3.99

$

Usually ships in 3-7 days

0

51

Homelite 12104-Z080110

Valve Rotator

$9.49

$

Usually ships in 3-7 days

0

52

Homelite 12107-Z080110

Exhaust Valve Retainer

$9.49

$

In Stock, only 1 left!

0

53

Homelite 12103-Z080110

Valve Spring

$3.49

$

In Stock, only 3 left!

0

54

Homelite 12105-Z080110

Valve Spring Retainer

$1.49

$

In Stock, only 1 left!

0

55

Homelite 12121-Z190110

Exhaust Valve

$23.99

$

Usually ships in 3-7 days

0

56

Homelite 14200-Z190310

Camshaft Assembly

$131.99

$

Usually ships in 3-7 days

0

57

Homelite 12111-Z100110

Intake Valve

$

$

Not available

58

Homelite 12101-Z080110

Seal Guide

$7.49

$

Usually ships in 3-7 days

0

59

Homelite 12112-Z080110

Valve Spring Seat

$6.99

$

In Stock, only 1 left!

0

60

Homelite 14313-Z010110

Valve Adjusting Bolt
(Superseded to 14313-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0

61

Homelite 14090-Z080110

Stop Plate Assembly

$3.49

$

In Stock, only 2 left!

0

62

Homelite 14070-Z100110

Valve Lifter Assembly

$5.99

$

Usually ships in 3-7 days

0

63

Homelite 14081-Z080110

ValveTappet

$

$

Not available
