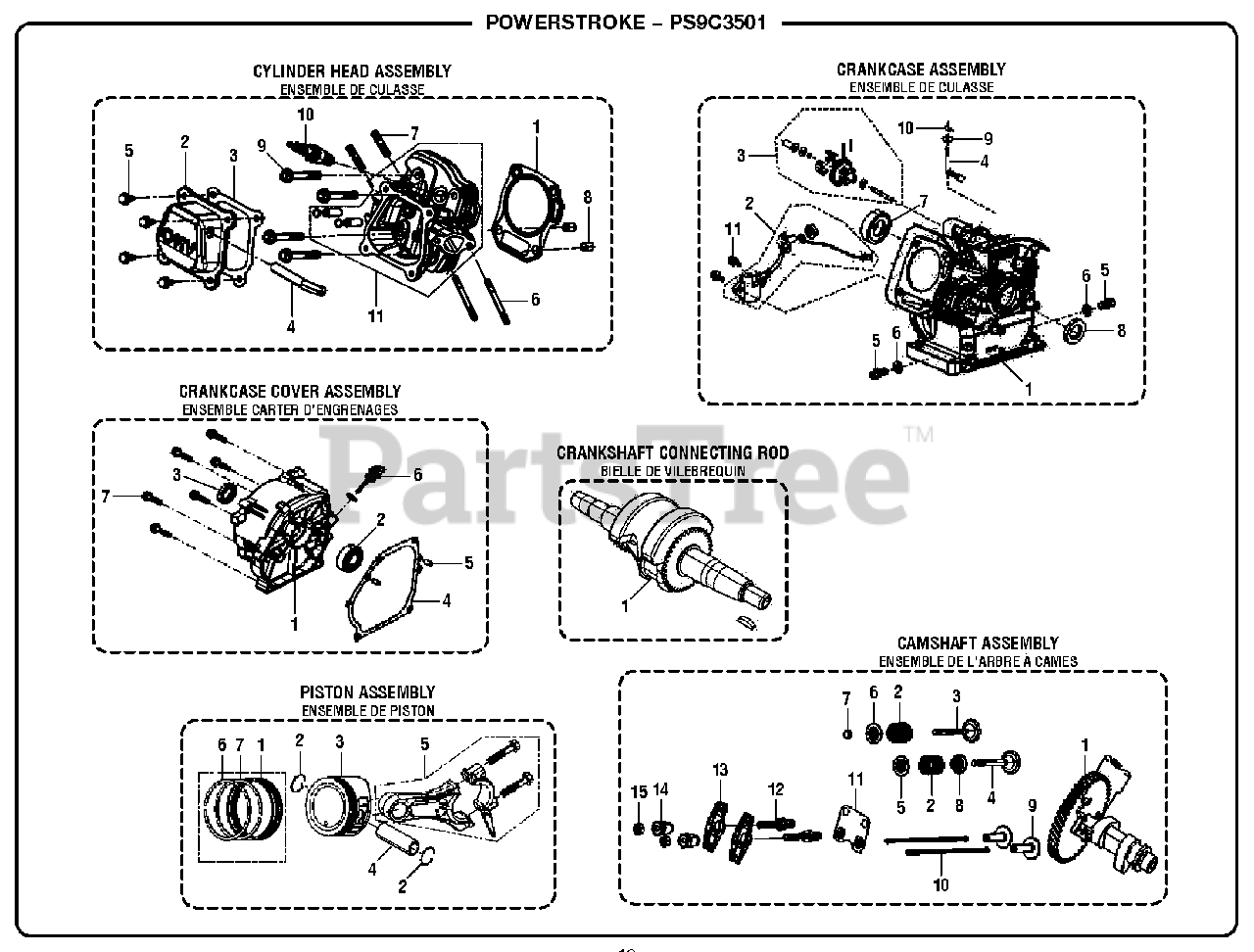

PS 9C3501 - PowerStroke 3500 Watt Generator General Assembly B Parts Diagram

3500 Watt Generator

General Assembly B Parts Diagram

  • Title

CYLINDER HEAD ASSEMBLY

$

$

Not available

1

Homelite 12131-Z530320

Cylinder Head Gasket
(Superseded to 12131-Z530320-0000)

$7.49

$

In Stock, only 1 left!

0

2

Homelite 12410-Z440210

Cylinder Head Cover Assembly

$

$

Not available

3

Homelite 12004-Z440210

Cylinder Head Cover Gasket

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 17004-Z010110

Breather Tube
(Superseded to 17004-Z010110-0000)

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 90001-0612-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 90204-Z010210

Stud
(Superseded to 90204-Z010210-0000)

$2.99

$

Usually ships in 3-7 days

0

7

Homelite 90203-Z010110

Stud
(Superseded to 90203-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 90502-1014-00

Pin

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 12003-Z010110

Cylinder Head Bolt
(Superseded to 12003-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 30010-Z010210

Spark Plug
(Superseded to 30010-Z010210-0000)

$6.99

$

Usually ships in 3-7 days

0

11

Homelite 12140-Z440420

Cylinder Head Assembly

$77.99

$

Usually ships in 3-7 days

0

CRANKCASE ASSEMBLY

$

$

Not available

1

Homelite 11310-Z530510

Crankcase Assembly

$

$

Not available

2

Homelite 37060-Z010110

Engine Oil Sensor

$17.99

$

Usually ships in 3-7 days

0

3

Homelite 16400-Z010110

Governor Gear Assembly
(Superseded to 16400-Z010110-0000)

$7.99

$

Usually ships in 3-7 days

0

4

Homelite 16061-Z010110

Governor Arm
(Superseded to 16061-Z010110-0000)

$3.99

$

In Stock, only 2 left!

0

5

Homelite 11007-Z010110

Drain Plug
(Superseded to 11007-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 90408-Z010110

Washer
(Superseded to 90408-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 90547-0205-00

Ball Bearing

$

$

Not available

8

Homelite 90682-Z300110

Oil Seal
(Superseded to 90682-Z300110-0000)

$3.99

$

In Stock, only 1 left!

0

9

Homelite 90408-Z010210

Washer
(Superseded to 90408-Z010210-0000)

$2.49

$

In Stock, only 2 left!

0

10

Homelite 90501-Z010110

Pin
(Superseded to 90501-Z010110-0000)

$2.49

$

In Stock, only 2 left!

0

11

Homelite 90001-0614-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

CRANKCASE COVER ASSEMBLY

$

$

Not available

1

Homelite 11411-Z530110

Crankcase Cover
(Superseded to 11411-Z530110-0000)

$74.99

$

Usually ships in 3-7 days

0

2

Homelite 90548-0205-CL

Ball Bearing

$13.99

$

Usually ships in 3-7 days

0

3

Homelite 90682-Z300110

Oil Seal
(Superseded to 90682-Z300110-0000)

$3.99

$

In Stock, only 1 left!

0

4

Homelite 11001-Z440110

Crankcase Gasket
(Superseded to 11001-Z440110-0000)

$6.99

$

In Stock, only 1 left!

0

5

Homelite 90502-0912-00

Pin

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 15010-Z010120

Oil Dipstick Assembly
(Superseded to 15010-Z010120-QG00)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 90001-0832-01

Bolt

$1.99

$

In Stock, only 1 left!

0

CRANKSHAFT CONNECTING ROD

$

$

Not available

1

Homelite 13300-Z530410

Crankshaft Assembly

$94.99

$

Usually ships in 3-7 days

0

PISTON ASSEMBLY

$

$

Not available

1

Homelite 13210-Z140220

Oil Ring Kit
(Superseded to 13210-Z140220-0099)

$7.99

$

Usually ships in 3-7 days

0

2

Homelite 13122-Z010110

Piston Pin Clip
(Superseded to 13122-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 13111-Z140220

Piston
(Superseded to 13111-Z140220-0099)

$21.99

$

In Stock, only 3 left!

0

4

Homelite 13121-Z010110

Piston Pin
(Superseded to 13121-Z010110-0000)

$5.99

$

Usually ships in 3-7 days

0

5

Homelite 13010-Z440210

Connecting Rod
(Superseded to 13010-Z440210-0099)

$19.99

$

Usually ships in 3-7 days

0

6

Homelite 13201-Z140210

The First Ring
(Superseded to 13201-Z140210-0099)

$6.99

$

Usually ships in 3-7 days

0

7

Homelite 13202-Z140210

The Second Ring
(Superseded to 13202-Z140210-0099)

$5.99

$

In Stock, only 1 left!

0

CAMSHAFT ASSEMBLY

$

$

Not available

1

Homelite 14200-Z530110

Camshaft Assembly
(Superseded to 14200-Z530110-0099)

$43.99

$

Usually ships in 3-7 days

0

2

Homelite 12103-Z010110

Valve Spring
(Superseded to 12103-Z010110-0000)

$1.99

$

In Stock, only 4 left!

0

3

Homelite 12121-Z010110

Exhaust Valve
(Superseded to 12121-Z010120-0000)

$12.99

$

Usually ships in 3-7 days

0

4

Homelite 12111-Z010110

Intake Valve

$10.99

$

Usually ships in 3-7 days

0

5

Homelite 12112-Z010110

Valve Spring Seat

$5.49

$

Usually ships in 3-7 days

0

6

Homelite 12107-Z010110

Retainer, Exhaust Valve

$5.99

$

Usually ships in 3-7 days

0

7

Homelite 12104-Z010110

Valve Rotator
(Superseded to 12104-Z010110-0000)

$4.99

$

Usually ships in 3-7 days

0

8

Homelite 12101-Z020110

Seal Guide

$3.99

$

Usually ships in 3-7 days

0

9

Homelite 14081-Z040110

Valve Tappet
(Superseded to 14081-Z040110-0000)

$3.99

$

Usually ships in 3-7 days

0

10

Homelite 14071-Z440110

Valve Lifter
(Superseded to 14071-Z440110-0000)

$3.49

$

In Stock, only 1 left!

0

11

Homelite 14090-Z010110

Lifter Stop Plate Assembly
(Superseded to 14090-Z010110-0000)

$2.99

$

Usually ships in 3-7 days

0

12

Homelite 14313-Z010110

Valve Adjusting Bolt
(Superseded to 14313-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 14311-Z010110

Valve Rocker
(Superseded to 14311-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 14314-Z010110

Valve Adjusting Nut
(Superseded to 14314-Z010110-0000)

$3.49

$

Usually ships in 3-7 days

0

15

Homelite 14312-Z010110

Valve Lock Nut
(Superseded to 14312-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0
