PS 9C3501 B - PowerStroke 3500 Watt Generator General Assembly (CYLINDER HEAD ASSEMBLY) Parts Diagram

3500 Watt Generator

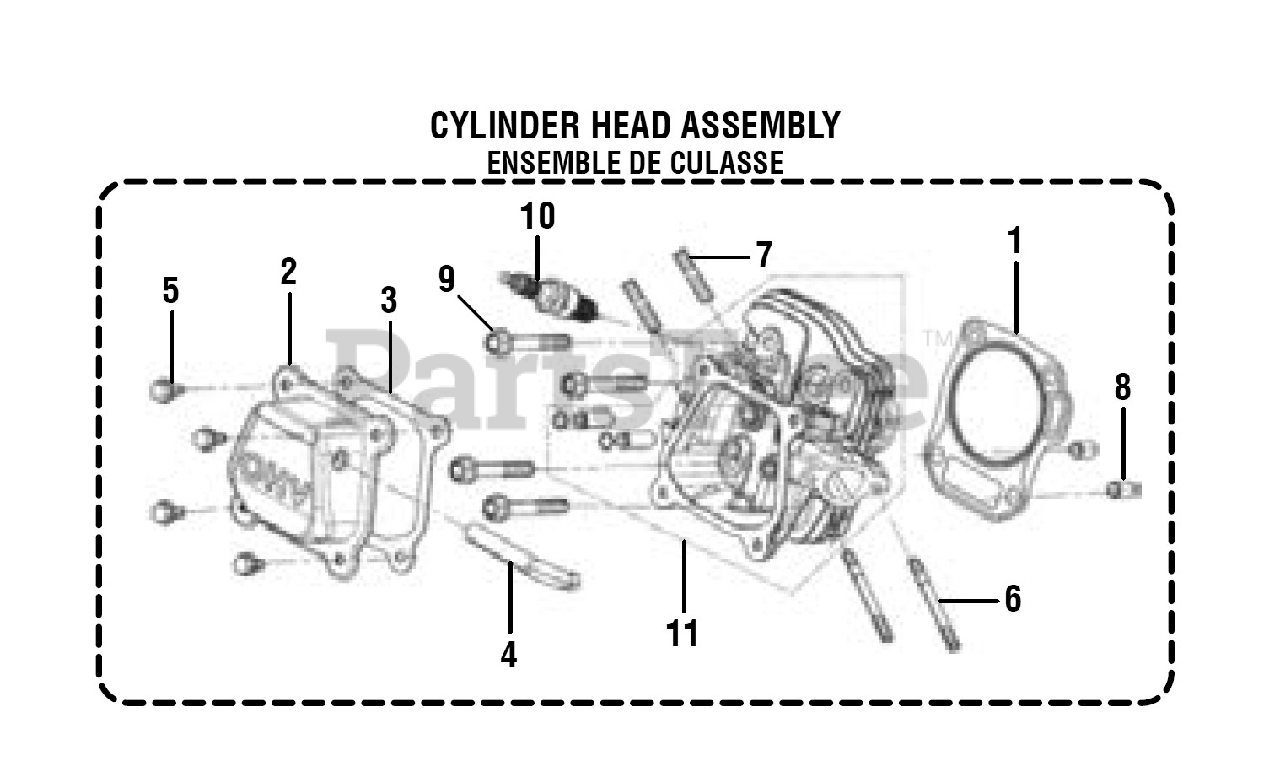

General Assembly (CYLINDER HEAD ASSEMBLY) Parts Diagram

  • Title

1

Homelite 12131-Z530320

Cylinder Head Gasket
(Superseded to 12131-Z530320-0000)

$7.49

$

In Stock, only 1 left!

0

2

Homelite 12410-Z440110

Cylinder Head Cover Assembly
(Superseded to 12410-Z440110-0099)

$12.99

$

In Stock, only 2 left!

0

3

Homelite 12004-Z440110

Cylinder Head Cover Gasket
(Superseded to 12004-Z440110-0000)

$2.49

$

In Stock, only 1 left!

0

4

Homelite 17004-Z010110

Breather Tube
(Superseded to 17004-Z010110-0000)

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 90001-0612-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 90204-Z010210

Stud
(Superseded to 90204-Z010210-0000)

$2.99

$

Usually ships in 3-7 days

0

7

Homelite 90203-Z010110

Stud
(Superseded to 90203-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 90502-1114-00

Pin

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 12003-Z010110

Cylinder Head Bolt
(Superseded to 12003-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 30010-Z010210

Spark Plug
(Superseded to 30010-Z010210-0000)

$6.99

$

Usually ships in 3-7 days

0

11

Homelite 12140-Z810120

Cylinder Head Assembly
(Superseded to 12140-Z810120-0000)

$76.99

$

Usually ships in 3-7 days

0
