PS 9C3501 A - PowerStroke 3500 Watt Generator Figure B Parts Diagram

3500 Watt Generator

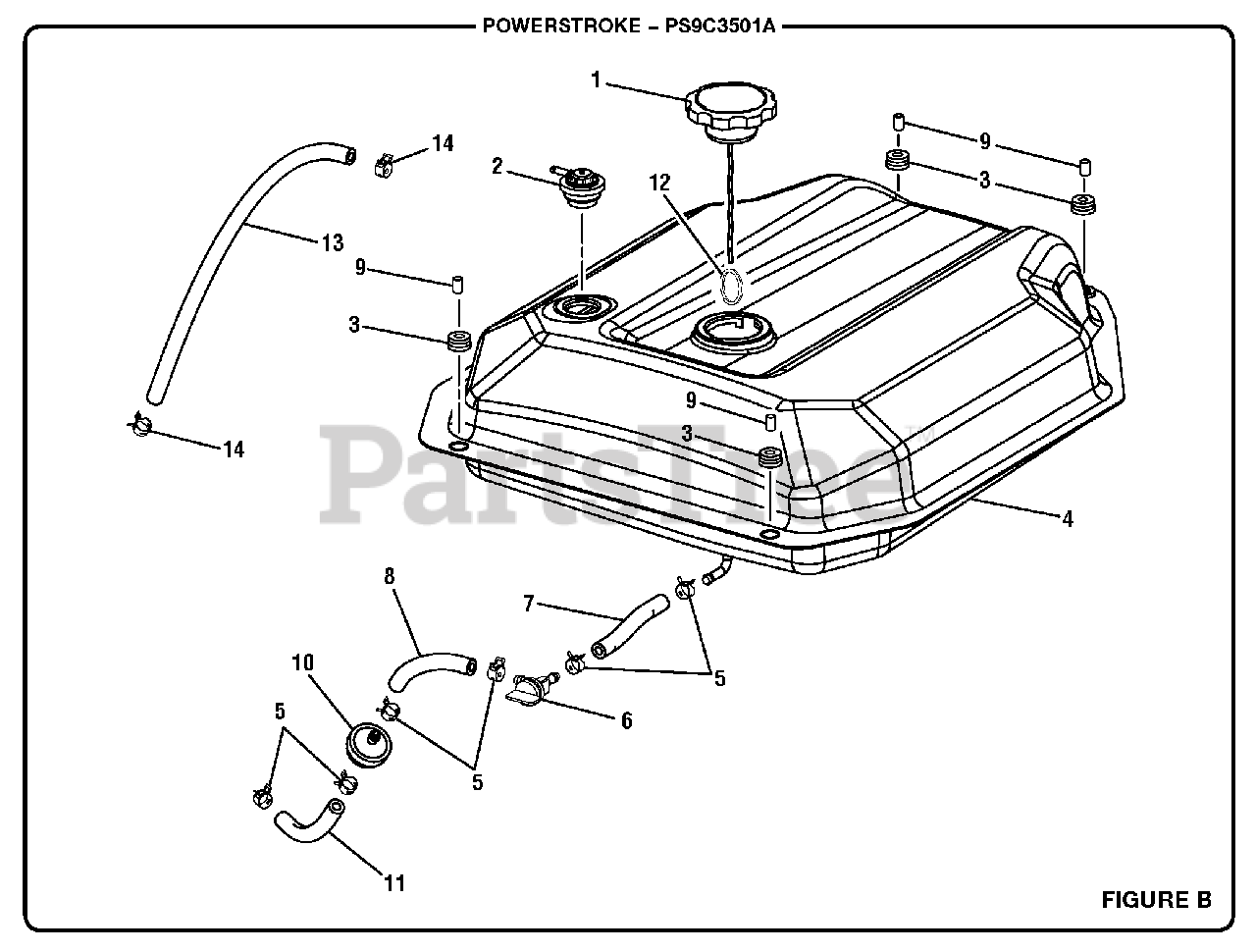

Figure B Parts Diagram

  • Title

1

Homelite 310720026

Fuel Tank Cap

$40.99

$

Usually ships in 3-7 days

0

2

Homelite 310854002

Fuel Tank Vapor Vent

$

$

Not available

3

Homelite 519832003

Isolator

$3.49

$

Usually ships in 3-7 days

0

4

Homelite 310711095

Fuel Tank

$278.99

$

Usually ships in 3-7 days

0

5

Homelite 678408006

Fuel Line Clamp (1/2 in.)

$3.49

$

In Stock, only 1 left!

0

6

Homelite 308459002

Fuel Shut Off Valve

$32.99

$

Usually ships in 3-7 days

0

7

Homelite 570358069

Fuel Line (90 mm)

$

$

Not available

8

Homelite 570358068

Fuel Hose (110 mm)

$14.99

$

In Stock, only 1 left!

0

9

Homelite 518528002

Insert

$

$

Not available

10

Homelite 308733008

Fuel Line Filter

$7.49

$

In Stock, only 4 left!

0

11

Homelite 570358080

Fuel Hose (110 mm)
(Superseded to 570358068)

$14.99

$

In Stock, only 1 left!

0

12

Homelite 678899007

Ring Clip

$2.49

$

In Stock, only 4 left!

0

13

Homelite 570358099

Vent Hose

$

$

Not available

14

Homelite 678409003

Fuel Line Clamp (7/16 in.)

$1.99

$

In Stock, Qty 5

0
