PS 907000 S (090930276) - PowerStroke 7000 Watt Generator, Rev 05 (2018-10) Figure A Parts Diagram

7000 Watt Generator, Rev 05

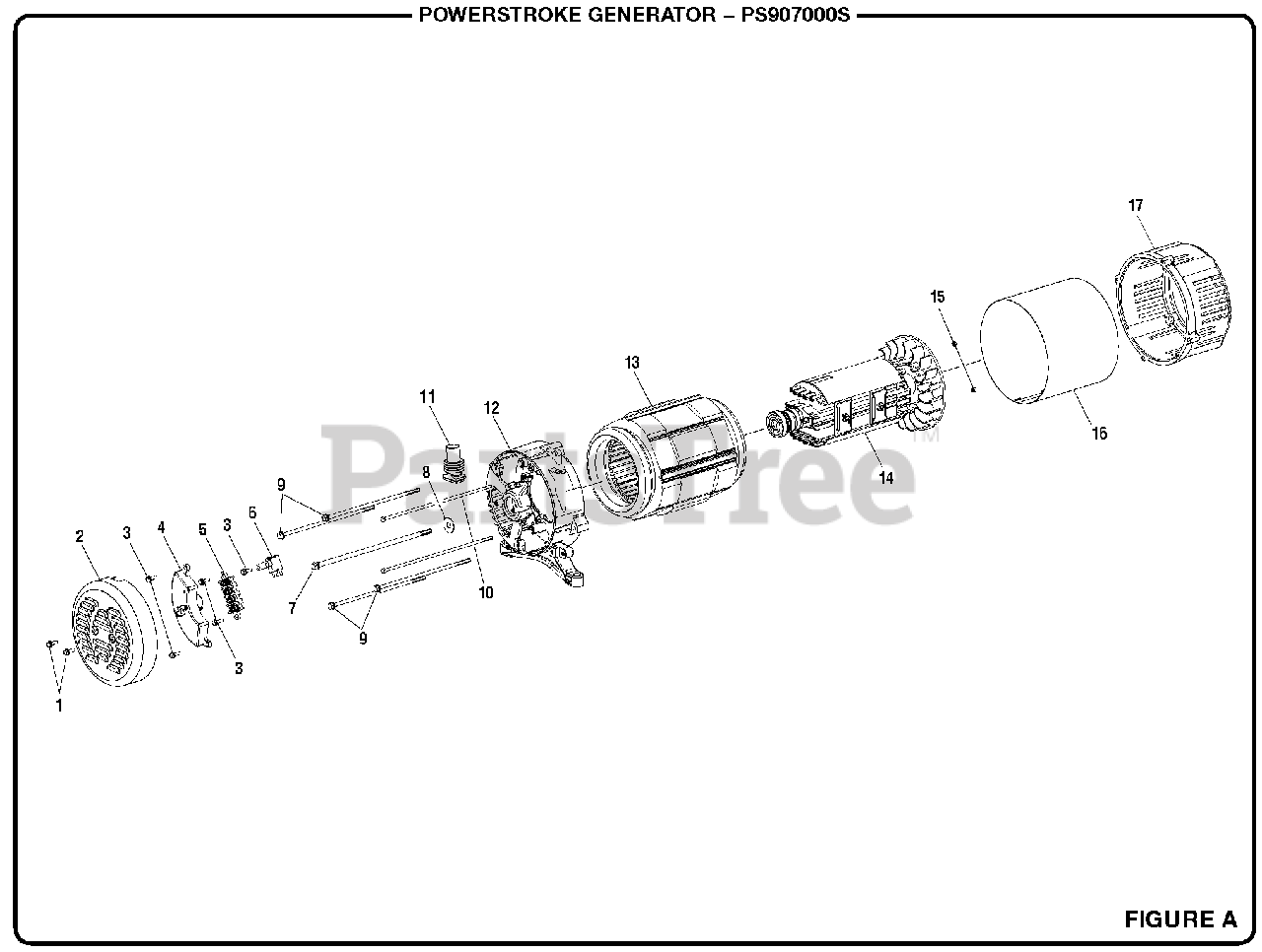

Figure A Parts Diagram

  • Title

1

Homelite 660938011

Bolt (M5 x 12 mm, Hex Flange Hd.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 678296004

Brush Cover
(Superseded to 678296002)

$

$

Not available

3

Homelite 660938012

Bolt (M5 x 16 mm, Hex Flange Hd.)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 290440010

Automatic Voltage Regulator

$73.99

$

Usually ships in 3-7 days

0

5

Homelite 290602003

Terminal Block

$10.99

$

Usually ships in 3-7 days

0

6

Homelite 290441005

Brush Assembly

$

$

Not available

7

Homelite 661603008

Rotor Bolt (5/16-24 x 260 mm, Hex Flange Hd.)

$

$

Not available

8

Homelite 638623002

Washer (ID10.5 x OD25 x 2t)

$

$

Not available

9

Homelite 661603009

Stator Bolt (M6 x 216 mm, Hex Flange Hd.)

$

$

Not available

10

Homelite 660938010

Bolt (M5 x 245 mm, Hex Hd.)

$7.49

$

Usually ships in 3-7 days

0

11

Homelite 570766002

Rubber Boot

$

$

Not available

12

Homelite 678865003

Bearing Housing

$

$

Not available

13

Homelite 310771051

Stator Assembly

$

$

Not available

14

Homelite 310772052

Rotor Assembly

$

$

Not available

15

Homelite 690840002

Hex Nut (M5)

$3.49

$

Usually ships in 3-7 days

0

16

Homelite 638624002

Generator Head Cover

$

$

Not available

17

Homelite 640331005

Engine Adaptor

$

$

Not available
