PS 907000 P (090930263) - PowerStroke 7000 Watt Generator, Rev 01 (2018-02) Figure A Parts Diagram

7000 Watt Generator, Rev 01

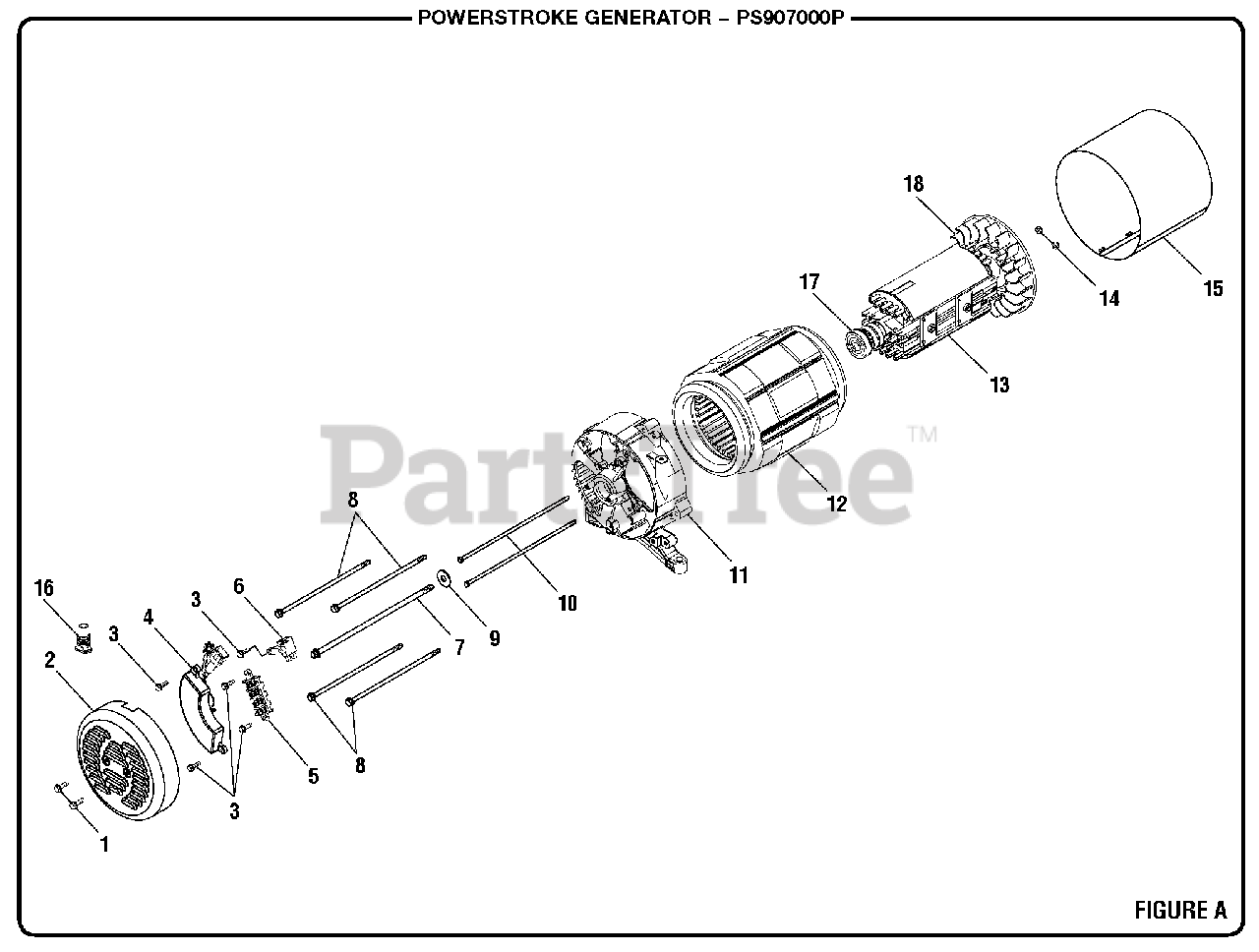

Figure A Parts Diagram

  • Title

1

Homelite 660938011

Bolt (M5 x 12 mm, Hex Flange Hd.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 678296004

Brush Cover
(Superseded to 678296002)

$

$

Not available

3

Homelite 660938012

Bolt (M5 x 16 mm, Hex Flange Hd.)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 290440008

Automatic Voltage Regulator
(Superseded to 290440012)

$

$

Not available

5

Homelite 290602003

Terminal Block

$10.99

$

Usually ships in 3-7 days

0

6

Homelite 290441005

Brush Assembly

$

$

Not available

7

Homelite 661603034

Rotor Bolt (170 mm)

$

$

Not available

8

Homelite 661603031

Stator Bolt (170 mm)

$4.99

$

Usually ships in 3-7 days

0

9

Homelite 638623002

Rotor Washer

$

$

Not available

10

Homelite 660938033

Bolt (M5 x 170 mm, Hex Hd.)
(Superseded to 660938012)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 678865003

Bearing Carrier

$

$

Not available

12

Homelite 310772048

Stator

$

$

Currently unavailable

13

Homelite 310771047

Rotor

$

$

Currently unavailable

14

Homelite 690840002

Hex Nut (M5)

$3.49

$

Usually ships in 3-7 days

0

15

Homelite 638624020

Generator Head Cover

$11.99

$

Usually ships in 3-7 days

0

16

Homelite 570766002

Rubber Boot

$

$

Not available

17

Homelite 681963001

Ball Bearing

$17.99

$

Usually ships in 3-7 days

0

18

Homelite 307471001

Fan

$

$

Not available
