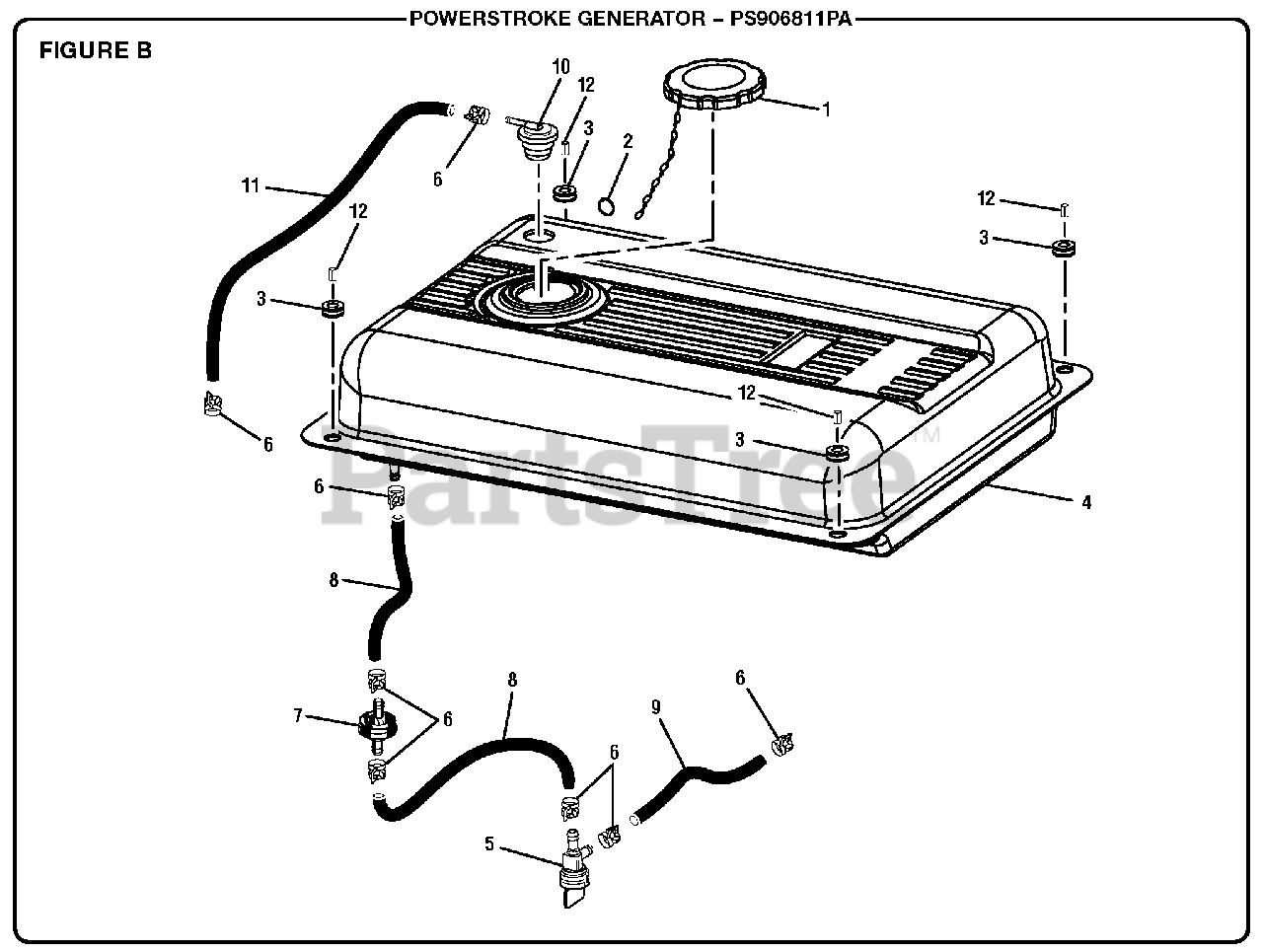

PS 906811 PA (090930262) - PowerStroke 6800 Watt Generator Figure B Parts Diagram

6800 Watt Generator

Figure B Parts Diagram

  • Title
1

Homelite 638760003

Fuel Tank Cap

$

$

Not available

2

Homelite 678899007

Ring Clip

$2.49

$

In Stock, only 4 left!

0

3

Homelite 638326005

Fuel Tank Insert

$

$

Not available

4

Homelite 310711140

Fuel Tank Assembly

$177.99

$

Usually ships in 3-7 days

0

5

Homelite 308459002

Fuel Valve

$32.99

$

Usually ships in 3-7 days

0

6

Homelite 678408006

Fuel Line Clamp (1/2 in.)

$3.49

$

In Stock, only 1 left!

0

7

Homelite 308733008

Fuel Line Filter

$7.49

$

In Stock, only 1 left!

0

8

Homelite 570358094

Fuel Line (1/4 in.)

$4.49

$

Usually ships in 3-7 days

0

9

Homelite 570358034

Fuel Hose (5 mm)

$10.99

$

Usually ships in 3-7 days

0

10

Homelite 310854002

Vapor Vent

$

$

Not available

11

Homelite 570358079

Vapor Hose

$

$

Not available

12

Homelite 519832007

Fuel Tank Isolator (12 mm Dia.)

$43.99

$

Usually ships in 3-7 days

0
