PS 906025 PA - PowerStroke 6000 Watt Generator Figure A Parts Diagram

6000 Watt Generator

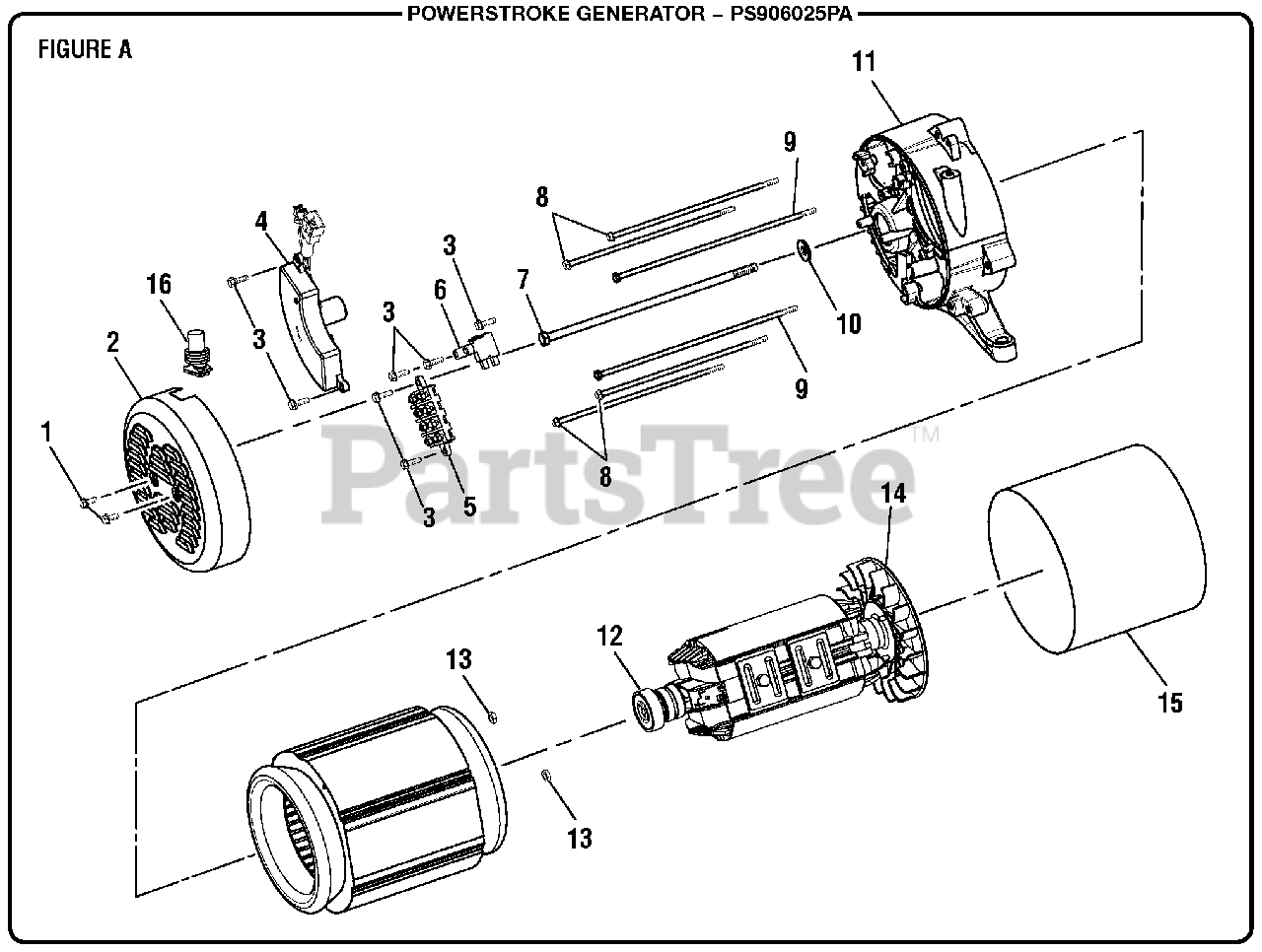

Figure A Parts Diagram

  • Title

1

Homelite 660938011

Bolt (M5 x 12 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 678296004

Brush Cover
(Superseded to 678296002)

$

$

Not available

3

Homelite 660938012

Bolt (M5 x 16 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 290440008

Automatic Voltage Regulator
(Superseded to 290440012)

$

$

Not available

5

Homelite 290602003

Terminal Block

$10.99

$

Usually ships in 3-7 days

0

6

Homelite 290441005

Brush Assembly Kit

$

$

Not available

7

Homelite 661557017

Rotor Bolt

$

$

Not available

8

Homelite 660869008

Stator Bolt

$

$

Not available

9

Homelite 661603010

Bolt (M5 x 230 mm, Hex Hd.)

$

$

Not available

10

Homelite 638128002

Washer (5/16 in.)

$

$

Not available

11

Homelite 678865003

Bearing Housing'

$

$

Not available

12

Homelite 681963001

Ball Bearing

$17.99

$

Usually ships in 3-7 days

0

13

Homelite 690840002

Hex Nut (M5)

$3.49

$

Usually ships in 3-7 days

0

14

Homelite 307471001

Fan

$

$

Not available

15

Homelite 638545006

Generator Head Cover

$

$

Not available

16

Homelite 570766004

Rubber Boot

$2.99

$

Usually ships in 3-7 days

0
