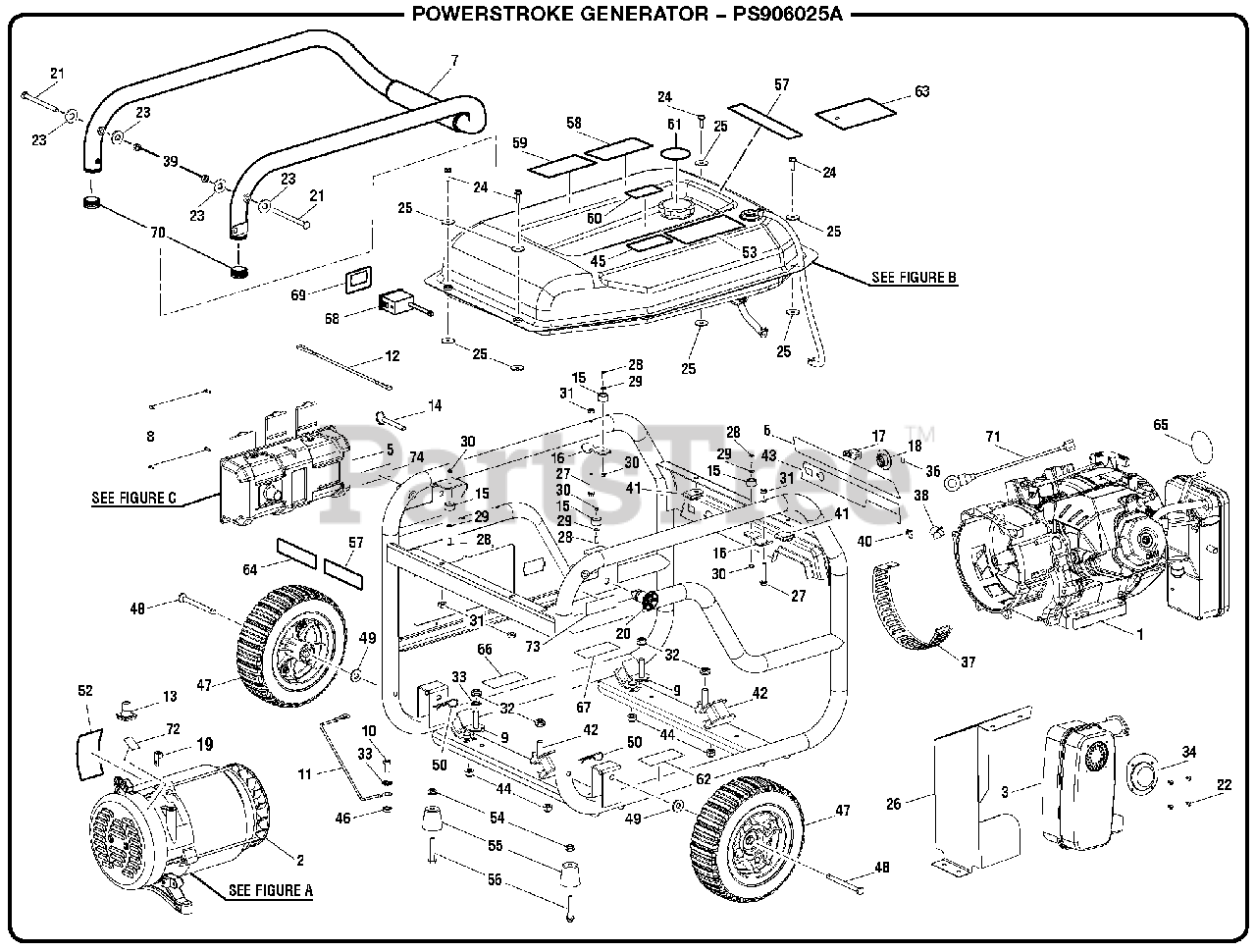

PS 906025 A (090930260) - PowerStroke 5000 Watt Generator General Assembly Parts Diagram

5000 Watt Generator

General Assembly Parts Diagram

  • Title

1

Homelite 309594095

Engine (Rato 390cc)

$

$

Currently unavailable

2

Homelite 310227037

Generator Head Assembly (See Fig. A)

$853.99

$

Usually ships in 3-7 days

0

3

Homelite 309322022

Muffler

$

$

Not available

4

Homelite 308581031

Frame Assembly

$

$

Not available

5

Homelite 290403067

Control Panel Assembly (See Fig. C)

$

$

Not available

6

Homelite 940779078

Logo Label

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 310224032

Handle Assembly

$82.99

$

Usually ships in 3-7 days

0

8

Homelite 660598001

Screw (6-20 x 3/8 in.)

$2.99

$

In Stock, only 2 left!

0

9

Homelite 679940005

Engine Isolator (Right)

$

$

Not available

10

Homelite 661502005

Bolt (5/16-18 x 3/4 in.)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 290404001

Ground Wire Assembly

$

$

Not available

12

Homelite 310715001

Lanyard

$

$

Not available

13

Homelite 570766004

Rubber Sleeve

$2.99

$

Usually ships in 3-7 days

0

14

Homelite 310712001

Release Pin

$1.99

$

In Stock, Qty 5

0

15

Homelite 570712001

Handle Bumper

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 678285004

Handle Support Bracket

$

$

Not available

17

Homelite 760700002

On/Off Switch
(Superseded to 760700001)

$4.49

$

In Stock, only 1 left!

0

18

Homelite 519813017

Fuel Valve Bezel

$3.49

$

In Stock, only 4 left!

0

19

Homelite 638703005

Ground Lug

$7.99

$

Usually ships in 3-7 days

0

20

Homelite 308910010

Handle Release Pin

$

$

Not available

21

Homelite 678522006

Pivot Pin (Handle)

$12.99

$

Usually ships in 3-7 days

0

22

Homelite 661306001

Screw (8-32 x 3/8 in.)

$2.99

$

Usually ships in 3-7 days

0

23

Homelite 638128002

Washer (5/16 in.)

$

$

Not available

24

Homelite 661836004

Bolt (M6 x 25 mm, Flange Hex Hd.)

$

$

Not available

25

Homelite 638387002

Washer (1/4 in.)

$

$

Not available

26

Homelite 638497025

Heat Shield

$33.99

$

Usually ships in 3-7 days

0

27

Homelite 660836005

Bolt (M6 x 45 mm)

$

$

Not available

28

Homelite 661555001

Bolt (M4 x 12.5 mm, Hex Hd.)

$

$

Not available

29

Homelite 678600002

Washer (M4)

$

$

Not available

30

Homelite 678610002

Flange Nut (M4)

$

$

Not available

31

Homelite 678460002

Lock Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 678297001

Lock Nut (M10)

$

$

Not available

33

Homelite 638704001

Star Washer (5/16 in.)

$2.99

$

Usually ships in 3-7 days

0

34

Homelite 638147008

Spark Arrestor

$9.99

$

Usually ships in 3-7 days

0

35

Homelite 678518002

Lock Nut (1/2-20)

$4.99

$

Usually ships in 3-7 days

0

36

Homelite 940474003

Fuel Label

$

$

Not available

37

Homelite 638983001

Fan Cover (Generator Head)

$

$

Not available

38

Homelite 563030001

Plug (Generator Head)

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 678259003

Hex Nut (M8)

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 661603001

Bolt (M5 x 10 mm, Flange Hex Hd.)

$

$

Not available

41

Homelite 678824003

U-Clip (M6)

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 679940003

Engine Isolator (Left)

$12.99

$

In Stock, only 4 left!

0

43

Homelite 940734126

Start Label

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 678774002

Flange Nut (M8)

$

$

Not available

45

Homelite 940872023

Fuel Stabilizer Label (Spanish)

$3.49

$

Usually ships in 3-7 days

0

46

Homelite 678145002

Hex Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 308451033

Wheel

$107.99

$

Usually ships in 3-7 days

0

48

Homelite 681866002

Axle

$20.99

$

Usually ships in 3-7 days

0

49

Homelite 638422004

Washer (M10)

$

$

Not available

50

Homelite 678146002

Hitch Pin

$2.99

$

Usually ships in 3-7 days

0

51

Homelite 940680040

Hot Surface Label

$2.99

$

Usually ships in 3-7 days

0

52

Homelite 940514008

Lock and Pin Label

$5.49

$

Usually ships in 3-7 days

0

53

Homelite 940654255

Danger Label

$6.49

$

Usually ships in 3-7 days

0

54

Homelite 678774003

Lock Nut (M8)

$2.49

$

In Stock, Qty 5

0

55

Homelite 562856010

Foot Assembly

$

$

Not available

56

Homelite 661836007

Bolt (M8 x 45 mm, Flange Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

57

Homelite 940974090

Fire Distance Label (Eng/Sp)

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 940515020

CPSC Label

$2.99

$

Usually ships in 3-7 days

0

59

Homelite 940974004

Fire Danger Label

$2.99

$

Usually ships in 3-7 days

0

60

Homelite 940872003

E85 Label

$1.99

$

In Stock, only 2 left!

0

61

Homelite 940872022

Fuel Stabilizer Label

$

$

Not available

62

Homelite 940947006

Combustion Label (Eng/Sp)

$2.99

$

Usually ships in 3-7 days

0

63

Homelite 940971077

Warning Hangtag

$2.49

$

Usually ships in 3-7 days

0

64

Homelite 940513028

Ground Warning Label

$2.99

$

Usually ships in 3-7 days

0

65

Homelite 940633018

Recoil Housing Label

$2.49

$

Usually ships in 3-7 days

0

66

Homelite 940828004

Lubricant Label

$2.49

$

Usually ships in 3-7 days

0

67

Homelite 941707001

Inquires label

$2.49

$

Usually ships in 3-7 days

0

68

Homelite 290492001

Analog Hour Meter

$39.99

$

In Stock, only 2 left!

0

69

Homelite 940040027

Systems Monitor Label

$

$

Not available

70

Homelite 519712003

End Cap (31 mm)

$2.49

$

Usually ships in 3-7 days

0

71

Homelite 290427001

Wire Assembly (Green)

$1.99

$

Usually ships in 3-7 days

0

72

Homelite 940513002

Ground Label

$2.99

$

Usually ships in 3-7 days

0

73

Homelite 940758020

Handle Release Label

$1.99

$

Usually ships in 3-7 days

0

Homelite 120302017

Hardware Kit

Note: NOT SHOWN

$46.99

$

Usually ships in 3-7 days

0

Homelite 991000284

Operator's Manual

$

$

Not available

Homelite 991000456

Operator's Manual

$

$

Currently unavailable

Homelite 991000457

Quick reference Guide

$

$

Currently unavailable
