PS 905700 D (090930259) - PowerStroke 5700 Watt Generator, Rev 01 (2016-09) Figure B (Fuel Tank Assembly) Parts Diagram

5700 Watt Generator, Rev 01

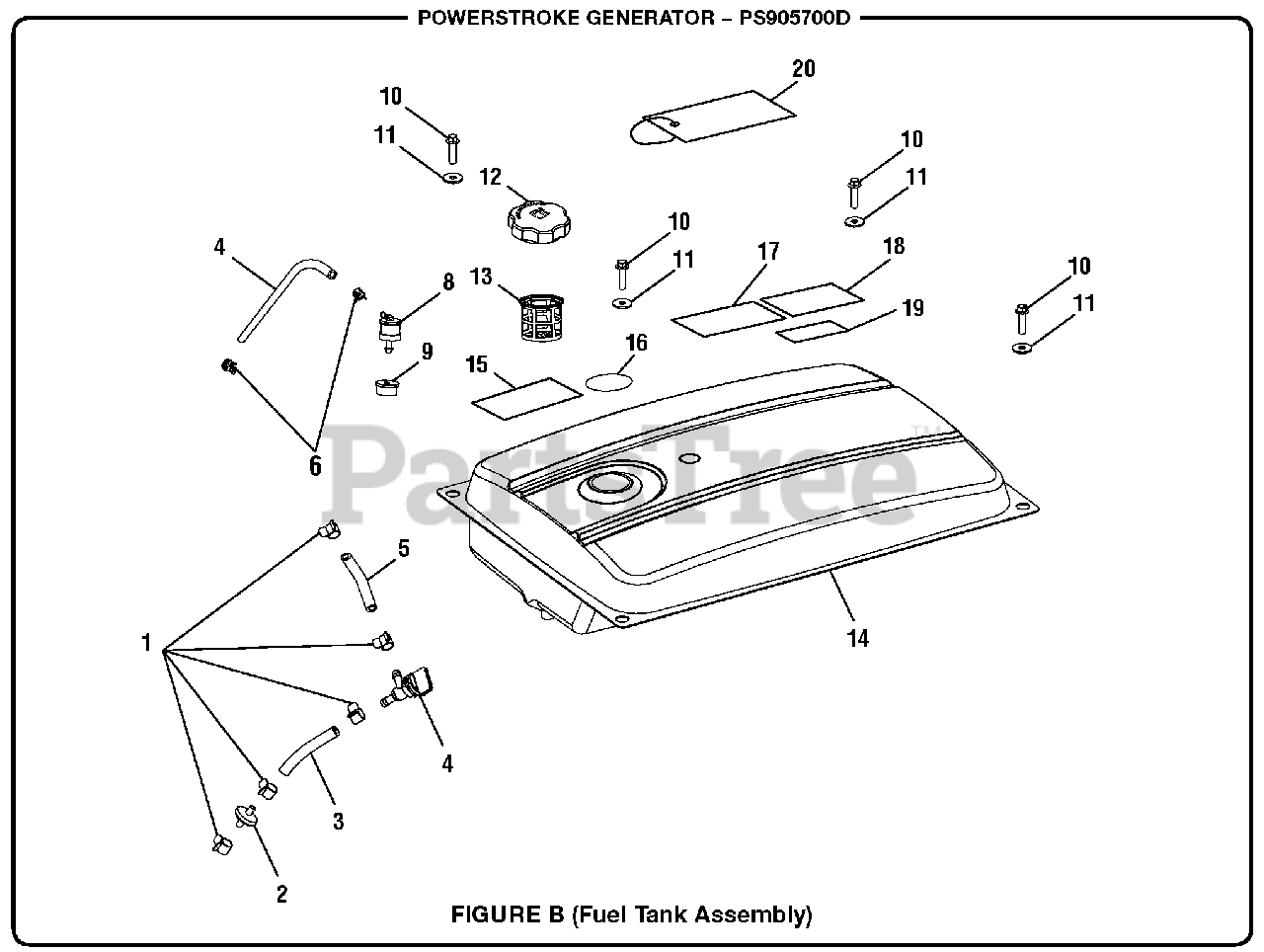

Figure B (Fuel Tank Assembly) Parts Diagram

  • Title

1

Homelite DF4000H-14008-C

Fuel Line Clip

$2.99

$

Usually ships in 3-7 days

0

2

Homelite DF4000H-14026-A

Fuel Line Filter

$

$

Not available

3

Homelite DF4000H-14007-B

Fuel Line

$

$

Not available

4

Homelite DF4000H-14302-A

Fuel Valve

$27.99

$

Usually ships in 3-7 days

0

5

Homelite DF6500H-14007-C

Fuel Line

$

$

Not available

6

Homelite DF4000H-14008-D

Fuel Line Clip

$

$

Not available

7

Homelite DF5000H-14803-B

Vapor Hose

$

$

Not available

8

Homelite DJ190F-34128-GXI

Vapor Vent

$23.99

$

Usually ships in 3-7 days

0

9

Homelite DJ190F-34125-GXI

Packing Washer

$3.99

$

Usually ships in 3-7 days

0

10

Homelite 92140-B6-25

Bolt

$

$

Not available

11

Homelite DF2500H-14024-A

Washer

$

$

Not available

12

Homelite DF2500H-14306-D

Fuel Tank Cap
(Superseded to 099980551089)

$10.99

$

Usually ships in 3-7 days

0

13

Homelite DF2500H-14307-C

Fuel Strainer

$

$

Not available

14

Homelite 310711164

Fuel Tank

$

$

Not available

15

Homelite 940872023

Fuel Stabilizer Label (Sp.)

$3.49

$

Usually ships in 3-7 days

0

16

Homelite 940872022

Fuel Stabilizer Label

$

$

Not available

17

Homelite 940654248

Danger Label

$

$

Not available

18

Homelite 940515020

CPSC Label

$2.99

$

Usually ships in 3-7 days

0

19

Homelite 940872003

E85 Label

$1.99

$

In Stock, only 2 left!

0

20

Homelite 940971086

Warning Hangtag

$

$

Currently unavailable
