PS 905700 D (090930259) - PowerStroke 5700 Watt Generator, Rev 01 (2016-09) Figure A (Generator Head Assembly) Parts Diagram

5700 Watt Generator, Rev 01

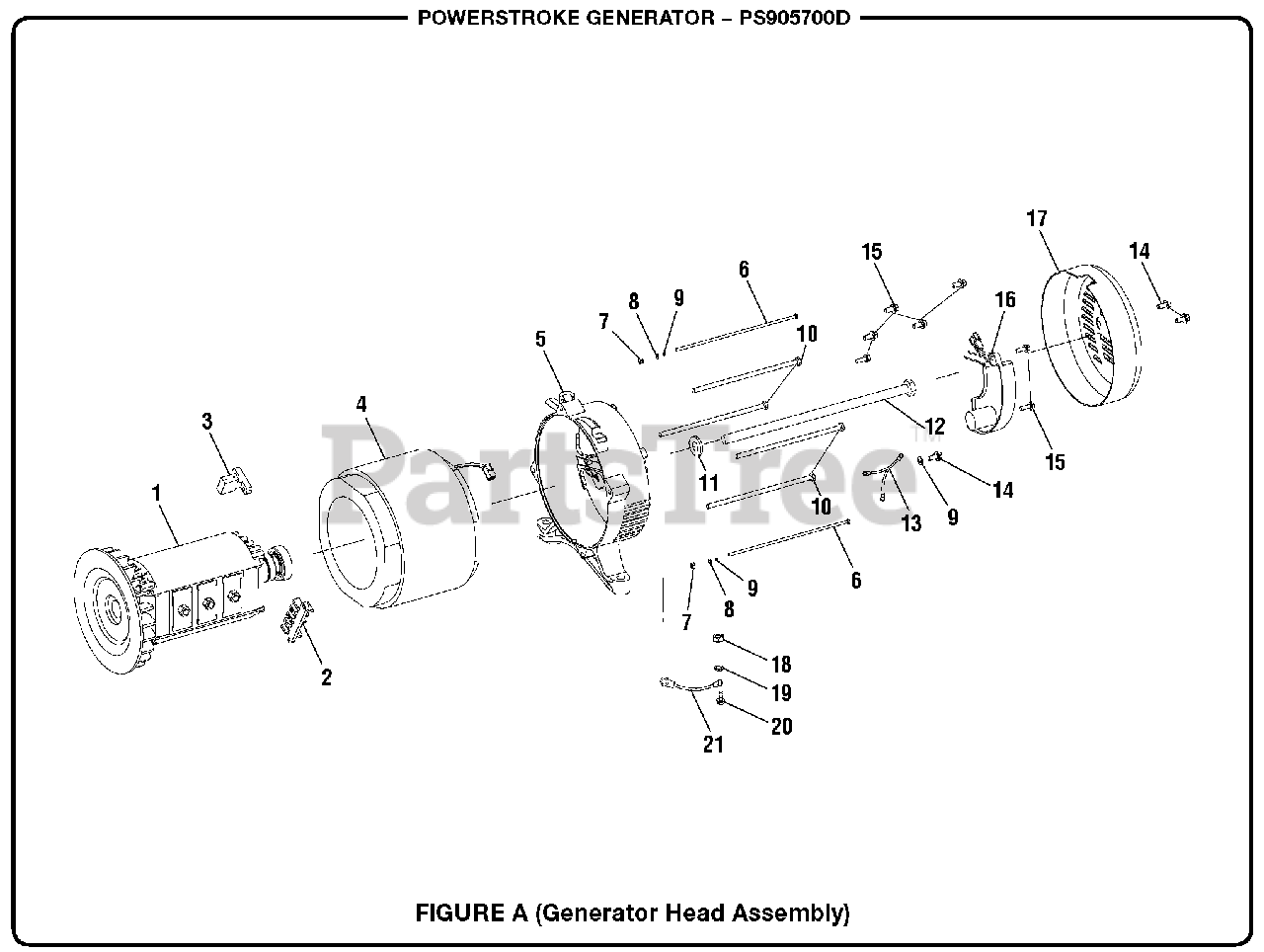

Figure A (Generator Head Assembly) Parts Diagram

  • Title

1

Homelite DJ188F-13006-A

Rotor
(Superseded to D261806)

$2.99

$

Usually ships in 3-7 days

0

2

Homelite DF3800H-33001-A

Carbon Brush

$11.99

$

Usually ships in 3-7 days

0

3

Homelite DF3800H-33002-B

Grounding Post

$

$

Not available

4

Homelite 310772030

Stator

$

$

Not available

5

Homelite DF3800H-33005-A

Motor Stand

$

$

Not available

6

Homelite DF5000H-33021-A

Bolt (M5 x 158 mm)

$

$

Not available

7

Homelite GB6170-N-5-H

Nut

$

$

Not available

8

Homelite GBT97-W-5

Flat Washer

$

$

Not available

9

Homelite GBT93-LW-5

Spring Washer

$

$

Not available

10

Homelite 660890004

Bolt

$

$

Currently unavailable

11

Homelite DF3800H-14024-A

Rotor Washer

$

$

Not available

12

Homelite 661557023

Rotor Bolt

$

$

Currently unavailable

13

Homelite DF6500H-34216-A

Grounding Wire

$

$

Not available

14

Homelite 660938025

Bolt (M5 x 12 mm, Hex Flange Hd.)

$2.49

$

In Stock, only 3 left!

0

15

Homelite 660938024

Bolt (M5 x 16 mm, Hex Flange Hd.)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite DF3800H-33011-F

Automatic Voltage Regulator

$

$

Not available

17

Homelite DF3800H-33006-A-0

Brush Cover

$

$

Currently unavailable

18

Homelite T90023

Lock Nut

$

$

Not available

19

Homelite GBT862-CW-6

C-ring

$

$

Not available

20

Homelite T91325

Bolt

$

$

Not available

21

Homelite DF3000H-31083-A

Bonding Wire

$

$

Not available
