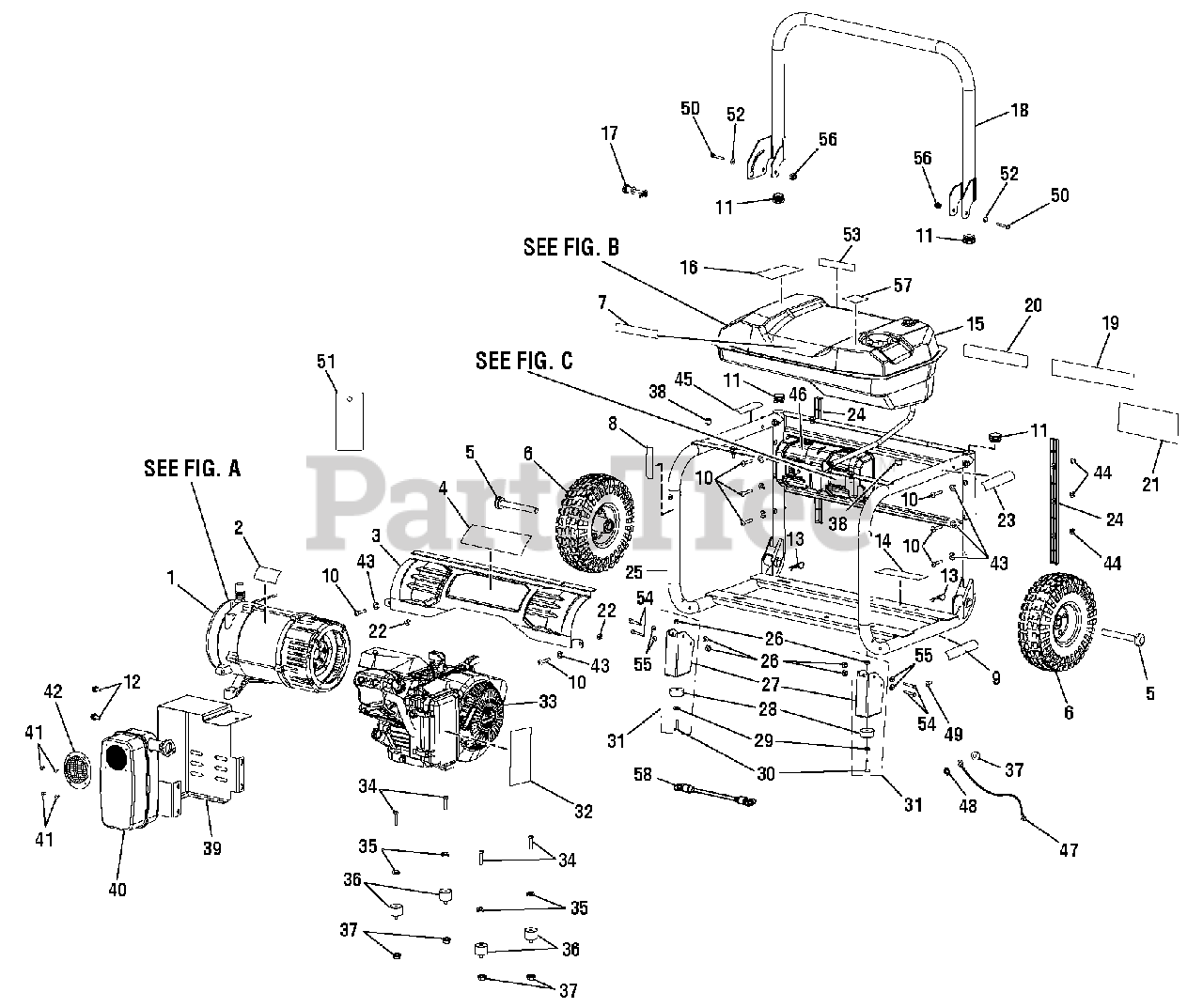

PS 905055 S - PowerStroke 5000 Watt Generator General Assembly Parts Diagram

5000 Watt Generator

General Assembly Parts Diagram

  • Title

1

Homelite 310227016

Generator Head Assembly (See Figure A)

$533.99

$

In Stock, only 1 left!

0

2

Homelite 940678272

Data Label (PS905055S)

$

$

Not available

Homelite 940678336

Data Label (PS905055SA)

$

$

Currently unavailable

3

Homelite 308444002

Back Panel Assembly

$

$

Not available

4

Homelite 940705177

Back Panel Logo Label

$7.99

$

Usually ships in 3-7 days

0

5

Homelite 620599011

Axle

$

$

Not available

6

Homelite 308451010

Wheel

$

$

Not available

7

Homelite 940974090

Fire Distance Label

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 940680020

Hot Surface Label

$

$

Not available

9

Homelite 940947006

Label (UL fire warning)

$2.99

$

Usually ships in 3-7 days

0

10

Homelite 661400003

Bolt (1/4-20 x 42.5 mm, Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 519712001

End Cap

$

$

Not available

12

Homelite 660599002

Bolt (5/16-24 x 5/8 in.)

$2.99

$

Usually ships in 3-7 days

0

13

Homelite 678238001

Hitch Pin

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 940828004

Lubricant Label

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 310711053

Fuel Tank Assembly

$

$

Not available

16

Homelite 940515020

CPSC Label

$2.99

$

Usually ships in 3-7 days

0

17

Homelite 308449003

Handle Release Pin Assembly

$10.99

$

Usually ships in 3-7 days

0

18

Homelite 310224048

Handle Assembly

$

$

Not available

19

Homelite 940707097

Danger Label

$7.49

$

Usually ships in 3-7 days

0

20

Homelite 940513013

Ground Warning Label

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 940752013

Logo Label

$11.99

$

Usually ships in 3-7 days

0

22

Homelite 678074002

Lock Nut (1/4-20)

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 940974004

Fire Danger Label

$2.99

$

Usually ships in 3-7 days

0

24

Homelite 519812004

Frame Slide Rails

$

$

Not available

25

Homelite 308471044

Frame Assembly

$

$

Currently unavailable

26

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

27

Homelite 638706006

Foot

$10.99

$

Usually ships in 3-7 days

0

28

Homelite 570554001

Wear Pad

$

$

Not available

29

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

30

Homelite 661503001

Bolt (1/4-20 x 1 in., Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 310739004

Foot Assembly

Note: (Incl. Key Nos. 26-30)

$

$

Not available

32

Homelite 940617115

Starting Instruction Label

$

$

Not available

33

Engine (Subaru EX30 2012, PS905055S)

Note: NOTE A: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

Engine (Subaru EX30 2013, PS905055SA)

Note: NOTE A: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

34

Homelite 660591006

Bolt (5/16-18 x 1.5 in.)

$2.49

$

In Stock, only 3 left!

0

35

Homelite 638678002

Lock Washer (5/16)

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 570356001

Isolator (Generator)

$

$

Not available

37

Homelite 678145002

Hex Nut (5/16-18, Flange)

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 570371003

Rubber Handle Bumper

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 638539002

Back Muffler Cover

$

$

Not available

40

Homelite 309322010

Muffler (Subaru EX30)

$

$

Not available

41

Homelite 661306001

Screw (8-32 x 3/8 in.)

$2.99

$

Usually ships in 3-7 days

0

42

Homelite 638147003

Spark Arrestor

$

$

Not available

43

Homelite 678823001

Lock Washer (M6)

$

$

Not available

44

Homelite 678810002

Hex Nut (1/4-20)

$2.49

$

Usually ships in 3-7 days

0

45

Homelite 940514007

Pin Release Label

$

$

Not available

46

Homelite 290403017

Control Panel (See Figure C)

$

$

Not available

47

Homelite 290404001

Ground Wire Assembly

$

$

Not available

48

Homelite 638704001

Star Washer (5/16 in.)

$2.99

$

Usually ships in 3-7 days

0

49

Homelite 661502005

Bolt (5/16-18 x 3/4 in.)

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 660962001

Bolt (M8 x 55 mm, Hex Hd.)
(Superseded to 660969001)

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 940971087

Danger Hang Tag

$1.99

$

Usually ships in 3-7 days

0

52

Homelite 638386003

Washer (3/8 in.)

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 941486007

Mexico Support Label

$

$

Not available

54

Homelite 661400004

Bolt (1/4-20 x 2 in., T30 Torx Hd.)
(Superseded to 661555002)

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 638387005

Washer (1/4 in.)

$1.49

$

Usually ships in 3-7 days

0

56

Homelite 678774001

Hex Nut (M8)

$2.49

$

Usually ships in 3-7 days

0

57

Homelite 940872003

E85 Label

$1.99

$

In Stock, only 2 left!

0

58

Homelite 290455002

Bond Wire

$4.49

$

Usually ships in 3-7 days

0

Homelite 988000901

Operator's Manual (PS905055S)

Note: Not Shown

$

$

Not available

Homelite 990000424

Operator's Manual (PS905055SA)

Note: Not Shown

$

$

Currently unavailable

Homelite 988000903

Quick Reference Guide (PS905055S)

Note: Not Shown

$4.99

$

Usually ships in 3-7 days

0

Homelite 990000530

Quick Reference Guide (PS905055SA)

Note: Not Shown

$

$

Currently unavailable
