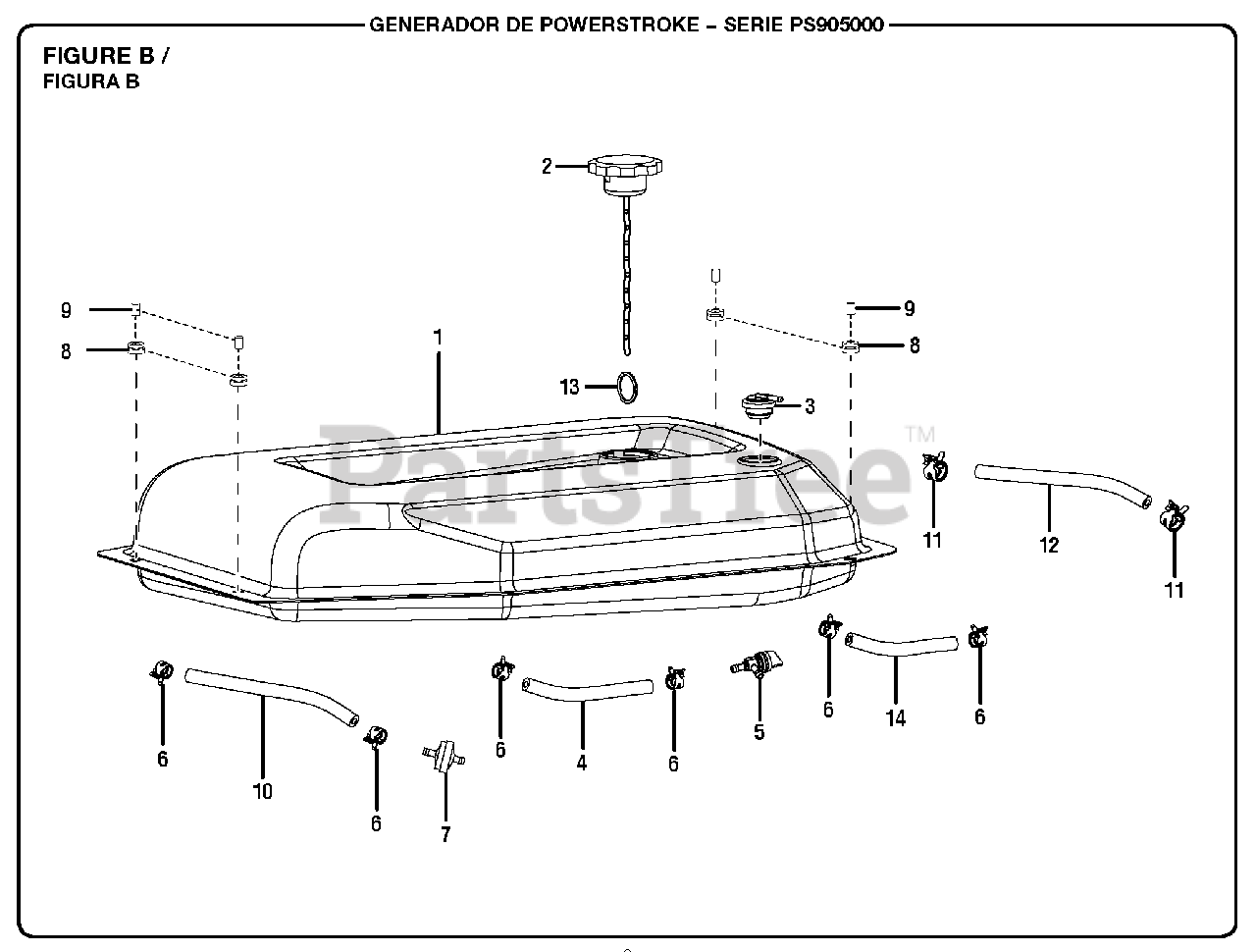

PS 905000 - PowerStroke 5000 Watt Generator Figure B Parts Diagram

5000 Watt Generator

Figure B Parts Diagram

  • Title

1

Homelite 310711097

Fuel Tank

$383.99

$

Usually ships in 3-7 days

0

2

Homelite 310720026

Fuel Cap

$40.99

$

Usually ships in 3-7 days

0

3

Homelite 310854002

Fuel Tank Vapor Vent

$

$

Not available

4

Homelite 570358071

Fuel Line (6.4 mm x 72 mm)

$

$

Not available

5

Homelite 308459002

Fuel Shut Off Valve

$32.99

$

Usually ships in 3-7 days

0

6

Homelite 678408006

Fuel Line Clamp (1/2 in.)

$3.49

$

In Stock, only 1 left!

0

7

Homelite 308733008

Fuel Filter

$7.49

$

In Stock, only 4 left!

0

8

Homelite 519832003

Bushing (Fuel Tank Isolator)

$3.49

$

Usually ships in 3-7 days

0

9

Homelite 518528002

Spacer (Fuel Tank Isolator)

$

$

Not available

10

Homelite 570358070

Fuel Line (6.4 mm x 72 mm)

$14.99

$

Usually ships in 3-7 days

0

11

Homelite 678409003

Fuel Line Clamp (7/16 in.)

$1.99

$

In Stock, Qty 5

0

12

Homelite 570358076

Vapor Hose

$5.49

$

Usually ships in 3-7 days

0

13

Homelite 678899007

Ring Clip

$2.49

$

In Stock, only 4 left!

0

14

Homelite 570358069

Fuel Line (6.4 mm x 85 mm)

$

$

Not available
