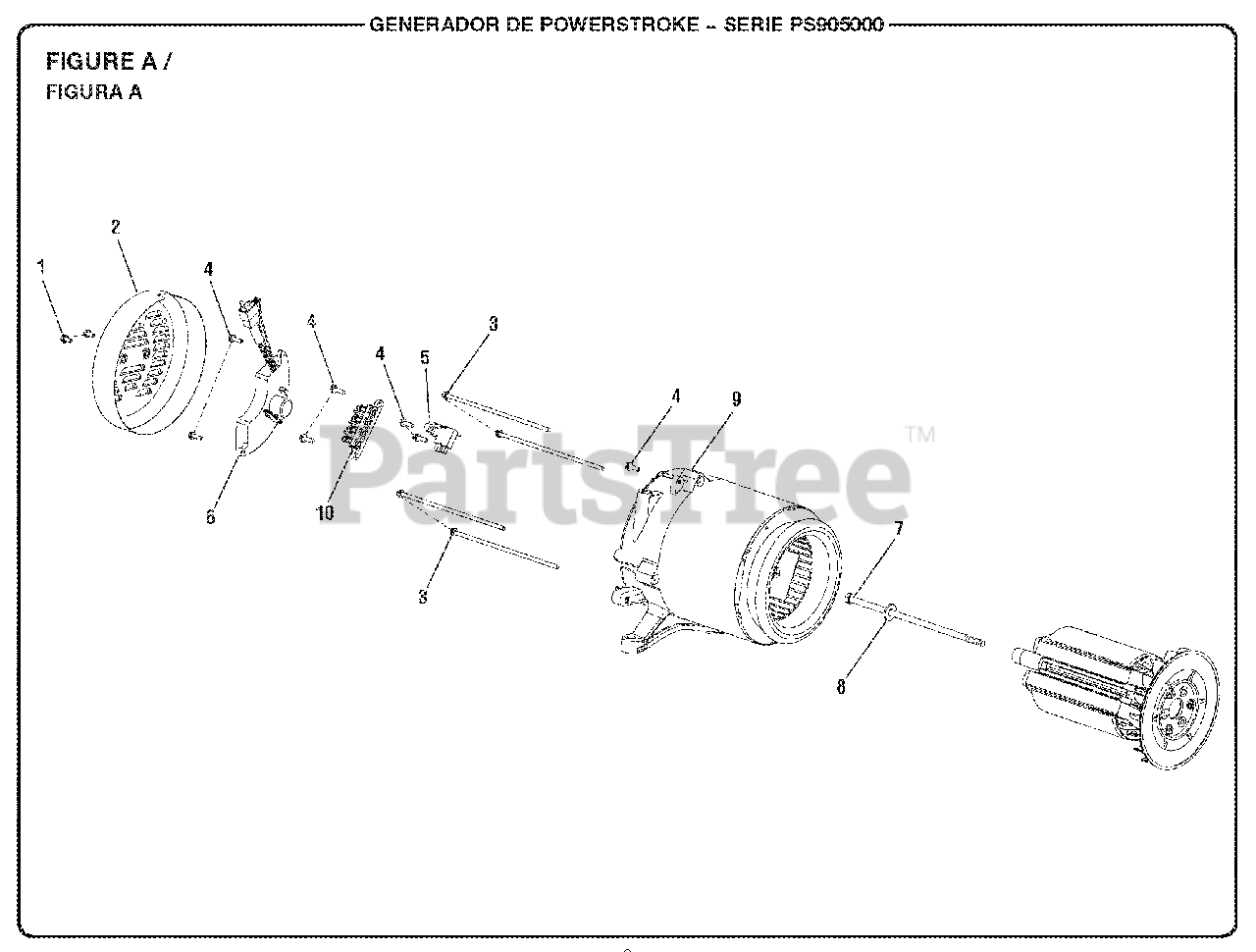

PS 905000 - PowerStroke 5000 Watt Generator Figure A Parts Diagram

5000 Watt Generator

Figure A Parts Diagram

  • Title
1

Homelite 660938025

Bolt (M5 x 10 mm, Hex Hd.)

$2.49

$

In Stock, only 3 left!

0

2

Homelite 678296002

Brush Cover

$

$

Not available

3

Homelite 660890004

Bolt (1/4-20 x 7 in., Hex Hd.)

$

$

Currently unavailable

4

Homelite 660938024

Bolt (M5 x 16 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 290441006

Brush Assembly Kit

$9.99

$

Usually ships in 3-7 days

0

6

Homelite 290440008

Automatic Voltage Regulator (5000 Watt)
(Superseded to 290440012)

$

$

Not available

7

Homelite 638128002

Washer (5/16 in.)

$

$

Not available

8

Homelite 661557023

Bolt (Rotor)

$

$

Currently unavailable

9

Homelite 678865002

Bearing Support

$58.99

$

Usually ships in 3-7 days

0

10

Homelite 290602006

Terminal Block Assembly

$5.99

$

Usually ships in 3-7 days

0
