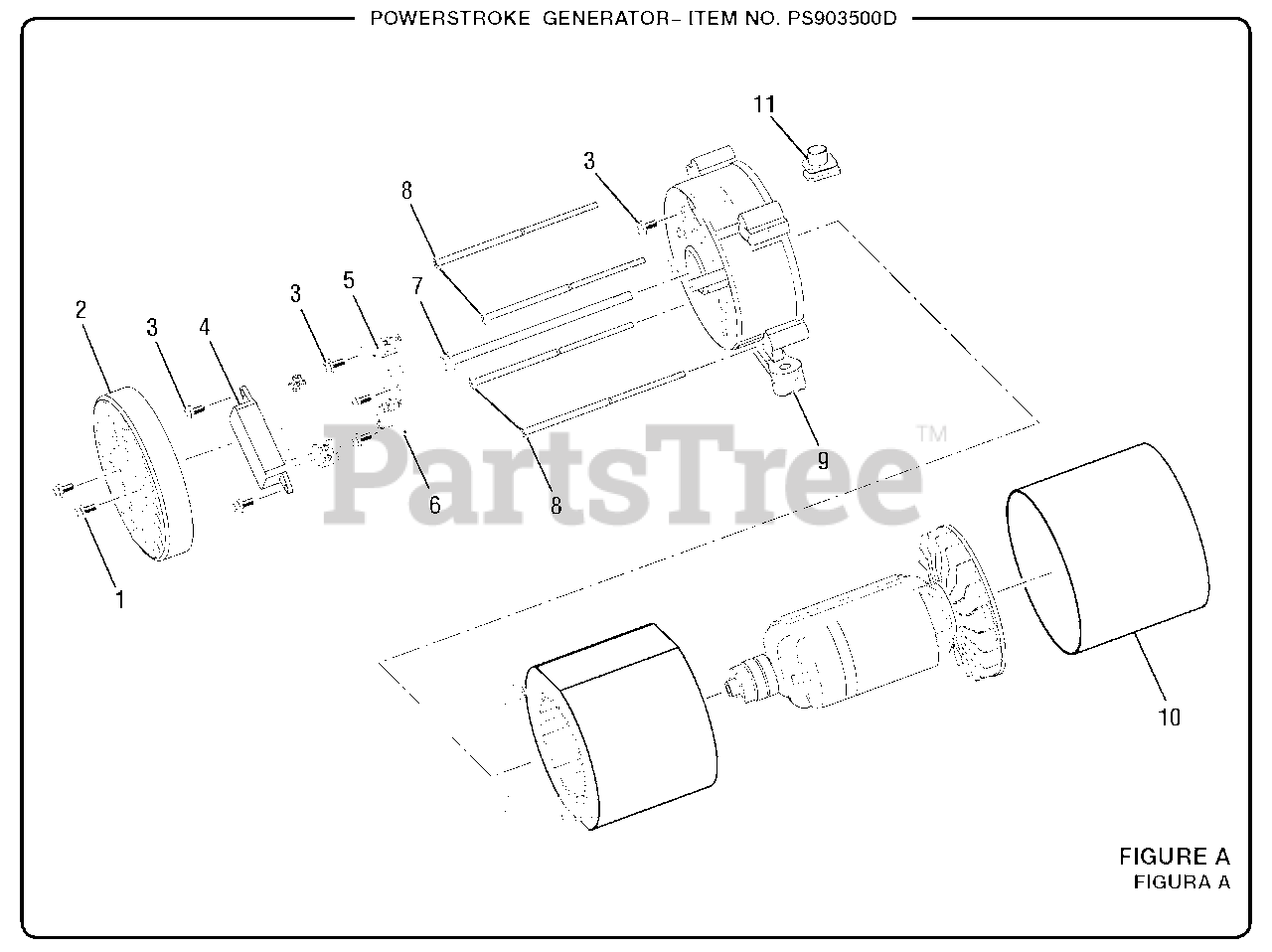

PS 903500 D (090079254) - PowerStroke 3500 Watt Generator Figure A Parts Diagram

3500 Watt Generator

Figure A Parts Diagram

  • Title
1

Homelite 660938024

Bolt (M5 x 16 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 678296005

Brush Cover

$11.99

$

In Stock, only 2 left!

0

3

Homelite 660938025

Bolt (M5 x 10 mm)

$2.49

$

In Stock, only 3 left!

0

4

Homelite 290440011

Automatic Voltage Regulator

$90.99

$

Usually ships in 3-7 days

0

5

Homelite 290441007

Brush Assembly

$8.99

$

In Stock, only 1 left!

0

6

Homelite 290602007

Terminal Block

$4.49

$

Usually ships in 3-7 days

0

7

Homelite 661557020

Rotor Bolt

$6.99

$

In Stock, only 2 left!

0

8

Homelite 661603015

Stator Bolt

$3.99

$

In Stock, only 4 left!

0

9

Homelite 678865005

Bearing Housing

$78.99

$

Usually ships in 3-7 days

0

10

Homelite 638624010

Generator Head Cover

$12.99

$

Usually ships in 3-7 days

0

11

Homelite 570766008

Rubber Boot

$6.99

$

Usually ships in 3-7 days

0
