PS 902500 D - PowerStroke 2500 Watt Generator Figure F Parts Diagram

2500 Watt Generator

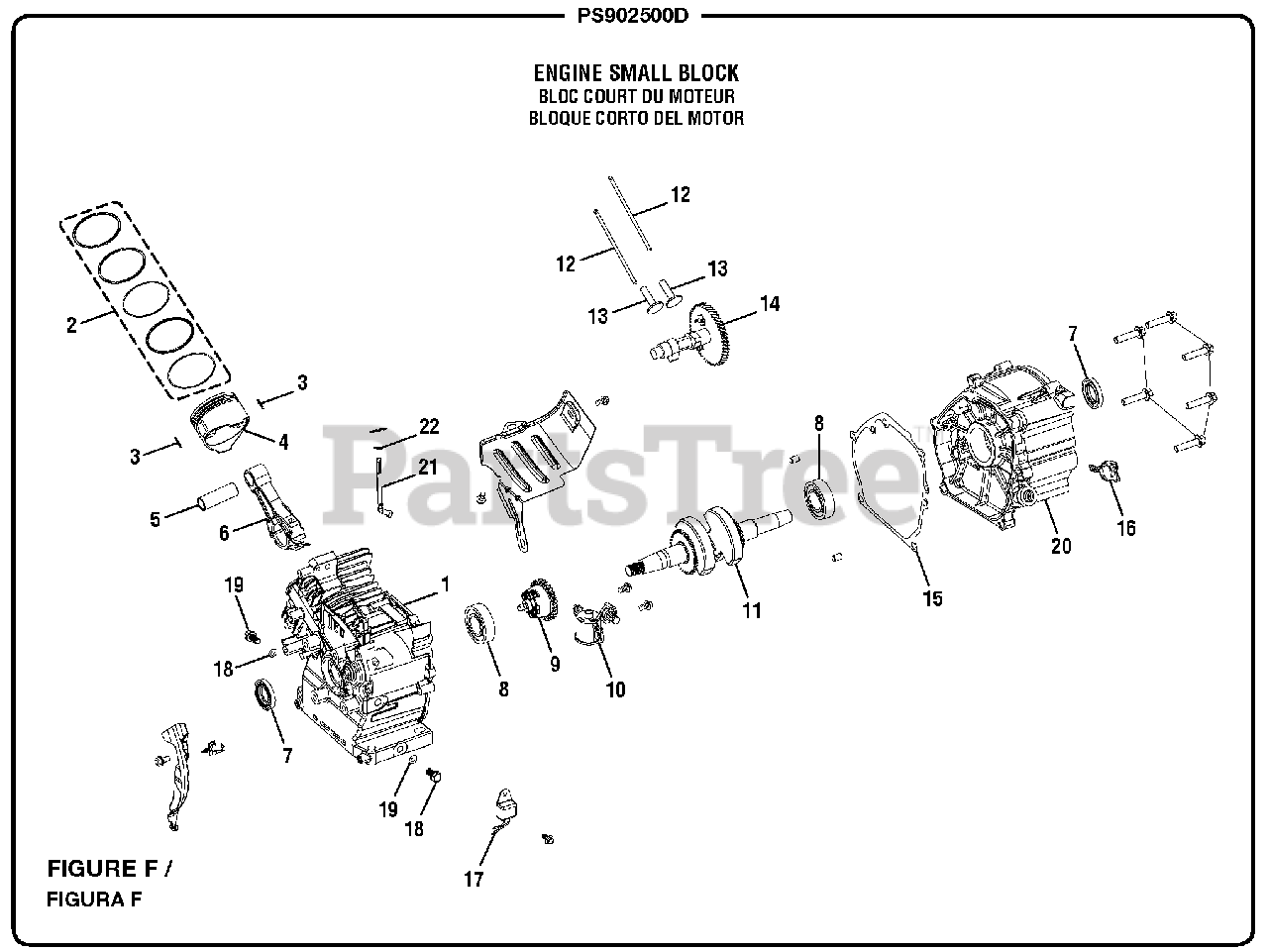

Figure F Parts Diagram

  • Title

1

Homelite 012030000104

Crankcase

$

$

Not available

2

Homelite 012030400001

Piston Ring Set

$

$

Not available

3

Homelite 518041800000

Piston Clip

$

$

Not available

4

Homelite 01203000040008

Piston

$

$

Not available

5

Homelite 012020007300

Piston Pin

$

$

Not available

6

Homelite 012020600000

Connecting Rod Assembly

$

$

Not available

7

Homelite 522010100401

Oil Seal

$

$

Not available

8

Homelite 521010010501

Ball Bearing

$

$

Not available

9

Homelite 012021200002

Governor Assembly

$

$

Not available

10

Homelite 012020005100

Switch Assembly (Oil Level)

$

$

Not available

11

Homelite 012030100013

Crankshaft Assembly

$

$

Not available

12

Homelite 012020002200

Valve Lifter Assembly

$

$

Not available

13

Homelite 012030000300

Valve Tappet

$

$

Not available

14

Homelite 012030500000

Camshaft Assembly

$

$

Not available

15

Homelite 012020000900

Casecover Gasket

$

$

Not available

16

Homelite 012020200000

Dipstick

$

$

Not available

17

Amplifier

$

$

Not available

18

Homelite 019990000300

Drain Plug

$

$

Not available

19

Homelite 019990000400

Washer.

$

$

Not available

20

Homelite 012020000801

Crankcase Cover

$

$

Not available

21

Homelite 012020000500

Governor Arm

$

$

Not available

22

Homelite 019990000600

Washer

$1.99

$

Usually ships in 3-7 days

0
