PS 902500 D - PowerStroke 2500 Watt Generator Figure E Parts Diagram

2500 Watt Generator

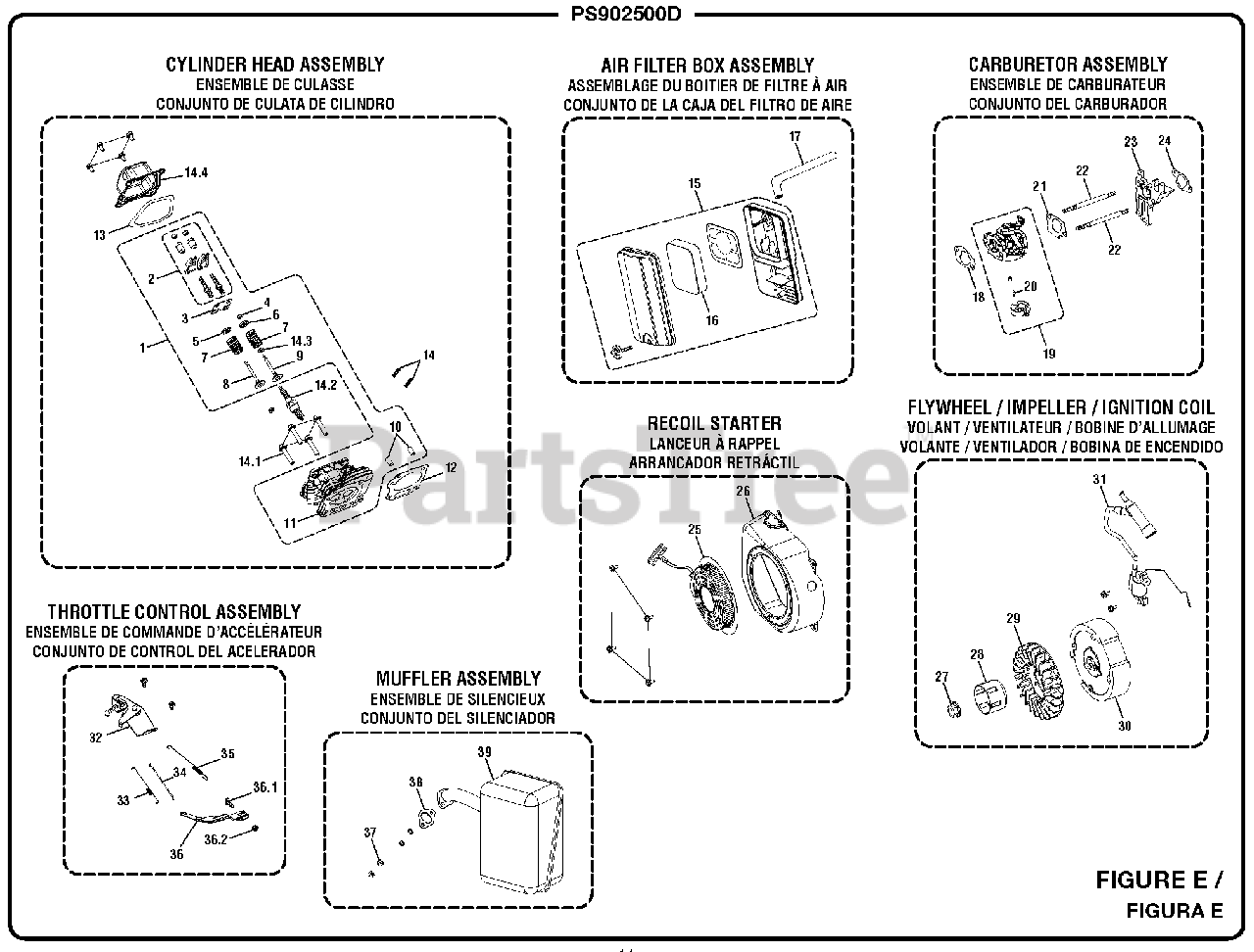

Figure E Parts Diagram

  • Title

CYLINDER HEAD ASSEMBLY

$

$

Not available

1

Cylinder Head Assembly

$

$

Not available

2

Homelite 012020300000

Rocker Assembly

$

$

Not available

3

Guide Plate

$

$

Not available

4

Homelite 012020001300

Rotator

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 012020001500

Valve Spring Seat (Intake)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 012020001400

Valve Spring Seat (Exhaust)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 012020001600

Valve Spring

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 01203000070004

Intake Valve

$6.99

$

Usually ships in 3-7 days

0

9

Homelite 01203000060004

Valve Exhaust

$6.99

$

Usually ships in 3-7 days

0

10

Homelite 514011001600

Dowel Pin

$

$

Not available

11

Homelite 012030001300

Cylinder Head

$64.99

$

Usually ships in 3-7 days

0

12

Homelite 012030000502

Cylinder Head Gasket

$3.49

$

Usually ships in 3-7 days

0

13

Homelite 012020001100

Cylinder Head Cover Gasket

$2.49

$

Usually ships in 3-7 days

0

14

Threaded Stud

$

$

Not available

14.1

Homelite 511050806006

Bolt (M8 x 60 mm, Flange Hd.)

$

$

Not available

14.2

Homelite 012020003300

Spark Plug

$

$

Not available

14.3

Homelite 012020002400

Oil Seal

$

$

Not available

14.4

Homelite 01202000100004

Cylinder Head Cover

$

$

Not available

AIR FILTER BOX ASSEMBLY

$

$

Not available

15

Homelite 012021000011

Air Cleaner Assembly

$19.99

$

Usually ships in 3-7 days

0

16

Air Filter

$

$

Not available

17

Homelite 019990000502

Breather Tube

$2.49

$

Usually ships in 3-7 days

0

CARBURETOR ASSEMBLY

$

$

Not available

18

Homelite 012020004100

Spacer

$

$

Not available

19

Homelite 012030300015

Carburetor Assembly

$49.99

$

In Stock, only 1 left!

0

20

Needle Valve

$

$

Not available

21

Homelite 012020004000

Carburetor Gasket

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 516050610001

Threaded Stud

$

$

Not available

23

Homelite 012020003900

Carburetor Insulator

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 012020003800

Intake Gasket

$2.49

$

Usually ships in 3-7 days

0

RECOIL STARTER:

$

$

Not available

25

Homelite 012021600001

Recoil Starter

$

$

Not available

26

Homelite 012020003001

Recoil Starter Cover

$

$

Not available

FLYWHEEL / IMPELLER / IGNITION COIL

$

$

Not available

27

Homelite 012020002900

Nut

$

$

Not available

28

Homelite 012020005600

Starter Pulley

$

$

Not available

29

Homelite 012020002700

Recoil Starter Fan

$

$

Not available

30

Homelite 012020800000

Flywheel Assembly

$

$

Not available

31

Homelite 012020003201

Ignition Coil Assembly

$28.99

$

Usually ships in 3-7 days

0

THROTTLE CONTROL ASSEMBLY

$

$

Not available

32

Throttle Assembly

$

$

Not available

33

Homelite 012020004301

Throttle Return Spring

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 012020004400

Governor Rod

$

$

Not available

35

Homelite 012020004201

Governor Spring

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 012020004600

Governor Arm

$

$

Not available

36.1

Homelite 012020004500

Bolt (27 mm)

$

$

Not available

36.2

Homelite 512040500000

Flange Nut (M5)

$

$

Not available

MUFFLER ASSEMBLY

$

$

Not available

37

Hex Nut

$

$

Not available

38

Exhaust Gasket

$

$

Not available

39

Muffler Assembly

$

$

Not available
