PS 902500 D - PowerStroke 2500 Watt Generator Figure D Parts Diagram

2500 Watt Generator

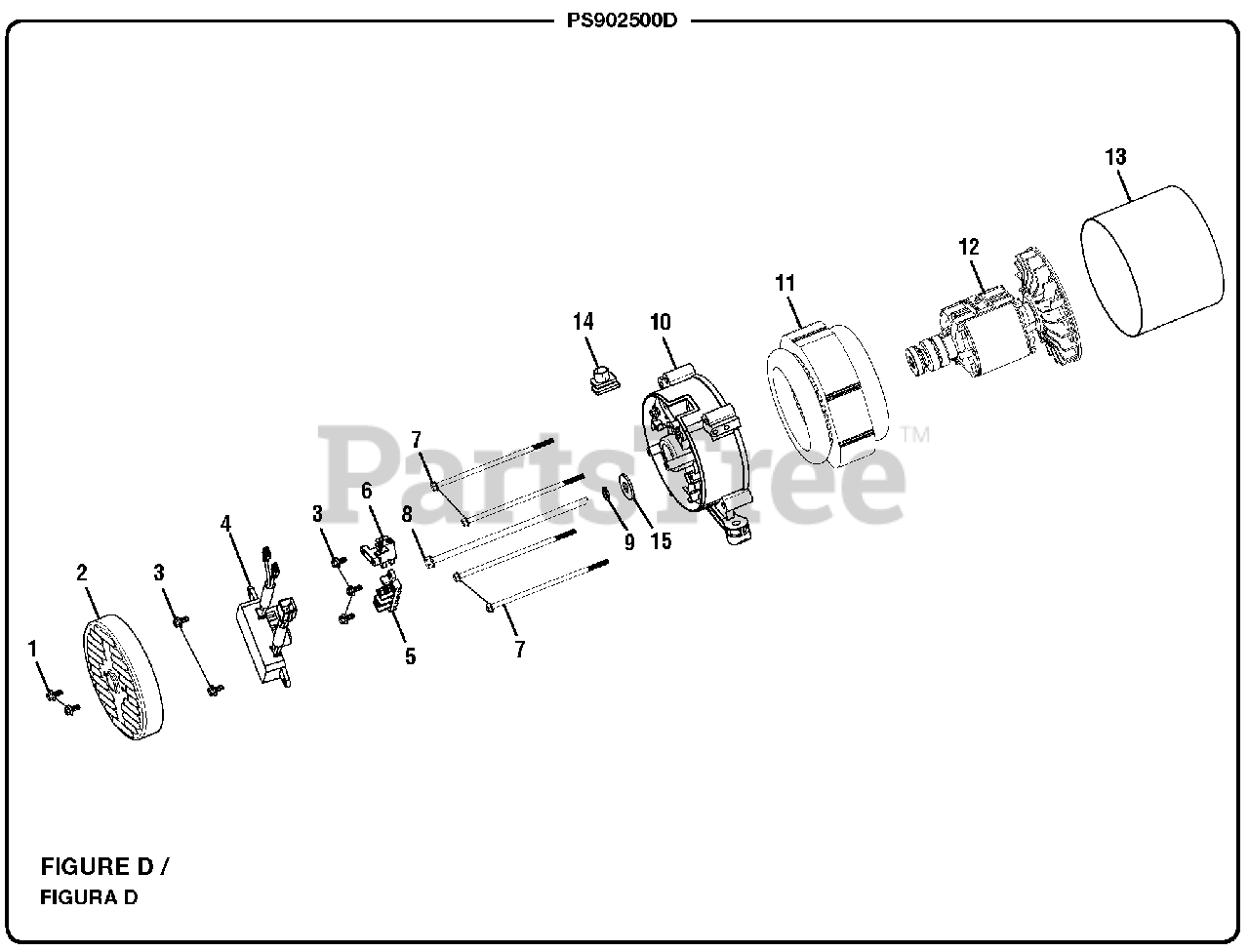

Figure D Parts Diagram

  • Title

1

Homelite 511050501201

Bolt (M5 x 12 mm, Flange Hd.)

$

$

Not available

2

Homelite 029030300203

Brush Cover

$

$

Not available

3

Homelite 511050501601

Bolt (M5 x 16 mm, Flange Hd.)

$

$

Not available

4

Homelite 029030610701

Automatic Voltage Regulator

$34.99

$

Usually ships in 3-7 days

0

5

Homelite 029030500101

Terminal Block

$

$

Not available

6

Homelite 029030700100

Brush Assembly

$3.99

$

Usually ships in 3-7 days

0

7

Homelite 511050615001

Stator Bolt (M6 x 150 mm)

$

$

Currently unavailable

8

Homelite 511010819801

Rotor Bolt (M8 x 198 mm)

$

$

Not available

9

Homelite 513020800002

Spring Washer (M8)

$

$

Not available

10

Homelite 029030400205

Bearing Support

$

$

Not available

11

Homelite 062014520001

Stator

$

$

Not available

12

Homelite 062014930001

Rotor

$

$

Not available

13

Homelite 029030100901

Cover

$

$

Not available

14

Rubber Boot

$

$

Not available

15

Homelite 513040800006

Washer (M8)

$

$

Not available
