PS 901200 - PowerStroke 1200 Watt Generator Figure A Parts Diagram

1200 Watt Generator

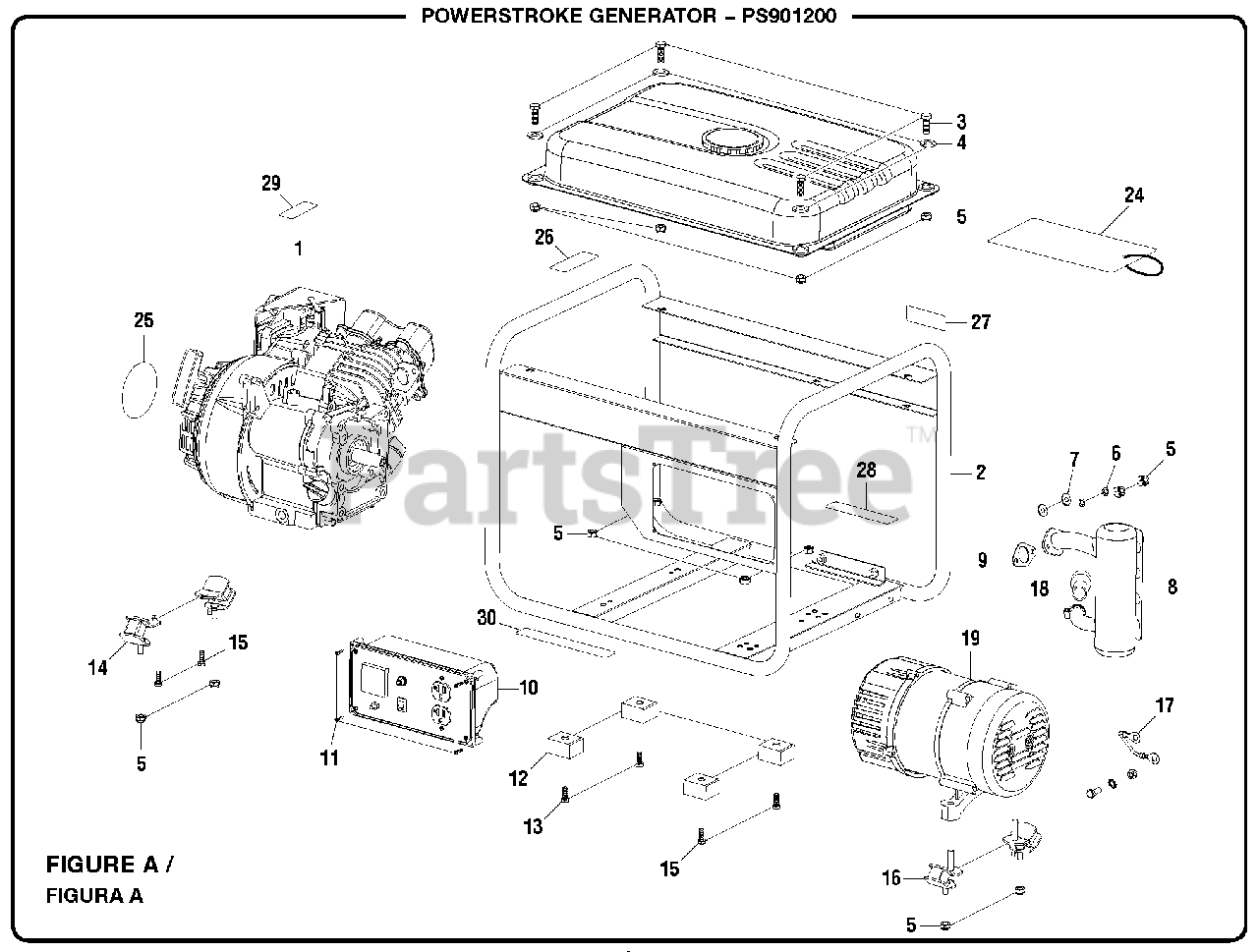

Figure A Parts Diagram

  • Title
1

Engine (152CC 2013)

$

$

Not available

2

Homelite 022040820080

Frame Assembly

$

$

Not available

3

Homelite 511050802001

Bolt (M8 x 20 mm, Flange Hd.)

$

$

Not available

4

Homelite 513040800000

Washer (M8)

$

$

Not available

5

Homelite 512040800001

Flange Nut (M8)

$

$

Not available

6

Homelite 513020800002

Spring Washer (M8)

$

$

Not available

7

Homelite 513010800001

Washer (M8)

$

$

Not available

8

Homelite 02904070000104

Muffler Assembly

$

$

Not available

9

Homelite 029049910100

Muffler Gasket

$

$

Not available

10

Homelite 290403051

Control Panel Assembly

$

$

Not available

11

Homelite 517050401204

Screw (ST4.2 x 12 mm)

$

$

Not available

12

Homelite 029910100100

Rubber Foot

$

$

Currently unavailable

13

Homelite 511050803501

Bolt (M8 x 35 mm, Flange Hd.)

$

$

Not available

14

Homelite 029910300101

Engine Isolator

$5.49

$

Usually ships in 3-7 days

0

15

Homelite 511050801601

Bolt (M8 x 16 mm, Flange Hd.)

$3.99

$

Usually ships in 3-7 days

0

16

Homelite 029910300201

Genhead Isolator

$

$

Not available

17

Homelite 029930000801

Ground Wire

$

$

Not available

18

Homelite 638147011

Spark Arrester

$13.99

$

Usually ships in 3-7 days

0

19

Homelite 029033120502

Generator Head Assembly

$

$

Not available

20

Homelite 029030200202

Adaptor Housing

$

$

Not available

21

Homelite 511050802001

Bolt (M8 x 20 mm, Flange Hd.)

$

$

Not available

22

Homelite 513020800002

Spring Washer (M8)

$

$

Not available

23

Homelite 513010800001

Washer (M8)

$

$

Not available

24

Homelite 940971082

Warning Hang Tag

$

$

Currently unavailable

25

Homelite 940633028

Recoil Label

$

$

Currently unavailable

26

Homelite 940974004

Fire Danger Label

$2.99

$

Usually ships in 3-7 days

0

27

Homelite 940680040

Hot Surface Label

$2.99

$

Usually ships in 3-7 days

0

28

Homelite 940974090

Fire Distance Label

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 940647094

Choke Label

$

$

Currently unavailable

30

Homelite 940828004

Lubricant Label

$2.49

$

Usually ships in 3-7 days

0

Homelite 120968005

High Altitude Kit (1500-7000 ft., Not Included)

Note: Not Shown

$

$

Not available

Homelite 990000623

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 990000625

Quick Reference Guide

Note: Not Shown

$

$

Not available
