PS 8C3100 (090079406) - PowerStroke Pressure Washer, Rev 01 (2018-05) General Assembly (Part 1) Parts Diagram

Pressure Washer, Rev 01

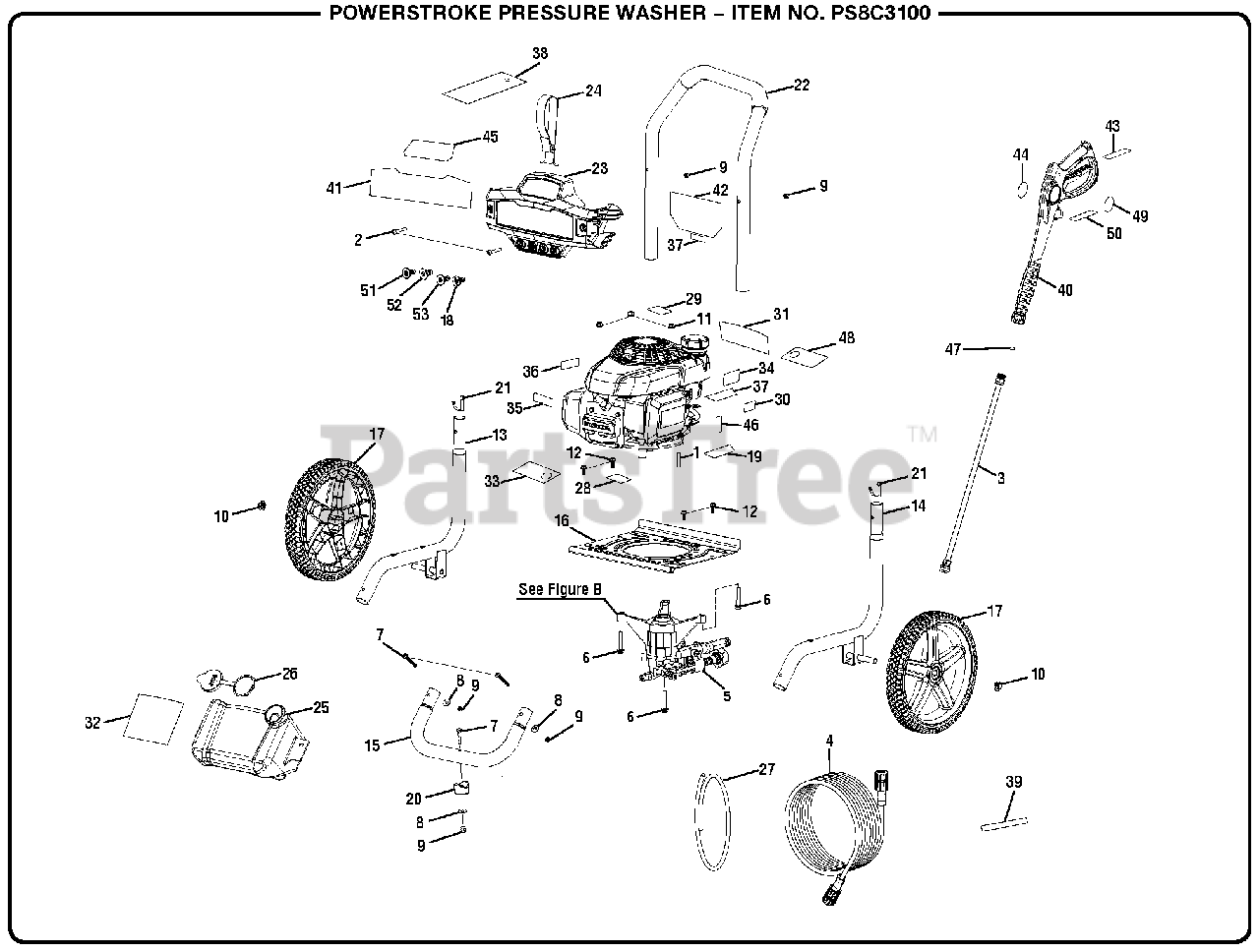

General Assembly (Part 1) Parts Diagram

  • Title

1

Homelite 678041007

Output Shaft Key

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 661834004

Bolt (M6 x 42 mm, T30 Torx Pan Hd.)

$3.49

$

Usually ships in 3-7 days

0

3

Homelite 308506014

Spray Wand

$

$

Not available

4

Homelite 308835083

Hose

$144.99

$

Usually ships in 3-7 days

0

5

Homelite 308653078

Pump

$292.99

$

In Stock, only 1 left!

0

6

Homelite 660962003

Bolt (M8 x 60 mm, Hex Hd.)

$1.99

$

In Stock, only 3 left!

0

7

Homelite 661503015

Screw (M6 x 48 mm, T-30 Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

9

Homelite 678610006

Lock Nut (M6)

$

$

Not available

10

Homelite 679957001

Cap Nut

$

$

Not available

11

Homelite 678774002

Lock Nut (M8)

$

$

Not available

12

Homelite 661505020

Bolt (M6 x 16 mm, Hex. Flange Hd.)

$

$

Not available

13

Homelite 310703012

Left Frame Assembly

Note: (Incl. Key No. 21)

$39.99

$

Usually ships in 3-7 days

0

14

Homelite 310704013

Right Frame Assembly

Note: (Incl. Key No. 21)

$39.99

$

Usually ships in 3-7 days

0

15

Homelite 310742028

Front Frame Assembly

Note: (Incl. Key Nos. 7-9 & 20)

$37.99

$

Usually ships in 3-7 days

0

16

Homelite 638662037

Engine Plate

$26.99

$

Usually ships in 3-7 days

0

17

Homelite 308451060

Wheel

$

$

Not available

18

Homelite 308706011

Soap Nozzle

$5.49

$

In Stock, only 2 left!

0

19

Homelite 940803288

EMC ICES-2/NMB-2 Label (Canada)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 570554002

Wear Pad

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 308421004

Handle Spring Clip

$

$

Not available

22

Homelite 308638060

Handle Assembly

$31.99

$

Usually ships in 3-7 days

0

23

Homelite 310673030

Hose and Nozzle Holder Assembly

$

$

Not available

24

Homelite 308350003

Hose Holder Strap

$3.99

$

In Stock, only 2 left!

0

25

Homelite 580875021

Soap Tank

$

$

Not available

26

Homelite 310650004

Soap Tank Cap

$2.99

$

In Stock, only 3 left!

0

27

Homelite 570728009

Chemical Siphon Tube
(Superseded to 561399003)

$2.99

$

In Stock, only 2 left!

0

28

Homelite 940871016

Add Oil Label

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 940947010

Combustion Warning Label (English/French)

$21.99

$

Usually ships in 3-7 days

0

30

Homelite 940647145

Choke Label

$6.99

$

Usually ships in 3-7 days

0

31

Homelite 940851343

Danger Label (English/French)

$2.99

$

Usually ships in 3-7 days

0

32

Homelite 940608042

Soap Tank Label

$7.49

$

Usually ships in 3-7 days

0

33

Homelite 940889008

Oil Dipstick Hangtag

$3.49

$

Usually ships in 3-7 days

0

34

Homelite 940872028

E85 Label

$2.99

$

Usually ships in 3-7 days

0

35

Homelite 941714004

Logo Label (Honda)

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 940680027

Hot Surface and Exhaust Label

$1.49

$

Usually ships in 3-7 days

0

37

Homelite 941486014

Inquiries Label

$

$

Not available

38

Homelite 940473038

Nozzle Hangtag

$

$

Not available

39

Homelite 940851259

Hose Label

$2.99

$

Usually ships in 3-7 days

0

40

Homelite 308760019

Trigger Handle Assembly

Note: (Incl. Key Nos. 49-50)

$46.99

$

Usually ships in 3-7 days

0

41

Homelite 940779238

Performance Label

$7.99

$

Usually ships in 3-7 days

0

42

Homelite 940617200

Quick Start Label

$8.49

$

Usually ships in 3-7 days

0

43

Homelite 940654228

Trigger Handle Warning Label (French)

$2.99

$

Usually ships in 3-7 days

0

44

Homelite 940786044

Powerstroke Spray Wand Logo Label

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 940657308

Logo Label

$3.99

$

Usually ships in 3-7 days

0

46

Homelite 940698056

Engine Label (On-Off)

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 570742072

O-Ring (9.5 x 2.65, NBR Shore A 90)

$3.49

$

In Stock, Qty 6

0

48

Homelite 940473012

Danger Hangtag

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 940654084

Trigger Handle Warning Label (English)

$2.99

$

In Stock, only 1 left!

0

50

Homelite 940786047

Trigger Handle Specifications Label

$2.49

$

Usually ships in 3-7 days

0

51

Homelite 308697012

0deg Nozzle
(Superseded to 308697014)

$15.99

$

Usually ships in 3-7 days

0

52

Homelite 308699012

25deg Nozzle

$7.99

$

Usually ships in 3-7 days

0

53

Homelite 308700012

40deg Nozzle

$6.99

$

Usually ships in 3-7 days

0

Homelite 995000431

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 995000432

Quick Start Guide

$1.99

$

Usually ships in 3-7 days

0

Homelite 519314001

Funnel

$1.99

$

Usually ships in 3-7 days

0

Homelite 900333015

Wire Tie

$

$

Not available

Homelite 991000839

O-Ring Kit Insert Sheet

$

$

Not available
