PS 8C310 E (090079310) - PowerStroke Pressure Washer, Rev 02 (2019-01) General Assembly Parts Diagram

Pressure Washer, Rev 02

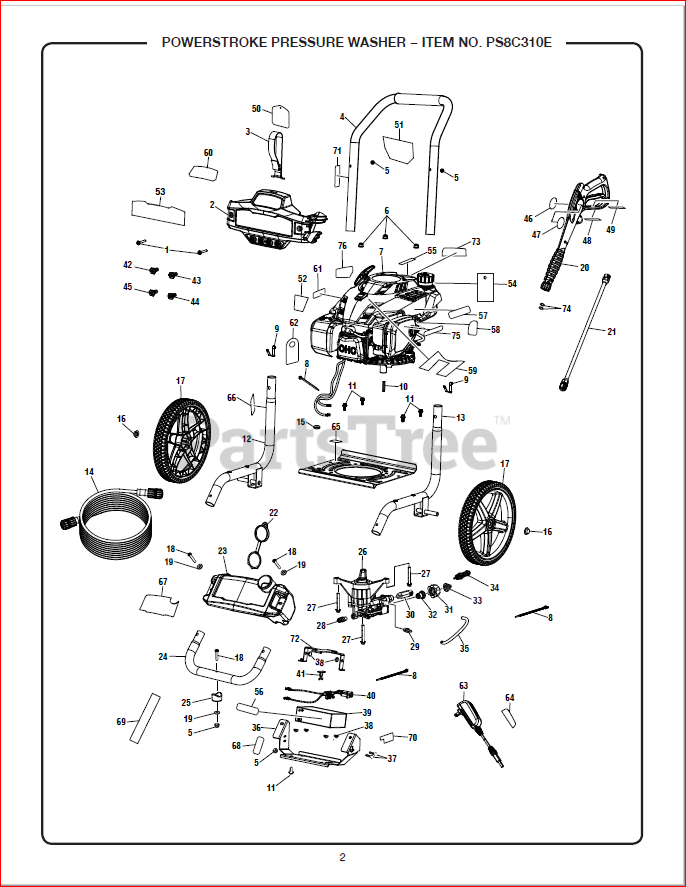

General Assembly Parts Diagram

  • Title

1

Homelite 661834004

Bolt (M6 x 42 mm, T30 Torx Hex Hd.)..

$3.49

$

Usually ships in 3-7 days

0

2

Homelite 310673030

Hose and Nozzle Holder Assembly

$

$

Not available

3

Homelite 308350003

Hose Holder Strap

$3.99

$

In Stock, only 2 left!

0

4

Homelite 308638060

Handle Assembly w/ Foam Grip

$31.99

$

Usually ships in 3-7 days

0

5

Homelite 678610006

Lock Nut (M6 x 1)

$

$

Not available

6

Homelite 678774002

Lock Nut (M8 x 1.25 mm, Flange)

$

$

Not available

7

Engine (Subaru 190V, E-Start) NOTE A

Note: OWT Industries, Inc., will not provide complete engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

8

Homelite 900333015

Cable Tie

$

$

Not available

9

Homelite 308421004

Lock Button w/Spring Clip.

$

$

Not available

10

Homelite 678041006

Output Shaft Key ( 35 mm)

$13.99

$

In Stock, only 1 left!

0

11

Homelite 661505020

Flange Bolt (M6 x 1 x 16 mm, Hex Hd.)

$

$

Not available

12

Homelite 310703012

Main Frame Assembly (Left, Inc. Key No. 42)

Note: (Left. Inc. Key No. 42)

$39.99

$

Usually ships in 3-7 days

0

13

Homelite 310704013

Main Frame Assembly (Right, Inc. Key No. 42)

Note: (Right, Inc. Key No. 42)

$39.99

$

Usually ships in 3-7 days

0

14

Homelite 308835083

Hose (30 ft.)

$144.99

$

Usually ships in 3-7 days

0

15

Homelite 561383004

Rubber Nozzle Grommet

$

$

Not available

16

Homelite 679957001

Push Cap Nut (1/2 in.)

$

$

Not available

17

Homelite 308451060

Wheel (12 in.)

$

$

Not available

18

Homelite 661503015

Screw (M6 x 1 x 48 mm, T30 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

20

Homelite 308760019

Trigger Handle Assembly

Note: (Inc. Key Nos. 47-48)

$46.99

$

Usually ships in 3-7 days

0

21

Homelite 308506006

Lower Wand Assembly
(Superseded to 308506014)

$

$

Not available

22

Homelite 310650004

Detergent Tank Cap

$2.99

$

In Stock, only 3 left!

0

23

Homelite 580875019

Soap Tank

$

$

Not available

24

Homelite 310742028

Frame Assembly (Front)

Note: (Inc. Key Nos. 5, 18-19 & 25)

$37.99

$

Usually ships in 3-7 days

0

25

Homelite 570554002

Rubber Foot

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 308653078

Pump (See Figure B)

Note: (Inc. Key Nos. 29-34)

$292.99

$

In Stock, only 1 left!

0

27

Homelite 660962003

Flange Bolt (M8 x 1.25 x 60 mm, Hex Hd.)..

$1.99

$

In Stock, only 3 left!

0

28

Homelite 678169004

Thermal Release Valve.

$

$

Not available

29

Homelite 308452002

Detergent Injector Assembly

$5.99

$

In Stock, Qty 5

0

30

Homelite 308862003

Outlet Tube

$8.99

$

Usually ships in 3-7 days

0

31

Homelite 310993003

Inlet Filter Adapter/Brass Insert

$5.49

$

Usually ships in 3-7 days

0

32

Homelite 642058001

Inlet Filter Connector

$4.49

$

Usually ships in 3-7 days

0

33

Homelite 308662001

Filter Screen (Pump Inlet)

$

$

Not available

34

Homelite 310924003

Unloader Valve Assembly

$30.99

$

In Stock, only 1 left!

0

35

Homelite 570728010

Chemical Siphon Tube
(Superseded to 561399003)

$2.99

$

In Stock, only 2 left!

0

36

Homelite 678714018

Battery Mount Bracket

$21.99

$

Usually ships in 3-7 days

0

37

Homelite 660923018

Screw (M4 x 12 mm, T20 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 570733003

Vibration Isolators

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 750400007

12 Volt Battery
(Superseded to 750400008)

$90.99

$

In Stock, only 1 left!

0

40

Homelite 290435021

Battery & Charger Wire Harness

$

$

Not available

41

Homelite 900333020

Adhesive Backed Cable Twist Tie

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 308699012

25deg Deg Nozzle

$7.99

$

Usually ships in 3-7 days

0

43

Homelite 308700012

40deg Deg Nozzle

$6.99

$

Usually ships in 3-7 days

0

44

Homelite 308697012

0deg Deg Nozzle
(Superseded to 308697014)

$15.99

$

Usually ships in 3-7 days

0

45

Homelite 308706011

Soap Nozzle (Blue)

$5.49

$

In Stock, only 2 left!

0

46

Homelite 940786044

Powerstroke Trigger Wand Logo Label

$1.99

$

Usually ships in 3-7 days

0

47

Homelite 940654084

Label (Trigger Handle Warning, English)

$2.99

$

In Stock, only 1 left!

0

48

Homelite 940786020

Label (Trigger Handle Specifications)
(Superseded to 940786006)

$

$

Not available

49

Homelite 940654228

Label (Trigger Handle Warning, French & Spanish)

$2.99

$

Usually ships in 3-7 days

0

50

Homelite 940473030

Standard Nozzle Hangtag

$

$

Not available

51

Homelite 940617169

Quick Start Label

$

$

Not available

52

Homelite 940608023

Electric Start Label

$

$

Not available

53

Homelite 940779175

Performance Label

$

$

Not available

54

Homelite 940473012

Danger Hangtag (French/English/Spanish)

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 940873003

E85 Label

$

$

Not available

56

Homelite 941155003

Battery Replacement Label

$

$

Not available

57

Homelite 940647128

Choke Label

$

$

Not available

58

Homelite 940698037

Fuel Valve & Choke Label

$

$

Not available

59

Homelite 941721006

On/Off Label

$

$

Not available

60

Homelite 940608026

Electric Start Label (English/French)

$

$

Not available

61

Homelite 940680074

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

62

Homelite 940473028

Oil Dipstick Hangtag

$

$

Not available

63

Homelite 140173031

Battery Charger
(Superseded to 140173033)

$71.99

$

Usually ships in 3-7 days

0

64

Homelite 940780029

Battery Maintainer Label

$1.99

$

Usually ships in 3-7 days

0

65

Homelite 940871016

Oil Fill Location Label

$1.49

$

Usually ships in 3-7 days

0

66

Homelite 940947016

Combustion Warning Label

$1.99

$

Usually ships in 3-7 days

0

67

Homelite 941608013

Detergent Tank Label

$

$

Not available

68

Homelite 940473025

Battery Terminal Connector Flag

$

$

Not available

69

Homelite 940473029

Charging Hangtag

$

$

Not available

70

Homelite 940780028

Battery Bracket Label

$

$

Not available

71

Homelite 941486014

Inquiries Label

$

$

Not available

72

Homelite 636694001

Battery Hold Down Bracket

$

$

Not available

73

Homelite 940871018

Danger Label (English)

$

$

Not available

Homelite 940707041

Danger Label (French)

$

$

Not available

74

Homelite 570742072

O-Ring (9.5 x 2.65, NBR Shore A 90)

$3.49

$

In Stock, Qty 6

0

75

Homelite 940803018

EMC Compliance Label

$1.99

$

Usually ships in 3-7 days

0

76

Homelite 941172001

Fuel Storage Warning Label

$

$

Currently unavailable

Homelite 519314001

Funnel

$1.99

$

Usually ships in 3-7 days

0

Homelite 17100Z02051000

AIR CLEANER ASSEMBLY

$129.99

$

Usually ships in 3-7 days

0

Homelite 991000839

O-Ring Kit Insert Sheet

$

$

Not available

Homelite 991000796

Operator's Manual

$

$

Not available

Homelite 991000797

Assembly Guide

$1.99

$

Usually ships in 3-7 days

0
