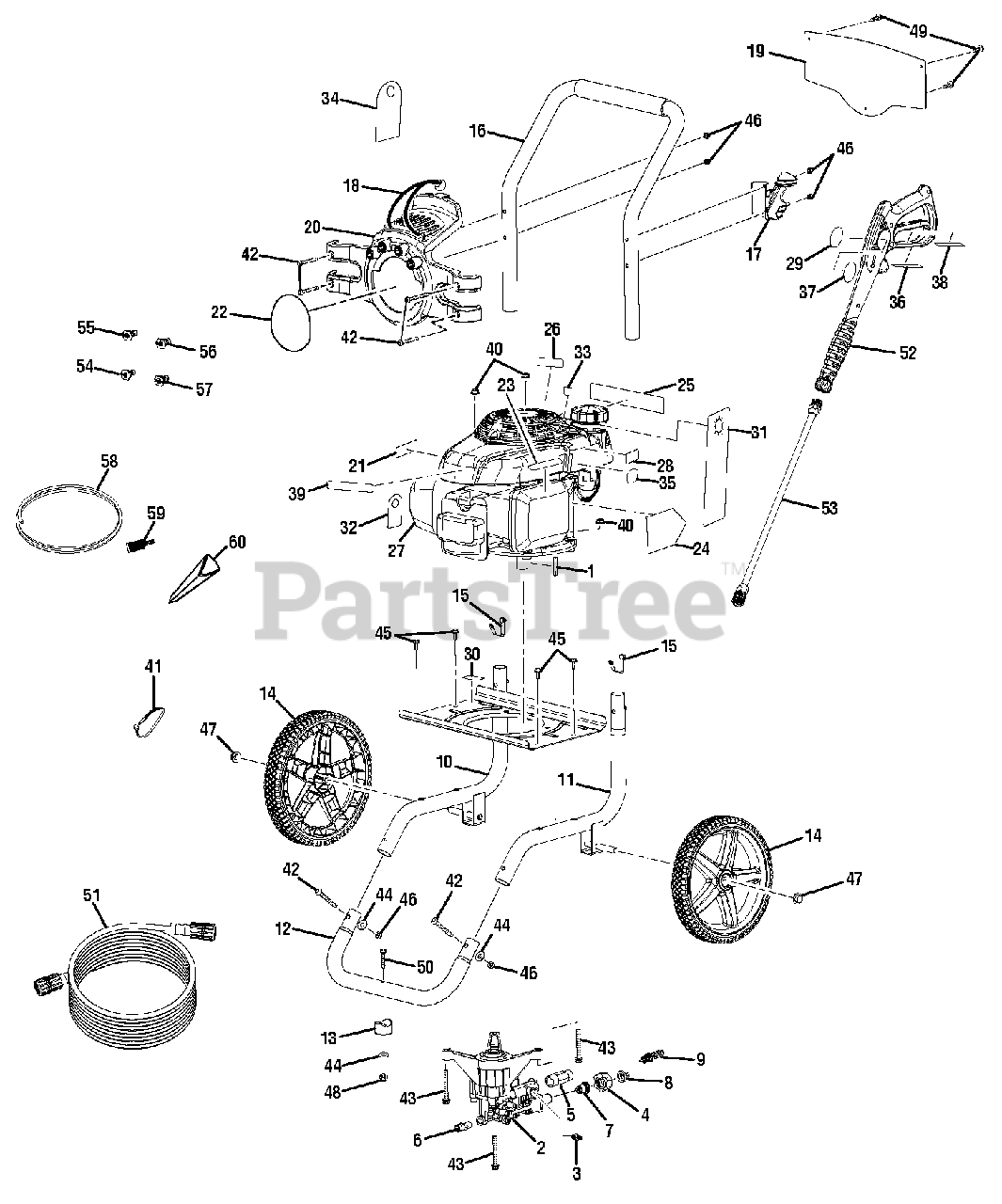

PS 80996 - PowerStroke Pressure Washer General Assembly Parts Diagram

Pressure Washer

General Assembly Parts Diagram

  • Title

1

Homelite 678041007

Output Shaft Key

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 308653072

Pump

Note: (Inc. Keys Nos.3-5 & 7-9)

$

$

Not available

3

Homelite 308452002

Detergent Injector Assembly

$5.99

$

In Stock, Qty 5

0

4

Homelite 310993003

Collar

$5.49

$

Usually ships in 3-7 days

0

5

Homelite 308862003

Outlet Tube

$8.99

$

Usually ships in 3-7 days

0

6

Homelite 678169004

Thermal Release Valve

$

$

Not available

7

Homelite 642058001

Spindle

$4.49

$

Usually ships in 3-7 days

0

8

Homelite 308662001

Filter Screen

$

$

Not available

9

Homelite 310924003

Unloader Assembly

$30.99

$

Usually ships in 3-7 days

0

10

Homelite 310703012

Main Frame Assembly

Note: (Inc. Key No. 15)

$39.99

$

Usually ships in 3-7 days

0

11

Homelite 310704013

Main Frame Assembly

Note: (Inc. Key No. 15)

$39.99

$

Usually ships in 3-7 days

0

12

Homelite 310742011

Front Frame Assembly

Note: (Inc. Key Nos. 13, 44, 48 & 50)

$20.99

$

Usually ships in 3-7 days

0

13

Homelite 570554002

Wear Pad

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 308451053

Wheel
(Superseded to 308451067)

$24.99

$

Usually ships in 3-7 days

0

15

Homelite 308421004

Spring Clip

$

$

Not available

16

Homelite 308638042

Handle Assembly

$47.99

$

Usually ships in 3-7 days

0

17

Homelite 519313009

Trigger Handle Holder

$

$

Not available

18

Homelite 310664001

Bungee Cord Assembly

$3.99

$

In Stock, only 3 left!

0

19

Homelite 524408018

Quick Start Panel

$

$

Currently unavailable

20

Homelite 310673005

Hose and Nozzle Holder

Note: (Inc. Key No. 18)

$

$

Not available

21

Homelite 940680040

Hot Surface Label

$2.99

$

Usually ships in 3-7 days

0

22

Homelite 940779137

Performance Label

$

$

Currently unavailable

23

Homelite 941486002

Inquiries Label

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 940698019

Choke Label

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 940894014

Danger Label (Eng/Sp)

$

$

Not available

26

Homelite 940947013

Combustion Label

$

$

Not available

27

Engine (Honda GCV190)

$

$

Not available

28

Homelite 940899003

Do Not Mix Label

$

$

Not available

29

Homelite 940786025

Logo Label

$

$

Not available

30

Homelite 940871002

Oil Fill Location Label

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 940473011

Danger Hangtag

$

$

Not available

32

Homelite 961454001

Dipstick Hangtag

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 940872003

No E85 Label

$1.99

$

In Stock, only 2 left!

0

34

Homelite 961039005

Nozzle Hangtag

$

$

Not available

35

Homelite 941550005

Engine On/Off Label

$

$

Not available

36

Homelite 940654228

Warning Label (Eng/Sp)

$2.99

$

Usually ships in 3-7 days

0

37

Homelite 940654084

Warning Label

$2.99

$

In Stock, only 1 left!

0

38

Homelite 940786020

Wand Rating Label
(Superseded to 940786006)

$

$

Not available

39

Homelite 941714004

Honda Brand Label

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 678774002

Lock Nut (M8 x 1.25)

$

$

Not available

41

Homelite 900333015

Wire Tie

$

$

Not available

42

Homelite 661503015

Screw (M6 x 48 mm, T30 Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 660962003

Bolt (M8 x 60 mm, Hex Flange Hd.)

$1.99

$

In Stock, only 3 left!

0

44

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

45

Homelite 661505020

Bolt (M6 x 16 mm, Hex Flange Hd.)

$

$

Not available

46

Homelite 678610006

Lock Nut (M6)

$

$

Not available

47

Homelite 679957001

Push Cap Nut (1/2 in.)

$

$

Not available

48

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

49

Homelite 660923016

Screw (#6-20 x 3/8 in.)

$2.99

$

Usually ships in 3-7 days

0

50

Homelite 661501001

Screw (1/4-20 x 1.85 in., T30 Torx Hd.).

$

$

Not available

51

Homelite 308835006

High Pressure Hose

$58.99

$

Usually ships in 3-7 days

0

52

Homelite 308760019

Trigger Handle Assembly

Note: (Inc. Keys Nos. 37-38)

$46.99

$

Usually ships in 3-7 days

0

53

Homelite 308506006

Spray Wand Assembly
(Superseded to 308506014)

$

$

Not available

54

Homelite 308697012

0deg Nozzle
(Superseded to 308697014)

$15.99

$

Usually ships in 3-7 days

0

55

Homelite 308699012

25deg Nozzle

$7.99

$

Usually ships in 3-7 days

0

56

Homelite 308700012

40deg Nozzle

$6.99

$

Usually ships in 3-7 days

0

57

Homelite 308706011

Soap Nozzle (Blue)

$5.49

$

In Stock, only 2 left!

0

58

Homelite 561399003

Chemical Siphon Tube

$2.99

$

In Stock, only 2 left!

0

59

Homelite 308103015

Chemical Siphon Filter

$2.49

$

In Stock, Qty 5

0

60

Homelite 519314001

Funnel

$1.99

$

Usually ships in 3-7 days

0

Homelite 991000017

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 991000018

Quick Reference Guide

Note: Not Shown

$

$

Currently unavailable
