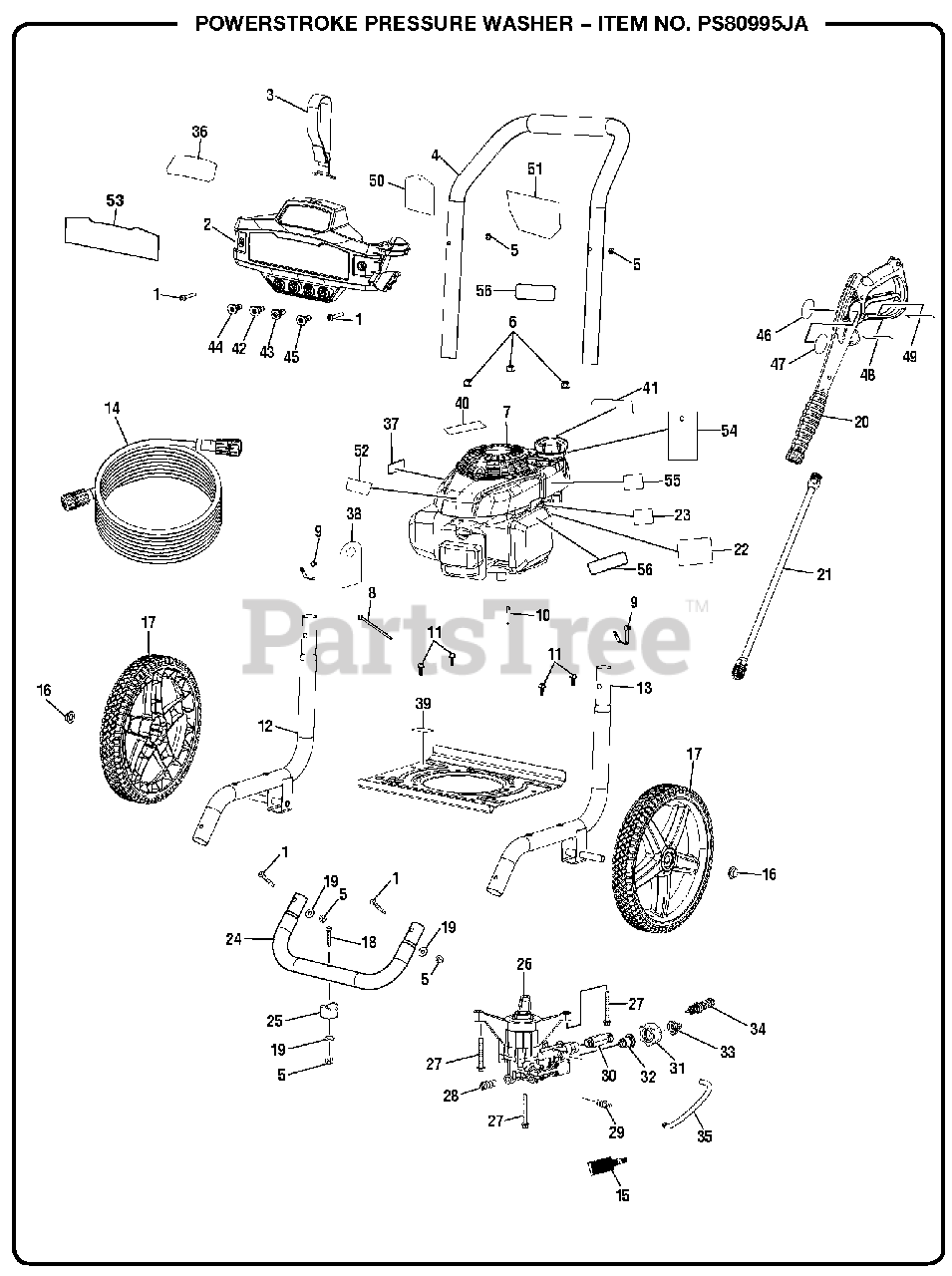

PS 80995 JA (090079414) - PowerStroke Pressure Washer, Rev 01 (2018-05) General Assembly Parts Diagram

Pressure Washer, Rev 01

General Assembly Parts Diagram

  • Title

1

Homelite 661834004

Bolt (M6 x 42 mm, T30 Torx Pan Hd.)

$3.49

$

Usually ships in 3-7 days

0

2

Homelite 310673030

Hose And Nozzle Assembly

$

$

Not available

3

Homelite 308350003

Hose Strap

$3.99

$

In Stock, only 3 left!

0

4

Homelite 308638060

Handle Assembly w/ Foam

$31.99

$

Usually ships in 3-7 days

0

5

Homelite 678610006

Lock Nut (M6 x 1)

$

$

Not available

6

Homelite 678774002

Flange Lock Nut (M8 x 1.25)

$

$

Not available

7

Engine (Honda GCV160)

Note: NOTE A: OWT Industries, Inc., will not provide complete engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

8

Homelite 900333015

Wire Tie

$

$

Not available

9

Homelite 308421004

Handle Spring Clip

$

$

Not available

10

Homelite 678041007

Output Shaft Key

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 661505020

Bolt (M6 x 1 x 16 mm, Hex Hd.)

$

$

Not available

12

Homelite 310703012

Main Frame Assembly (Left)

Note: (Inc. Key No. 9)

$39.99

$

Usually ships in 3-7 days

0

13

Homelite 310704013

Main Frame Assembly (Right)

Note: (Inc. Key No. 9)

$39.99

$

Usually ships in 3-7 days

0

14

Homelite 308835006

Hose

$58.99

$

Usually ships in 3-7 days

0

15

Homelite 308103015

Chemical Siphon Filter

$2.49

$

In Stock, Qty 5

0

16

Homelite 679957001

Push Cap Nut

$

$

Not available

17

Homelite 308451060

Wheel

$

$

Not available

18

Homelite 661503015

Screw (M6 x 1 x 48 mm, T30 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

20

Homelite 308760019

Trigger Handle Assembly

Note: (Inc. Keys Nos. 47- 48)

$46.99

$

Usually ships in 3-7 days

0

21

Homelite 308506014

Wand Assembly

$

$

Not available

22

Homelite 940647131

Fuel Valve & Choke Label

$

$

Not available

23

Homelite 940698045

On/Off Label

$

$

Not available

24

Homelite 310742028

Front Frame Assembly

Note: (Inc. Keys Nos. 5, 18-19 & 25)

$37.99

$

Usually ships in 3-7 days

0

25

Homelite 570554002

Wear Pad

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 308653052

Pump
(Superseded to 308653093)

Note: (Inc. Keys Nos. 29-34)

$170.99

$

Usually ships in 3-7 days

0

27

Homelite 660962003

Flange Bolt (M8 x 1.25 x 60 mm, Hex Hd.)

$1.99

$

In Stock, Qty 6

0

28

Homelite 678169004

Thermal Release Valve

$

$

Not available

29

Homelite 308452002

Soap Injector Kit

$5.99

$

Usually ships in 3-7 days

0

30

Homelite 308862003

Outlet Tube

$8.99

$

Usually ships in 3-7 days

0

31

Homelite 310993003

Spindle

$5.49

$

In Stock, only 1 left!

0

32

Homelite 642058001

Collar

$4.49

$

In Stock, only 1 left!

0

33

Homelite 308662001

Filter Screen (Pump Inlet)

$

$

Not available

34

Homelite 310924003

Unloader Valve Assembly

$30.99

$

Usually ships in 3-7 days

0

35

Homelite 561399003

Chemical Siphon Tube

$2.99

$

Usually ships in 3-7 days

0

36

Homelite 940705346

Logo Label

$

$

Not available

37

Homelite 940680082

Hot Surface Label

$

$

Not available

38

Homelite 961454001

Oil Dipstick Hangtag

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 940872025

Oil Fill Location Label

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 940947013

Combustion Warning Label

$

$

Not available

41

Homelite 940894014

Danger Label

$

$

Not available

42

Homelite 308699029

25deg Nozzle

$8.99

$

Usually ships in 3-7 days

0

43

Homelite 308700030

40deg Nozzle

$18.99

$

Usually ships in 3-7 days

0

44

Homelite 308697029

0deg Nozzle

$8.99

$

Usually ships in 3-7 days

0

45

Homelite 308706011

Soap Nozzle

$5.49

$

In Stock, only 2 left!

0

46

Homelite 940786044

Label (Trigger Handle Logo)

$1.99

$

Usually ships in 3-7 days

0

47

Homelite 940654084

Label (Trigger Handle Warning)

$2.99

$

In Stock, only 1 left!

0

48

Homelite 940786047

Label (Trigger Handle Rating)

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 940654228

Label (Trigger Handle Warning, French & Spanish)

$2.99

$

Usually ships in 3-7 days

0

50

Homelite 961039005

Standard Nozzle Hangtag

$

$

Not available

51

Homelite 940617175

Quick Start Label

$

$

Not available

52

Homelite 941714004

Honda Label

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 940779180

Performance Label

$

$

Not available

54

Homelite 940473011

Warning Hangtag

$

$

Not available

55

Homelite 940872003

E85 Label

$1.99

$

In Stock, only 2 left!

0

56

Homelite 941486002

Inquiries Label

$2.49

$

Usually ships in 3-7 days

0

Homelite 519314001

Funnel

Note: Not Shown

$1.99

$

Usually ships in 3-7 days

0

Homelite 308751001

Inlet Connector

$

$

Not available

Homelite 995000268

Operator's Manual

$

$

Not available

Homelite 995000419

Honda Manual (Japanese)

$

$

Not available

Homelite 995000269

Assembly Guide

$2.49

$

Usually ships in 3-7 days

0
