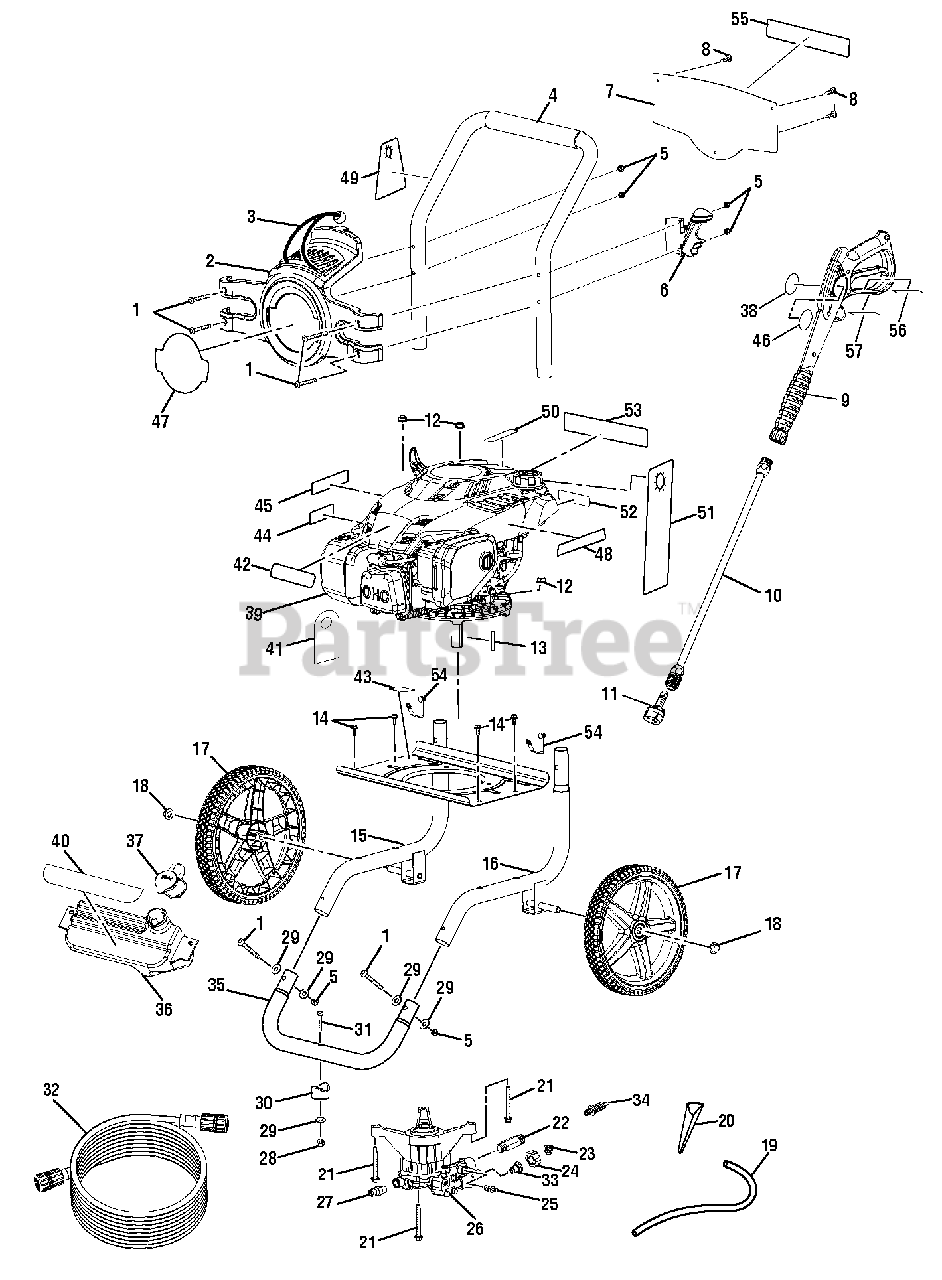

PS 80960 - PowerStroke Pressure Washer General Assembly Parts Diagram

Pressure Washer

General Assembly Parts Diagram

  • Title

1

Homelite 661503015

Screw (M6 x 48 mm, T30 Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 310673016

Hose and Nozzle Holder Assembly

$

$

Not available

3

Homelite 900333015

Wire Tie

$

$

Not available

4

Homelite 308638042

Handle w/Foam

$47.99

$

Usually ships in 3-7 days

0

5

Homelite 678610006

Lock Nut (M6)

$

$

Not available

6

Homelite 519313009

Wand Holder

$

$

Not available

7

Homelite 524408025

Instruction Panel
(Superseded to 524408014)

$

$

Not available

8

Homelite 660923016

Screw (#6-20 x 3/8 in.)

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 308760019

Trigger Handle Assembly

Note: (Inc. Keys 46 & 56)

$46.99

$

Usually ships in 3-7 days

0

10

Homelite 308506006

Spray Wand Assembly
(Superseded to 308506014)

$

$

Not available

11

Homelite 310448006

Nozzle

$55.99

$

Usually ships in 3-7 days

0

12

Homelite 678774002

Flange Nut (M8 x 1.25)

$

$

Not available

13

Homelite 678041006

Output Shaft Key (35 mm)

$13.99

$

In Stock, only 1 left!

0

14

Homelite 661505020

Bolt (M6 x 16 mm, Flange Hex Hd.)

$

$

Not available

15

Homelite 310703012

Main Frame Assembly

Note: (Inc. Key 54)

$39.99

$

Usually ships in 3-7 days

0

16

Homelite 310704013

Main Frame Assembly

Note: (Inc. Key 54)

$39.99

$

Usually ships in 3-7 days

0

17

Homelite 308451053

Wheel
(Superseded to 308451067)

$24.99

$

Usually ships in 3-7 days

0

18

Homelite 679957001

Push Cap Nut (1/2 in.)

$

$

Not available

19

Homelite 570728006

Chemical Siphon Tube

$

$

Not available

20

Homelite 519314001

Funnel

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 660962003

Bolt (M8 x 60 mm, Flange Hd.)

$1.99

$

In Stock, only 3 left!

0

22

Homelite 308862003

Outlet Tube

$8.99

$

Usually ships in 3-7 days

0

23

Homelite 308662001

Filter Screen

$

$

Not available

24

Homelite 310993003

Collar

$5.49

$

Usually ships in 3-7 days

0

25

Homelite 308452002

Detergent Suction Kit

$5.99

$

In Stock, Qty 5

0

26

Homelite 308653059

Pump

$186.99

$

In Stock, only 1 left!

0

27

Homelite 678169004

Thermal Release Valve

$

$

Not available

28

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

29

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

30

Homelite 570554002

Wear Pad

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 661501001

Screw (1/4-20 x 1.85 in., T30 Torx Hd.)

$

$

Not available

32

Homelite 308835006

Hose (25 ft.)

$58.99

$

Usually ships in 3-7 days

0

33

Homelite 642058001

Spindle

$4.49

$

Usually ships in 3-7 days

0

34

Homelite 310924003

Unloader Valve Assembly

$30.99

$

In Stock, only 1 left!

0

35

Homelite 310742011

Front Frame

Note: (Inc. Keys 28-31)

$20.99

$

Usually ships in 3-7 days

0

36

Homelite 580875008

Soap Tank

$

$

Not available

37

Homelite 310650004

Soap Tank Cap

$2.99

$

In Stock, only 3 left!

0

38

Homelite 940786025

Trigger Handle Logo Label

$

$

Not available

39

Engine (Subaru EA190)

$

$

Not available

40

Homelite 941608010

Soap Dilution Label

$2.99

$

Usually ships in 3-7 days

0

41

Homelite 940889002

Dipstick Hang tag

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 940608010

Subaru Label

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 940871002

Engine Oil Fill Label

$1.99

$

Usually ships in 3-7 days

0

44

Homelite 940947006

Combustion Label

$2.99

$

Usually ships in 3-7 days

0

45

Homelite 940680040

Hot Surface Label

$2.99

$

Usually ships in 3-7 days

0

46

Homelite 940654084

Trigger Handle Warning Label (Eng)

$2.99

$

In Stock, only 1 left!

0

47

Homelite 940779125

Performance Label

$

$

Not available

48

Homelite 941088022

Engine Control Label

$2.99

$

Usually ships in 3-7 days

0

49

Homelite 941609001

5- In- 1 Nozzle Hangtag

$2.99

$

Usually ships in 3-7 days

0

50

Homelite 940873007

E85 Label

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 940473011

Danger Hangtag

$

$

Not available

52

Homelite 940899003

Gas Only Label

$

$

Not available

53

Homelite 940971069

Danger Label

$

$

Not available

54

Homelite 308421004

Handle Spring Clip

$

$

Not available

55

Homelite 941486002

Inquiries Label

$2.49

$

Usually ships in 3-7 days

0

56

Homelite 940786020

Trigger Handle Rating Label
(Superseded to 940786006)

$

$

Not available

57

Homelite 940654228

Trigger Handle Warning Label (Fr/Sp)

$2.99

$

Usually ships in 3-7 days

0

Homelite 990000934

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 990000935

Quick Start Guide

Note: Not Shown

$5.49

$

Usually ships in 3-7 days

0
