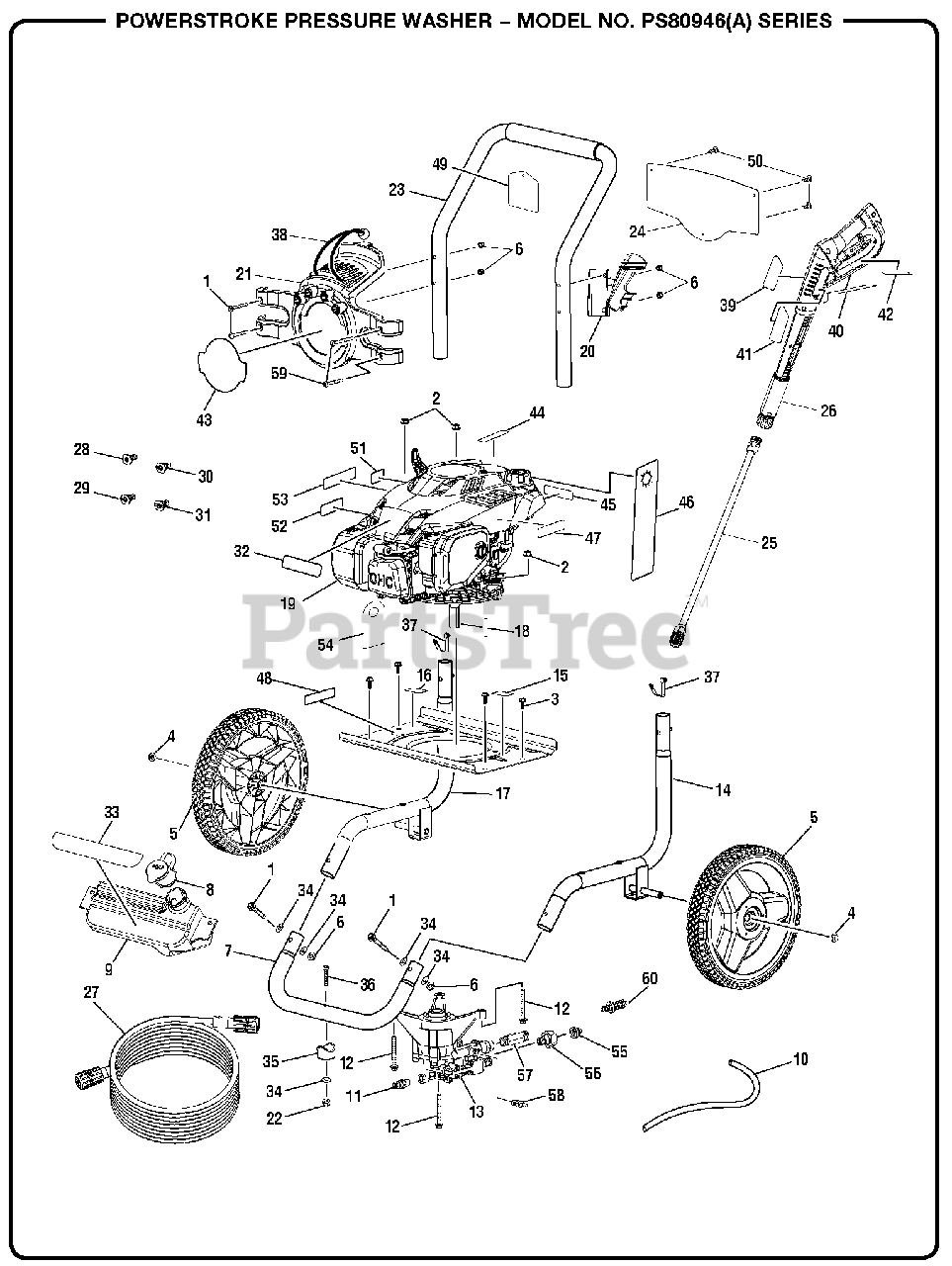

PS 80946 A - PowerStroke Pressure Washer General Assembly Parts Diagram

Pressure Washer

General Assembly Parts Diagram

  • Title

1

Homelite 661503015

Screw (M6 x 48 mm, T30 Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 678774002

Flange Nut (M8 x 1.25 in.)

$

$

Not available

3

Homelite 661505020

Bolt (M6 x 16 mm, Flanged Hex Hd.)

$

$

Not available

4

Homelite 679957001

Metal Cap

$

$

Not available

5

Homelite 308451039

Wheel (12 in.)

$

$

Not available

6

Homelite 678610006

Lock Nut (M6)

$

$

Not available

7

Homelite 310742011

Front Frame Assembly

Note: (Inc. Key Nos. 22 and 34-36)

$20.99

$

Usually ships in 3-7 days

0

8

Homelite 310650004

Soap Tank Cap

$2.99

$

In Stock, only 3 left!

0

9

Homelite 580875008

Soap Tank

$

$

Not available

10

Homelite 570728006

Chemical Siphon Tube

$

$

Not available

11

Homelite 678169004

Thermal Release Valve

$

$

Not available

12

Homelite 660962003

Bolt (M8 x 60 mm, Flange Hd.)

$1.99

$

In Stock, only 3 left!

0

13

Homelite 308653045

Pump
(Superseded to 308653093)

$170.99

$

Usually ships in 3-7 days

0

14

Homelite 310704013

Main Frame Assembly (Right)

$39.99

$

Usually ships in 3-7 days

0

15

Homelite 940676024

Warning Label

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 940871002

Oil Fill Location Label

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 310703012

Main Frame Assembly (Left)

$39.99

$

Usually ships in 3-7 days

0

18

Homelite 678041006

Output Shaft Key (35mm)

$13.99

$

In Stock, only 1 left!

0

19

Engine (Subaru 190V, 2013)

Note: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

20

Homelite 519313009

Wand Holder

$

$

Not available

21

Homelite 310673005

Hose and Nozzle Assembly

Note: (Inc. Key No. 38)

$

$

Not available

22

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

23

Homelite 308638042

Handle w/Foam

$47.99

$

Usually ships in 3-7 days

0

24

Homelite 524408014

Quick Start Panel

$

$

Not available

25

Homelite 308506006

Spray Wand Assembly
(Superseded to 308506014)

$

$

Not available

26

Homelite 308760009

Trigger Handle Assembly

$

$

Not available

27

Homelite 308835006

Hose (25 ft.)

$58.99

$

Usually ships in 3-7 days

0

28

Homelite 308706011

Soap Nozzle

$5.49

$

In Stock, only 2 left!

0

29

Homelite 308699012

25deg Nozzle

$7.99

$

Usually ships in 3-7 days

0

30

Homelite 308700012

40deg Nozzle

$6.99

$

Usually ships in 3-7 days

0

31

Homelite 308697012

0deg Nozzle
(Superseded to 308697014)

$15.99

$

Usually ships in 3-7 days

0

32

Homelite 940608010

Subaru Label

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 941608004

Detergent Tank Label

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

35

Homelite 570554002

Wear Pad

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 661501001

Screw (1/4-20 x 1.85 in., T30 Torx Hd.)

$

$

Not available

37

Homelite 308421004

Spring Clip

$

$

Not available

38

Homelite 310664001

Bungee Cord Assembly

$3.99

$

In Stock, only 3 left!

0

39

Homelite 940870009

Label (Trigger Handle Logo)

$

$

Currently unavailable

40

Homelite 940786020

Label (Trigger Handle Specifications)
(Superseded to 940786006)

$

$

Not available

41

Homelite 940654083

Label (Trigger Handle Warning)

$2.99

$

Usually ships in 3-7 days

0

42

Homelite 940654089

Label (Trigger Handle Warning, French & Spanish)

$1.49

$

In Stock, only 1 left!

0

43

Homelite 940779091

Performance Label

$

$

Currently unavailable

44

Homelite 940873007

E85 Label

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 940899003

Do Not Mix Label

$

$

Not available

46

Homelite 940971083

Warning Hangtag

$

$

Currently unavailable

47

Homelite 941088022

Engine Control Label

$2.99

$

Usually ships in 3-7 days

0

48

Homelite 941531068

Data Label

$

$

Currently unavailable

49

Homelite 961039005

Nozzle Hangtag

$

$

Not available

50

Homelite 660923016

Screw (#6-20 x 3/8 in., T10 Torx Pan Hd.)

$2.99

$

Usually ships in 3-7 days

0

51

Homelite 940517009

Lubricant Label

$1.49

$

Usually ships in 3-7 days

0

52

Homelite 940680040

Hot Surface Label

$2.99

$

Usually ships in 3-7 days

0

53

Homelite 940947006

Combustion Label

$2.99

$

Usually ships in 3-7 days

0

54

Homelite 940889002

Oil Dipstick Hangtag

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 308662001

Filter Screen

$

$

Not available

56

Homelite 308862003

Outlet Tube

$8.99

$

Usually ships in 3-7 days

0

57

Homelite 308861003

Inlet Tube

$21.99

$

In Stock, only 3 left!

0

58

Homelite 308452002

Soap Injector Kit

$5.99

$

In Stock, Qty 5

0

59

Homelite 661834002

Screw (M6 x 55 mm, T30 Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0

60

Homelite 310924003

Unloader Valve

$30.99

$

Usually ships in 3-7 days

0

Homelite 900333015

Wire Tie

Note: Not Shown

$

$

Not available

Homelite 519314001

Funnel

Note: Not Shown

$1.99

$

Usually ships in 3-7 days

0

Homelite 990000543

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
