PS 80720 - PowerStroke Electric Pressure Washer Figure D Parts Diagram

Electric Pressure Washer

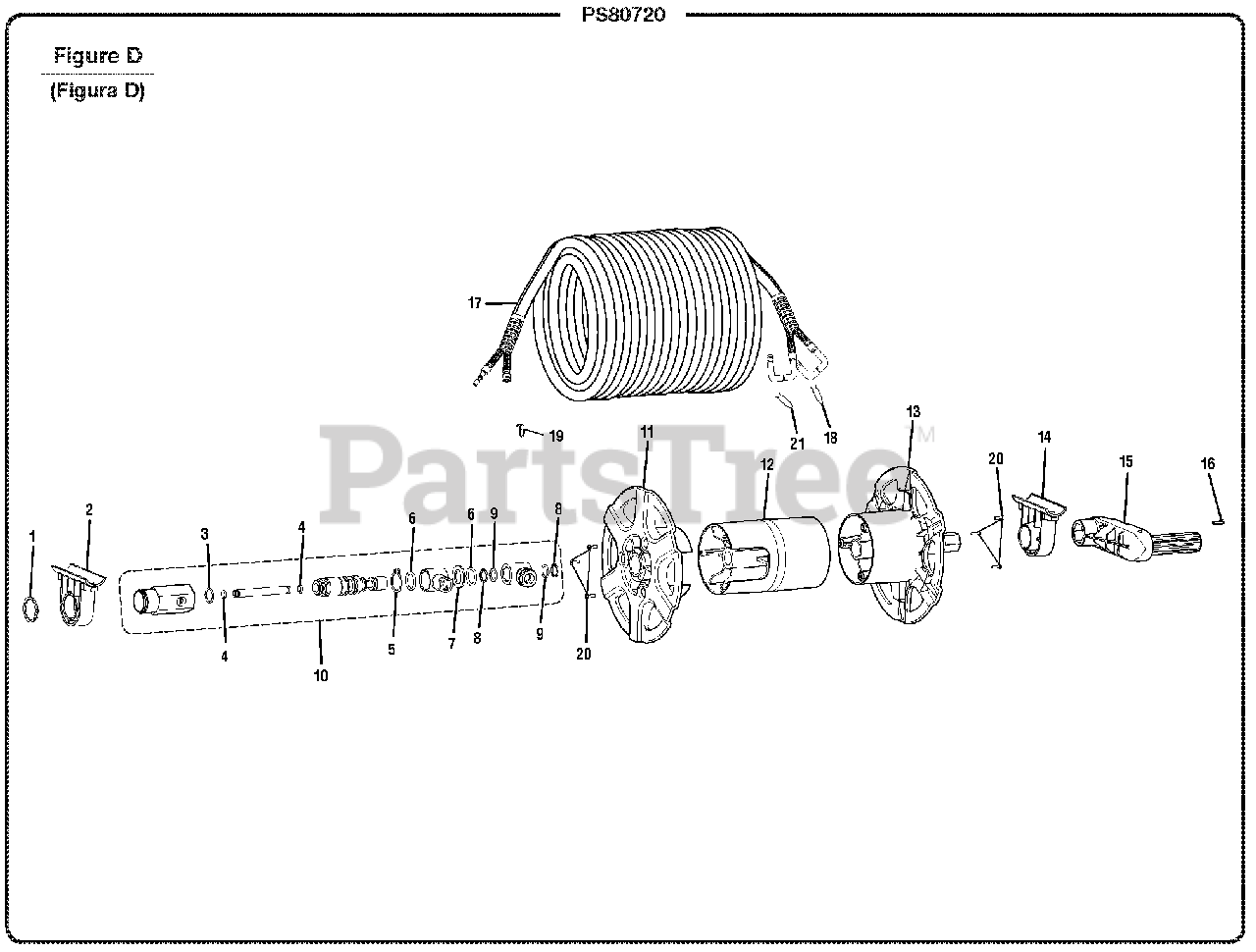

Figure D Parts Diagram

  • Title
1

Homelite 678895003

Retaining Ring

$

$

Not available

2

Homelite 522942001

Mounting Bracket (Left)

$

$

Not available

$

$

Not available

$

$

Not available

5

Homelite 678895002

Retaining Ring

$

$

Not available

$

$

Not available

7

Homelite 638128009

Washer (ID16.2 x OD28 x 2.5t)

$

$

Not available

8

Homelite 570474002

Backup Ring (ID13 x OD16 x 1.4t)

$

$

Not available

$

$

Not available

10

Homelite 310451001

Water Inlet

$

$

Not available

11

Homelite 570470003

Cover (Left)

$

$

Not available

12

Homelite 522943001

Middle Body

$

$

Not available

13

Homelite 570471003

Cover (Right)

$

$

Not available

14

Homelite 522941001

Mounting Bracket (Right)

$

$

Not available

15

Homelite 310450001

Handle Assembly

$

$

Not available

16

Homelite 661403008

Screw (M4 x 12 mm, Pan Hd.)

$

$

Not available

$

$

Not available

18

Homelite 678632004

Low Pressure Hose Clip

$

$

Not available

19

Homelite 519858002

Low Pressure Trigger Handle Clip

$

$

Not available

20

Homelite 660923006

Screw (M3 x 10 mm)

$

$

Not available

21

Homelite 678632003

High Pressure Hose Clip

$

$

Not available

Homelite 309008002

Hose Reel Assembly Inc. Key Nos. 1-16 and 20)

Note: Not Shown

$

$

Not available

Homelite 120440003

Hose Reel Seal Kit (Inc. Key Nos. 3-4, 6, and 8-9)

Note: Not Shown

$

$

Not available
