PS 80720 - PowerStroke Electric Pressure Washer Figure B Parts Diagram

Electric Pressure Washer

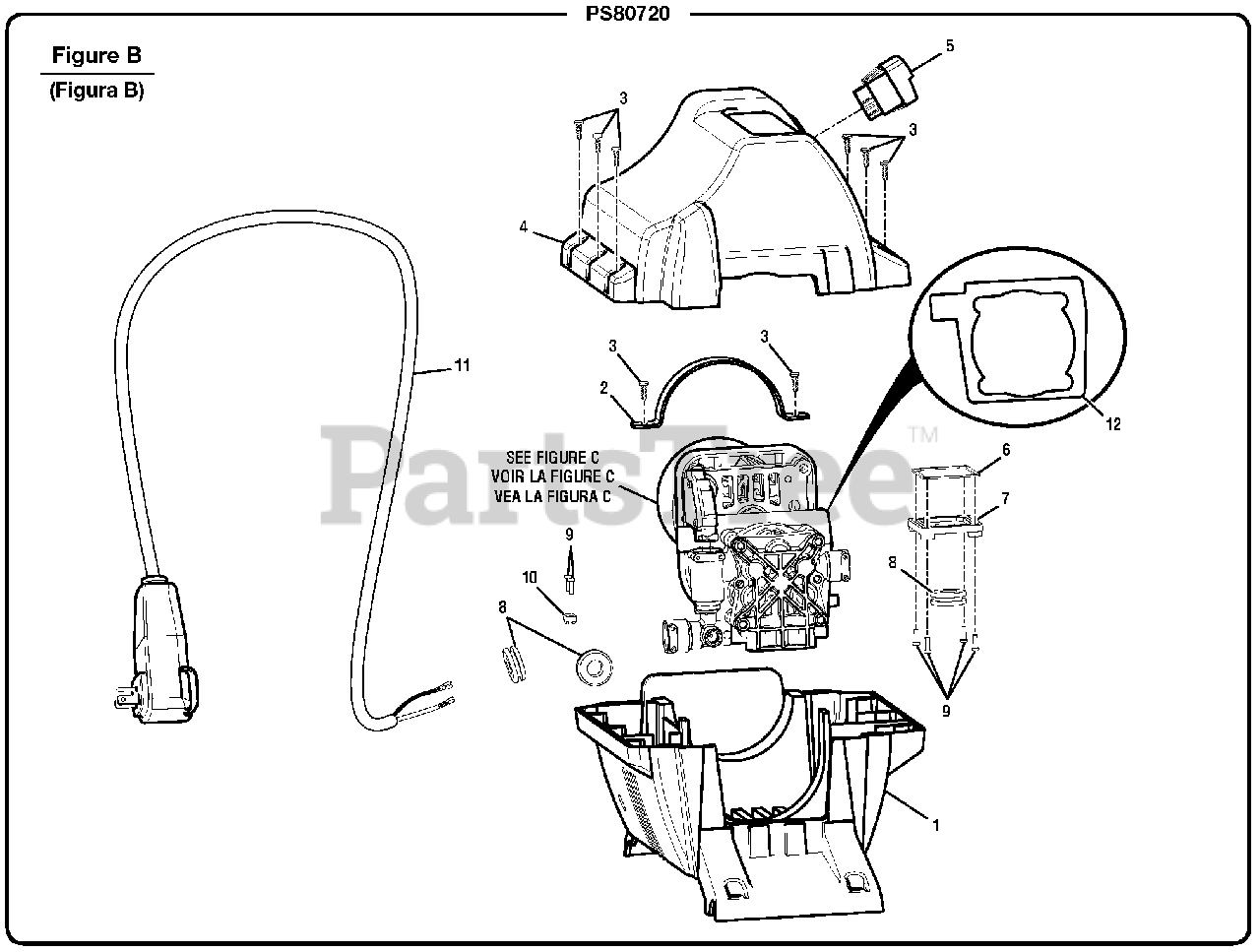

Figure B Parts Diagram

  • Title
1

Homelite 522038004

Bottom Motor Housing

$25.99

$

Usually ships in 3-7 days

0

2

$

$

Not available

3

Homelite 661403008

Screw (M4 x 12 mm, Pan Hd.)

$

$

Not available

4

Homelite 522032004

Top Motor Housing

$

$

Not available

$10.99

$

In Stock, only 1 left!

0

6

Homelite 570740016

Switch Cover Gasket

$

$

Not available

7

Homelite 570417002

Switch Cover

$

$

Not available

8

Homelite 561383002

Grommet (13 mm)

$

$

Not available

9

Homelite 660923006

Screw (M3 x 10 mm)

$

$

Not available

10

Homelite 522051003

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 290426012

Electrical Cord
(Superseded to 290426020)

$

$

Not available

12

$

$

Not available

Homelite 310459001

Complete Motor and Pump Assembly (Inc. Key Nos. 1-12)

Note: Not Shown

$

$

Not available
