PS 80544 D (090079434) - PowerStroke Pressure Washer, Rev 01 (2019-03) FIGURE A Parts Diagram

Pressure Washer, Rev 01

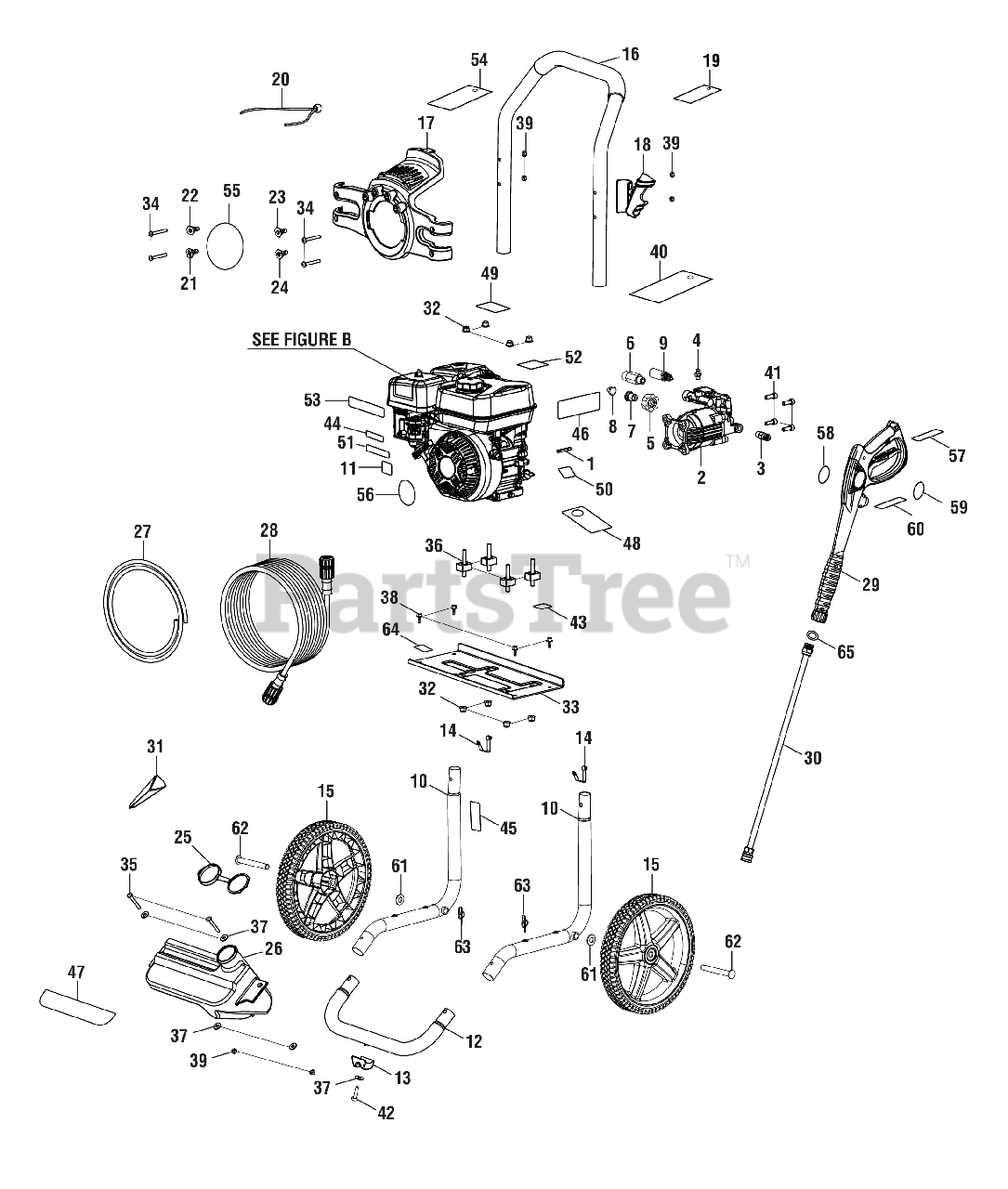

FIGURE A Parts Diagram

  • Title

1

Homelite 678041007

Output Shaft Key (3/16 in. x 40 mm)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 308653098

Pump

Note: (Inc. Key Nos. 4-9)

$270.99

$

Usually ships in 3-7 days

0

3

Homelite 678169004

Thermal Release Valve.

$

$

Not available

4

Homelite 308452002

Detergent Injector Assembly

$5.99

$

Usually ships in 3-7 days

0

5

Homelite 310993003

Inlet Filter Adapter/Brass Insert

$5.49

$

In Stock, only 1 left!

0

6

Homelite 308862003

Outlet Tube

$8.99

$

Usually ships in 3-7 days

0

7

Homelite 642058001

Inlet Filter Connector

$4.49

$

In Stock, only 1 left!

0

8

Homelite 308662001

Filter Screen (Pump Inlet)

$

$

Not available

9

Homelite 310924003

Unloader Valve Assembly

$30.99

$

Usually ships in 3-7 days

0

10

Homelite 310703027

Main Frame Assembly

Note: (Inc. Key No. 14)

$

$

Not available

11

Homelite 940647084

Choke/Fuel Valve Label

$

$

Not available

12

Homelite 310742026

Front Frame Assembly

$

$

Not available

13

Homelite 561307007

Rubber Foot

$

$

Not available

14

Homelite 308421004

Lock Button w/Spring Clip.

$

$

Not available

15

Homelite 308451060

Wheel (12 in.)

$

$

Not available

16

Homelite 308638042

Handle Assembly

$47.99

$

Usually ships in 3-7 days

0

17

Homelite 310673005

Hose and Nozzle Holder Assembly

Note: (Inc. Key No. 20)

$

$

Not available

18

Homelite 519313009

Trigger Handle Holder

$

$

Not available

19

Homelite 918016026

Quick Start Hangtag

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 310664001

Bungee Cord and Bead Assembly

$3.99

$

Usually ships in 3-7 days

0

21

Homelite 308697028

0deg Nozzle

$7.99

$

In Stock, only 1 left!

0

22

Homelite 308699028

25deg Nozzle

$7.99

$

In Stock, only 1 left!

0

23

Homelite 308700028

40deg Nozzle

$7.99

$

In Stock, only 1 left!

0

24

Homelite 308706013

Soap Nozzle (Blue)

$1.99

$

In Stock, Qty 5

0

25

Homelite 522032050

Soap Tank Cap

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 580875008

Soap Tank

$

$

Not available

27

Homelite 561399011

Chemical Siphon Tube
(Superseded to 561399003)

$2.99

$

Usually ships in 3-7 days

0

28

Homelite 308835006

High Pressure Hose (25 ft.)

$58.99

$

Usually ships in 3-7 days

0

29

Homelite 308760019

Trigger Handle Assembly

Note: (Inc. Key Nos. 59-60).

$46.99

$

Usually ships in 3-7 days

0

30

Homelite 308506014

Extension Wand

$

$

Not available

31

Homelite 519314001

Funnel

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 678774002

Lock Nut (M8 x 1.25 mm, Flange)

$

$

Not available

33

Homelite 638662033

Engine Plate

$

$

Currently unavailable

34

Homelite 661834008

Bolt (M6 x 48 mm, Button Hd.)

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 661503015

Screw (M6 x 1 x 48 mm, T30 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 570554005

Engine Isolator

$

$

Not available

37

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

38

Homelite 661505020

Flange Bolt (M6 x 1 x 16 mm, Hex Hd.)

$

$

Not available

39

Homelite 678610006

Lock Nut (M6 x 1)

$

$

Not available

40

Homelite 918016012

Danger Hang Tag

$

$

Not available

41

Homelite 660739002

Screw (5/16-24 x 23 mm, Hex Soc. Cap Hd.)

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 660224009

Screw (M6 x 1.25in., T30 Torx Pan Hd.)

$

$

Not available

43

Homelite 940871010

Oil Fill Location Label

$

$

Not available

44

Homelite 940851483

Choke Label

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 940947006

Combustion Label (English/Spanish)

$2.99

$

Usually ships in 3-7 days

0

46

Homelite 940894022

Danger Label

$

$

Not available

47

Homelite 940851510

Detergent Tank Label

$1.49

$

Usually ships in 3-7 days

0

48

Homelite 940889002

Hangtag (Oil Dipstick)

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 940872003

No E85 Label

$1.99

$

In Stock, only 2 left!

0

50

Homelite 940851485

Engine Switch Label

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 940851484

Fuel Valve Label

$1.99

$

Usually ships in 3-7 days

0

52

Homelite 940851518

Hot Surface and Exhaust Label

$1.49

$

Usually ships in 3-7 days

0

53

Homelite 941486002

Warning Label (Inquiries)

$2.49

$

Usually ships in 3-7 days

0

54

Homelite 961039005

Nozzle Instructions Hangtag

$

$

Not available

55

Homelite 940851512

Performance Label

$1.49

$

Usually ships in 3-7 days

0

56

Homelite 940851511

Recoil Label

$1.49

$

Usually ships in 3-7 days

0

57

Homelite 940654228

Label (Trigger Handle Warning, French & Spanish)

$2.99

$

Usually ships in 3-7 days

0

58

Homelite 940786044

Powerstroke Trigger Wand Logo Label

$1.99

$

Usually ships in 3-7 days

0

59

Homelite 940654084

Label (Trigger Handle Warning, English)

$2.99

$

In Stock, only 1 left!

0

60

Homelite 940786047

Trigger Handle Specifications Label

$2.49

$

Usually ships in 3-7 days

0

61

Homelite 638275002

Washer (1/2 in.)

$1.99

$

In Stock, only 1 left!

0

62

Homelite 620599034

Axle

$3.99

$

In Stock, only 1 left!

0

63

Homelite 678899006

Hitch Pin
(Superseded to 678899001)

$

$

Not available

64

Homelite 940676032

Data Warnings Label (English/Spanish)

$

$

Not available

65

Homelite 570742072

O-Ring (9.5 x 2.65, NBR Shore A 90)

$3.49

$

In Stock, Qty 6

0

Homelite 120968045

High Altitude Kit (Ducar 212cc) (2000-7000 ft., Not Included)

Note: Not Shown

$12.99

$

Usually ships in 3-7 days

0

Homelite 991000839

O-Ring Kit Insert Sheet

Note: Not Shown

$

$

Not available

Homelite 995000729

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 995000730

Quick Start Guide

Note: Not Shown

$1.49

$

Usually ships in 3-7 days

0
